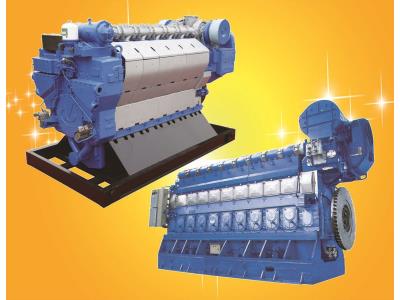

3240 series diesel engine and gensets
Inquire NowDescription
The 3240 Series Diesel Engines and Gensets represent a pinnacle of engineering excellence, brought to life through a collaboration with MAN Diesel, a leader in marine diesel technology. These engines are designed for high performance, boasting strong dynamic capabilities while optimizing fuel efficiency and reducing emissions. The 3240 Series features a range of models, including the 6L32/40 and 12V32/40, each engineered to deliver exceptional reliability and safety, making them ideal for various applications. With a focus on environmental protection, these engines are built to meet stringent standards, ensuring a greener choice for power generation.
Specifications
| Engine Series | Engine Model | Fuel Injection System | Cylinders & Arrangement | Cylinder Bore (mm) | Piston Stroke (mm) | Power Factor (kW) | RPM (r/min) | Total Piston Displacement (L) | Fuel Consumption Rate (g/kW.h) | Lub. Oil Consumption (g/kW.h) | Oil Pan Capacity (L) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 32/40 (3000-9000KW) | 6L32/40 | High-voltage common rail ECU electronic control jet | 6 cylinders, in-line | 320 | 400 | 3000 | 750/720 | 193.02 | ≤186 | ≤0.5 | 48 |
| 7L32/40 | 7 cylinders, in-line | 3500 | 225.19 | ||||||||
| 8L32/40 | 8 cylinders, in-line | 4000 | 257.36 | ||||||||
| 9L32/40 | 9 cylinders, in-line | 4500 | 289.53 | ||||||||
| 12V32/40 | 12 cylinders, V type | 6000 | 386.04 | ≤184 | 48.52 | ||||||
| 16V32/40 | 16 cylinders, V type | 8000 | 514.72 | ||||||||
| 18V32/40 | 18 cylinders, V type | 9000 | 579.06 |
| Genset Series | Genset Model | Engine Model | Alternator Model | Power (kW) | RPM (r/min) | Voltage (V) | Frequency (Hz) | Power Factor | Genset Dimension (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 320 (2895-8730KW) | 2895GF | 6L32/40 | The standard configuration is CSIC TFC4 series, which can be selected according to customers’ requirements | 2895 | 750/720 | 6300V/10500V/13800V | 50/60 | 0.8 | 9755 × 2625 × 4510 | 75000 |
| 3380GF | 7L32/40 | 3380 | 10285 × 2625 × 4510 | 79000 | ||||||
| 3860GF | 8L32/40 | 3860 | 11035 × 2710 × 4780 | 87000 | ||||||
| 4345GF | 9L32/40 | 4345 | 11565 × 2710 × 4780 | 91000 | ||||||
| 5820GF | 12V32/40 | 5820 | 10690 × 3370 × 4795 | 98000 | ||||||
| 7760GF | 16V32/40 | 7760 | 12120 × 3500 × 5240 | 131000 | ||||||
| 8730GF | 18V32/40 | 8730 | 12750 × 3500 × 5240 | 139000 |
Additional Information
These engines and gensets are designed to meet the highest standards of performance and reliability, making them suitable for various industrial applications. Regular maintenance and adherence to operational guidelines will ensure longevity and optimal performance.
