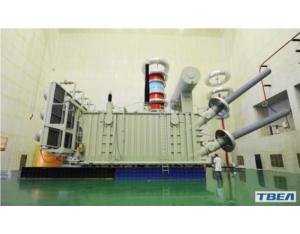

330kV~500kV Transformer

Inquire Now

Description

The 330kV~500kV Transformer is a cutting-edge DC Converter Transformer, specifically designed with the model ZZDFPZ-297600kVA/±500kV(Y). This transformer boasts the largest capacity among 750kV class products globally, making it a standout choice for high voltage applications. Engineered to operate effectively at altitudes exceeding 3000 meters, it features advanced parameters and performance metrics that lead the industry. Its design includes a complex structure with significant leakage of flux and a robust magnetic field. Additional highlights include strict temperature rise controls, an extended exterior insulation distance, low temperature rise, minimal loss, and reduced noise emission, ensuring both efficiency and reliability in demanding environments.

Specifications

Attribute Details
Model ZZDFPZ-297600kVA/±500kV(Y)
Operating Altitude Over 3000m
Capacity Largest in 750kV class
Leakage of Flux Large
Magnetic Field Strong
Temperature Rise Strictly controlled
Exterior Insulation Distance Long
Noise Level Low

Additional Information

  • Ideal for high voltage applications.
  • Designed for reliability and efficiency in challenging environments.
