36JXE30K/36ZY50 stepper motor
Inquire Now
36mm Planetary Gearbox
Permissible Load Range: 0.3N.m~3.0N.m
| TYPE | Ratedvoltage | No-loadspeed | No-loadcurrent | Ratedspeed | Ratedtorque | Outputpower | Ratedcurrent | Stalltorque | Stallcurrent |
| VDC | r/min | mA | r/min | mN.m | W | A | mN.m | A | |
| 36ZY50-2436 | 24 | 3600 | 100 | 3000 | 11 | 3.4 | 0.40 | 58 | 1.7 |
| 36ZY50-2442 | 24 | 4200 | 120 | 3450 | 12 | 4.2 | 0.43 | 52 | 1.6 |

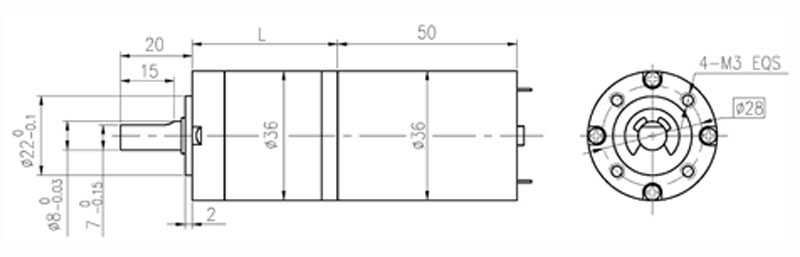

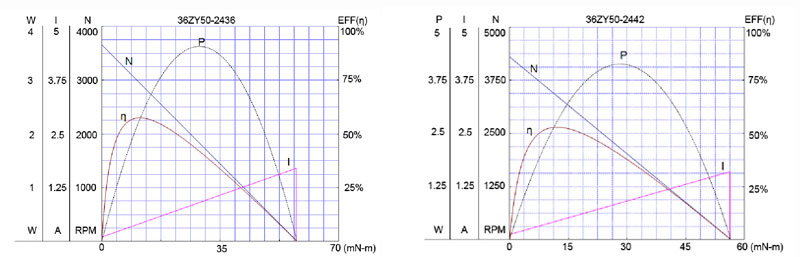

Gear Motor Technical Data
36ZY50-2436 DC Motor
| Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 | 369 | 516 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 |
| Length(L) mm | 26.5 | 26.5 | 33.6 | 33.6 | 33.6 | 40.5 | 40.5 | 40.5 | 40.5 | 47.4 | 47.4 | 47.4 | 47.4 |
| No-load speed r/min | 970 | 695 | 257 | 189 | 133 | 71 | 51 | 36 | 26 | 19 | 14 | 9.8 | 7.0 |
| Rated speed r/min | 809 | 579 | 214 | 158 | 111 | 59 | 42 | 30 | 22 | 16 | 11 | 8.1 | 5.8 |
| Rated torque N.m | 0.037 | 0.051 | 0.12 | 0.17 | 0.24 | 0.41 | 0.57 | 0.80 | 1.1 | 1.4 | 1.9 | 2.6 | 3 |
| N.m
Max. permissible load in a short time |
1.0 | 1.0 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9 | 9 | 9 | 9 |
36ZY50-2442 DC Motor
| Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 | 369 | 516 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 |
| Length(L) mm | 26.5 | 26.5 | 33.6 | 33.6 | 33.6 | 40.5 | 40.5 | 40.5 | 40.5 | 47.4 | 47.4 | 47.4 | 47.4 |
| No-load speed r/min | 1132 | 811 | 300 | 221 | 156 | 82 | 59 | 42 | 30 | 22 | 16 | 11 | 8.1 |
| Rated speed r/min | 930 | 666 | 246 | 182 | 128 | 68 | 49 | 35 | 25 | 18 | 13 | 9.3 | 6.7 |
| Rated torque N.m | 0.040 | 0.056 | 0.14 | 0.18 | 0.26 | 0.45 | 0.62 | 0.88 | 1.2 | 1.5 | 2.1 | 2.9 | 3 |
| N.m
Max. permissible load in a short time |
1.0 | 1.0 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9 | 9 | 9 | 9 |
