Description

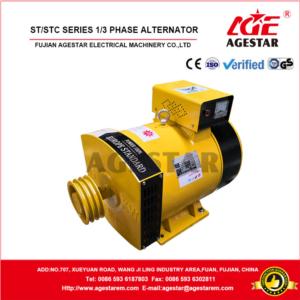

The 3kva alternator is a robust power generating unit primarily designed for small capacity applications. It efficiently supplies electricity for lighting on ships and powers household electric devices in towns and villages. Engineered with a drip-proof, salient pole rotating field, this self-excitation and constant voltage alternator is constructed using high-quality electromagnetic and electrical materials.

Featuring Class E (or B) insulation for the stator and Class B for the rotor, these alternators not only excel in functionality but also boast an attractive appearance. Their consolidated construction ensures easy maintenance, adhering to IEC standards. Suitable for use in Australia, Europe, America, and beyond (with model B end covers), the alternators are equipped with a harmonic wave self-excitation constant voltage system and automatic voltage control for reliability and excellent dynamic performance.

Operating at voltages of 230V or 115V (with options for 240V or 120V), and frequencies of 50Hz or 60Hz, the 3kva alternator is designed for continuous duty. It can be coupled directly with a prime mover or via a V-belt, accommodating a 5% change in speed to maintain satisfactory constant voltage performance across load variations from 0-100%.

Specifications
