3ZT FIELD CULTIVATOR
Inquire NowDescription

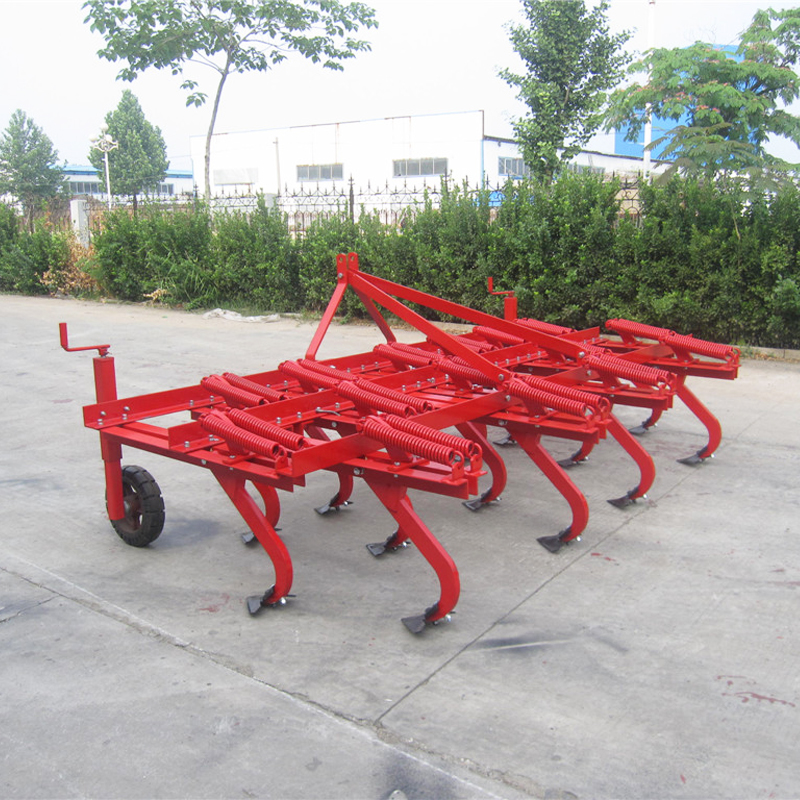

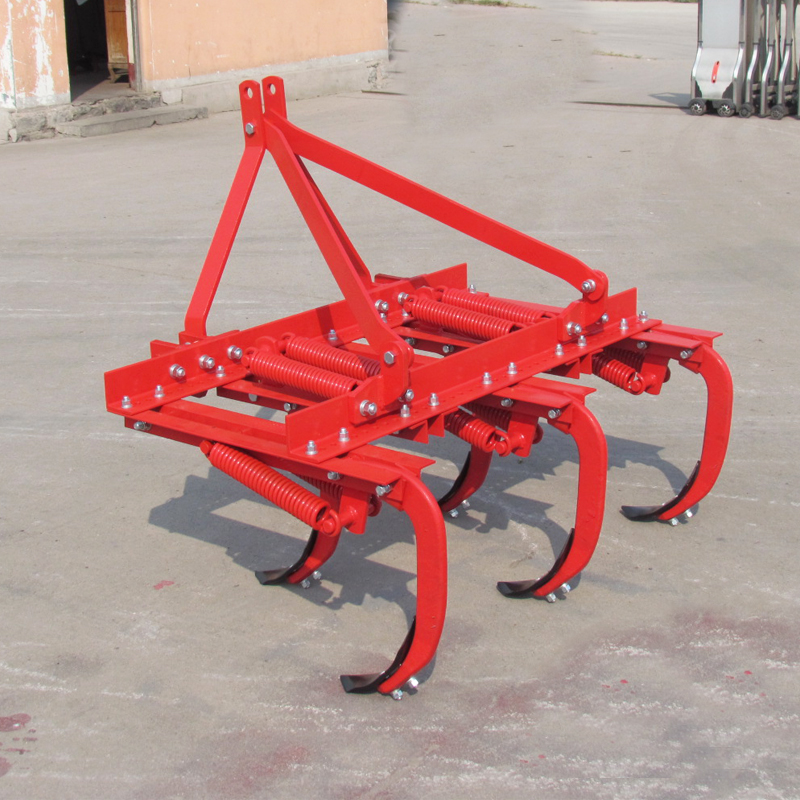

The 3ZT Field Cultivator is designed for efficiency and versatility in intensive farming operations. This robust machine features convenient space and depth adjustment capabilities, making it easy to adapt to various agricultural requirements. Its durable structure ensures longevity, while user-friendly design allows for straightforward maintenance. The cultivator is equipped with a double spring tension device that enables the plow tip to automatically bounce up when encountering obstacles, quickly returning to its original position to protect the plow tip. Additionally, the cultivator can accommodate two types of plough tips—deep-loosening and loosening shovels—facilitating a range of agricultural activities such as middle tillage, soil loosening, moisture conservation, and weeding.
Specifications
| Model | No. of Tine | Working Depth (mm) | Working Width (mm) | Matched Power (hp) | Weight (kg) |
|---|---|---|---|---|---|
| 3ZT-5 | 5 | 200-250 | 1200 | 30-40 | 200 |
| 3ZT-7 | 7 | 200-250 | 1500 | 50-65 | 255 |
| 3ZT-9 | 9 | 200-250 | 2100 | 60-80 | 315 |
| 3ZT-11 | 11 | 200-250 | 2850 | 60-80 | 370 |
| 3ZT-15 | 15 | 200-250 | 3000 | 80-110 | 520 |
Additional Information
- Features double spring tension device for enhanced durability.
- Automatically adjusts to obstacles during operation.
- Versatile for multiple agricultural applications.
