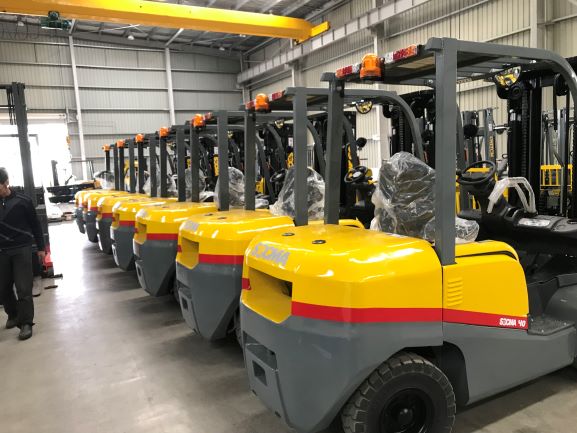

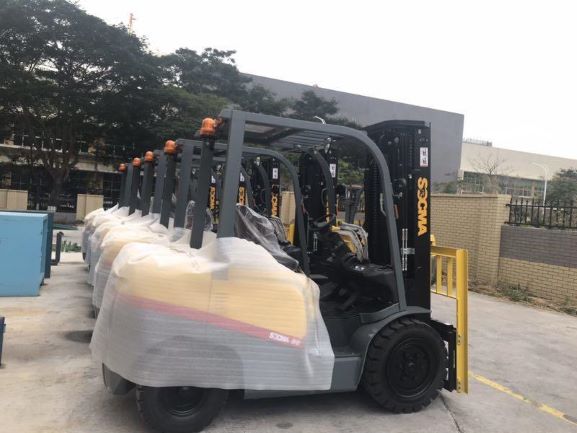

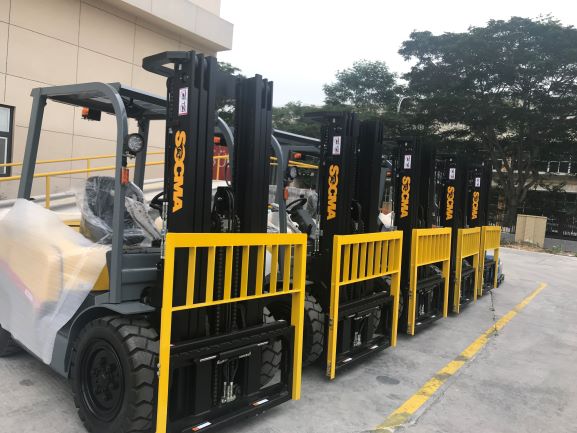

4 Ton Diesel Small Forklift Attachment Paper Roll
Inquire NowDescription
Introducing the revolutionary 4 Ton Diesel Small Forklift Attachment designed specifically for handling paper rolls. This innovative equipment marries high efficiency and energy-saving capabilities, catering to the evolving needs of managers, drivers, and the materials they handle. With a commitment to operational capacity, safety, and reliability, this forklift is engineered for excellence.
The advanced hydraulic technology incorporated in this model enhances its lifting function, ensuring that tasks are completed swiftly and safely. Noteworthy features include a uniquely improved uploading system, a well-designed cab, and an ergonomic operating lever, all aimed at providing the utmost comfort and efficiency for operators.
Highlighted features include:
- Removable side cover for easier inspection and repairs.
- Integrated control box for streamlined maintenance.
- Enhanced cooling effect using aluminum heat sinks.
- Superior noise reduction with a large double muffler.
- Comfortable adjustable suspension seat reducing fatigue during long operations.
- Increased step area for easy entry and exit.
- Enhanced safety features to prevent accidental slips.
- Embedded LCD instrument for operational control.
- Advanced braking system for added safety.
- Unique design allowing for optimal visibility and protection.
Specifications
| Model | Unit | FD40T |
|---|---|---|
| Specifications | Power Unit | Diesel |
| Operator Type | Driver/seat | |
| Transmission Box Type | Electronic hydraulic transmission | |
| Rated Capacity | 4000 kg | |
| Load Center | 500 mm | |
| Max. Lifting Height | 3000 mm | |
| Tire Type | Solid Tyre | |
| Front Tire Number | 2 | |
| Rear Tire Number | 2 | |
| Front Tire Size | 250-15-16PR | |
| Rear Tire Size | 6.5-10-10PR | |
| Performance | Lifting Speed (Loaded) | 480 mm/s |
| Lifting Speed (Unloaded) | 520 mm/s | |
| Lowering Speed (Loaded) | 480 mm/s | |
| Lowering Speed (Unloaded) | 450 mm/s | |
| Max. Travelling Speed (Loaded) | 19 km/h | |
| Max. Travelling Speed (Unloaded) | 20 km/h | |
| Max. Gradeability (Loaded) | 21% | |
| Max. Drawbar Pull (Loaded) | 18 kn | |
| Mast Tilting Angle (Fwd/Bwd) | 6/12 deg | |
| Free Lifting Height | 150 mm | |
| Turning Radius | 2560 mm | |
| Dimensions | Overall Length (without fork) | 2820 mm |
| Overall Width | 1300 mm | |
| Overhead Guard Height | 2130 mm | |
| Fork Size (L×W×T) | 1220×150×50 mm | |
| Mast Height (Fork lowered) | 2140 mm | |
| Truck Weight | 5100 kg | |
| Fuel Tank Capacity | 70 L | |
| Engine Details |
Additional Information
Designed with operator comfort and safety in mind, this forklift is the ideal solution for handling heavy loads efficiently. Whether navigating tight spaces or lifting high stacks, its innovative features and thoughtful design promise to enhance productivity on-site.
