400G/200G QSFP-DD
Inquire NowDescription

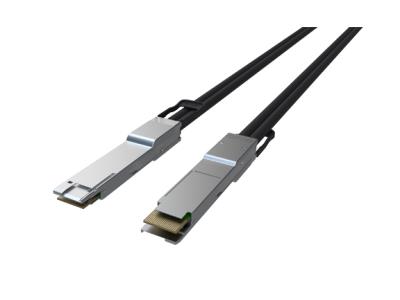

The Zhaolong QSFP-DD is a dual-density 8-channel cable assembly designed to meet the demands of modern high-speed data transfer. With compatibility for both 25G/channel NRZ and 50G/channel PAM4 signaling protocols, this assembly provides a remarkable total bandwidth of 200G and 400G. Specifically crafted for performance, it is ideal for a variety of applications including data centers, high-performance computing, and telecommunication equipment. Built to adhere to industry standards, this cable assembly ensures reliability and efficiency for current and future market requirements.
Specifications
| Type | Details |
|---|---|
| Product Category | QSFP-DD to QSFP-DD 400G DAC |
| Data Rate | NRZ 28G & 56G PAM-4 Per Channel Total Bandwidth 400 Gbps (8X 56G PAM-4) |
| Power Consumption | Low Power Consumption < 0.5W (Passive) |
| Supported Wire AWG | 32/30/28 |
| Support Length | Passive DAC: 0.5-3.0 Meter |
| EEPROM Content | Follows CMIS Standard and can be customized |
| LSZH Products | Available |
Additional Information
Features and Benefits
- Compliant with IEEE 802.3cd (400GBASE-CR8) Standard
- Compliant with IEEE 802.3bj (100GBASE-CR4) Standard
- Compliant with IEEE 802.3by (25 Ethernet) Standard
Target Market
- 400G/200G Ethernet
- 8x InfiniBand EDR, HDR
- Fibre Channel
- Storage, Switch, & RAID Systems
- High-Performance Computing (HPC)
- Network Interface Cards (NICs)
- Telecommunication Equipment
- Data Center and Enterprise Storage Systems
