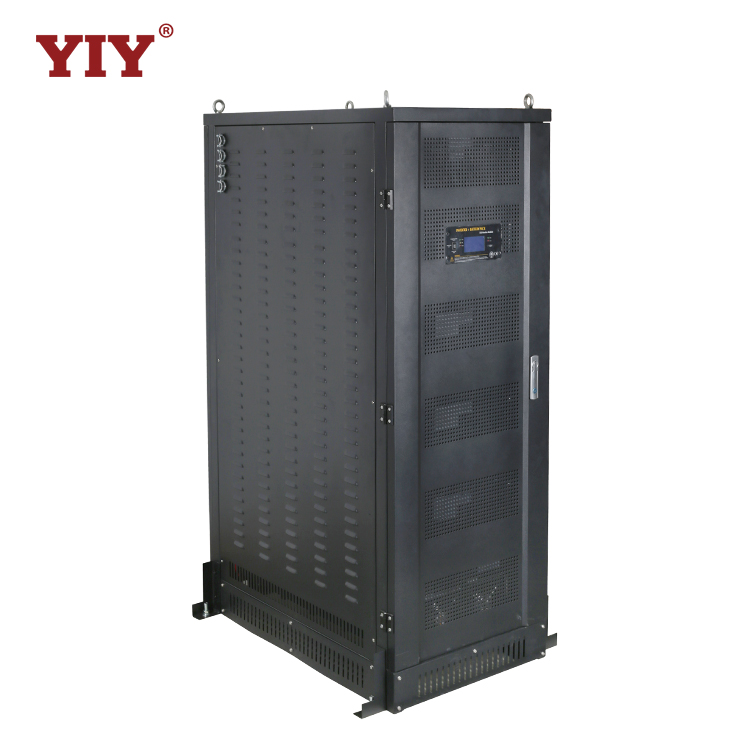

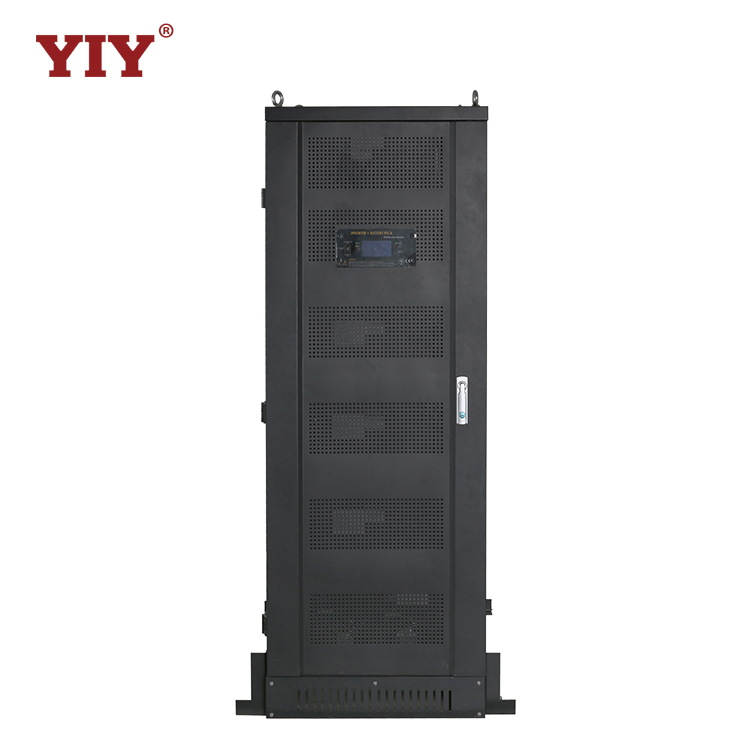

40kwh All-in-one energy storage system [40kwh lithium battery +15kw inverter +240A solar charger + BMS]
Inquire NowDescription
The 40kWh All-in-One Energy Storage System is designed to provide a clean and reliable energy solution for environments lacking electricity. This versatile system combines a 40kWh lithium battery, a 15kW inverter, a 240A solar charger, and a Battery Management System (BMS) into one integrated unit. Ideal for residential, commercial, and industrial applications, it not only offers backup power in critical sectors such as communications and data centers but also supports environmentally friendly solar energy utilization.
Key Features:
- Plug & Play setup for easy installation
- Real-time monitoring via an optional mobile app
- Efficient all-in-one design for optimal performance
- Standard 19-inch rack design compatible with all modules
- Built-in 15kW low frequency pure sine wave inverter and solar charger
- Long cycle life with a LiFePO4 battery, ensuring over 3500 cycles at 80% Depth of Discharge (DOD)
- Automatic calibration and active balancing technology in the BMS
Specifications
| ESS Basic Specification | ||
|---|---|---|
| No. | Model | ESS15048E800P4 |
| Battery Basic Specification | ||
| 1 | Battery Rated Voltage | 51.2vDC |
| 2 | Battery Rated Capacity | 800Ah |
| 3 | Battery Rated Energy | 40.96KWH |
| 4 | Battery Configuration | 8.2KWH * 5PCS |
| 5 | Battery Cell Quantity | 3.2v80Ah 160PCS |
| 6 | Rated Charge Voltage | 56.0vDC |
| 7 | Max Charge Voltage | 56.8vDC |
| 8 | Overcharge Protection | 58.4vDC |
| 9 | Rated Charge Current (total) | 400A |
| 10 | Max Charge Current (total) | 480A |
| 11 | Overcharge Protection Release | Restart |
| 12 | Charge Temp Range | 0~45℃ |
| 13 | Output Voltage Range | 40~56vDC |
| 14 | Rated Discharge Current (total) | 800A |
| 15 | Max Discharge Current (total) | 960A |
| 16 | Over Discharge Protection Release | Charging or Cut off loads and Restart |
| 17 | Discharge Temp Range | 0~45℃ |
| 18 | Overcharge Protection Release | Restart |
| 19 | Discharge Temp Range | -20~60℃ |
| 20 | Communication | RS485 for LCD monitor / CAN for PC monitor |
| Built-in Inverter Specification | ||
| No. | Model | HP15048R |
| 1 | INV Rated Power | 15KW |
| 2 | Output Waveform | Pure sine wave / Same as input (Bypass mode) |
| 3 | Efficiency | >88% (Peak) Inverter mode / >95% Line mode |
| 4 | Power Factor | 0.9-1.0 |
| 5 | INV Output Voltage | Single phase: 110v/120v/220v/230v/240v ±10% RMS Split phase: 110v(L-N)&220v(L-L) or 120v(L-N)&240v(L-L) ±10% RMS |
| 6 | INV Output Frequency | 50 / 60 ±0.3Hz |
| 7 | Typical Transfer Time | 4~6ms (typical) / 10ms (Max) |
| 8 | THD | < 3% |
| 9 | AC Input Range | 110v model: 96~135v (INV mode) / 80~135v (GEN mode) 220v model: 184~253v (INV mode) / 140~270v (GEN mode) |
| 10 | Max AC Charge Current | 140A |
| 11 | Battery Priority Function | Setting by SW5 on position 1 (inverter mode valid), AC automatic come in when battery voltage low alarm at 48vDC or 50vDC |
| Built-in MPPT Solar Charger | ||
| No. | Solar Charger | 60A * 4 |
| 1 | PV Power | 3.5KW * 4 |
| 2 | PV Input Groups | 4 |
| 3 | PV Input Range | 60-145vDC |
| 4 | MPPT Charging Voltage | 56.4v (Fast charging) / 54v (Float charging) |
| Size | ||
| Dimension (L*W*H) | 935*560*1760mm | |
| Weight | 650kg | |
Additional Information
Warranty: 3500 cycles or 3 years.
After-sales Service: Comprehensive support including timely feedback and maintenance for damaged parts.
