Description

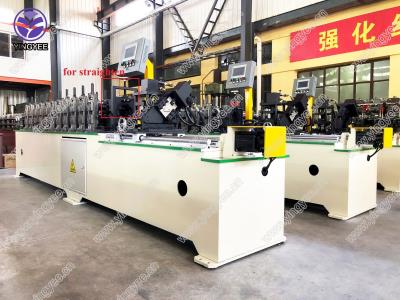

The 40m/min light keel roll forming machine is designed for high-efficiency production of various metal profiles, including L angles, omega, CU channels, and furring strips in diverse sizes. This advanced machine operates at a remarkable speed of 45 meters per minute, ensuring rapid and precise manufacturing. Its robust construction utilizes premium materials, making it suitable for industrial applications where quality and durability are paramount.
Specifications
| Attribute | Details |
|---|---|
| Speed | 45m/min (25m/min when punching) |
| Material | Galvanized strip |
| Material Thickness | 0.2 – 1mm |
| Shaft Diameter | 50mm |
| Shaft Material | 45# Steel |
| Roller Material | CR12 |
| Cutter Material | CR12 |
| Driven Way | Chain |

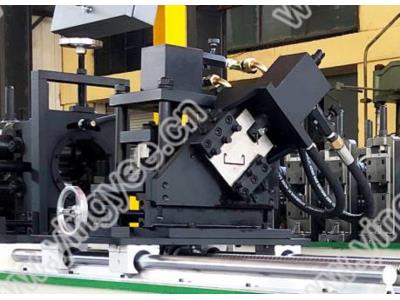

| Cutter Way | Servo motor, no stop cutting |
Additional Information

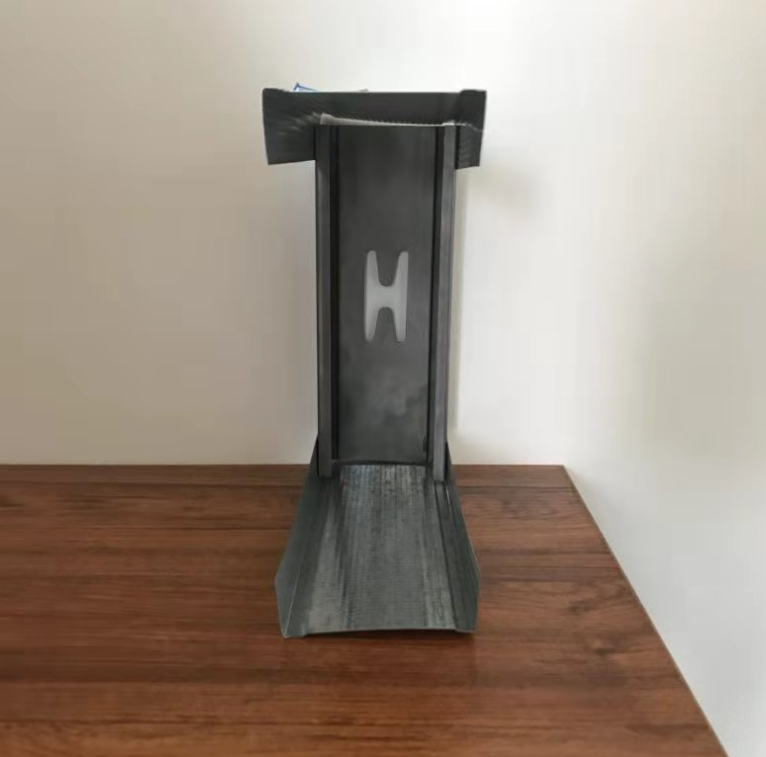

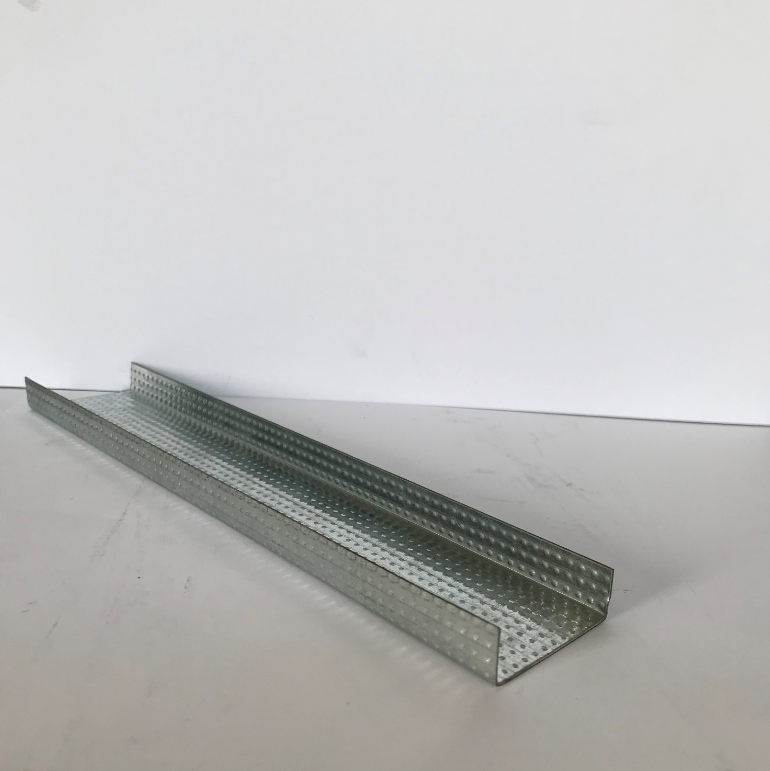

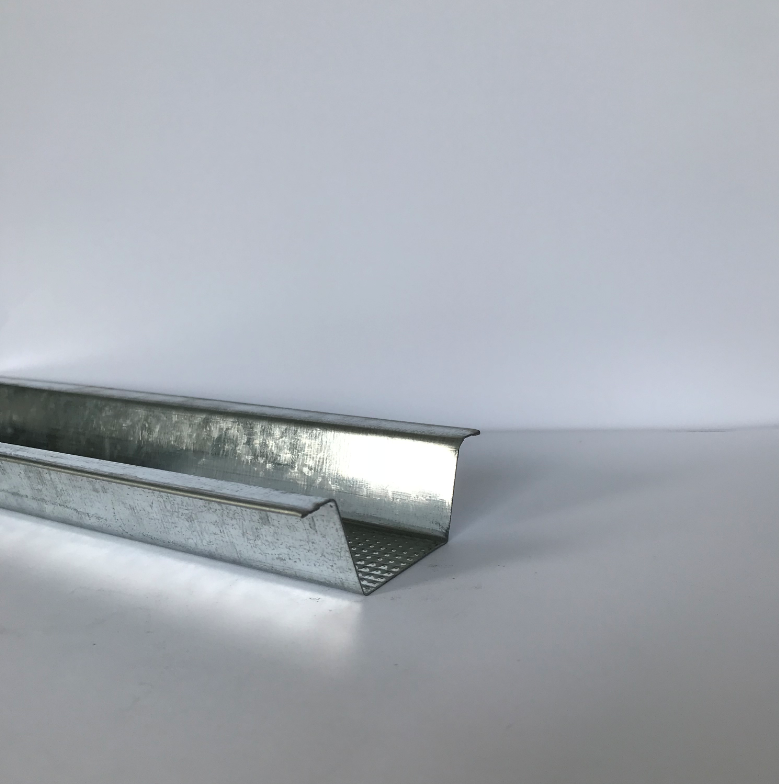

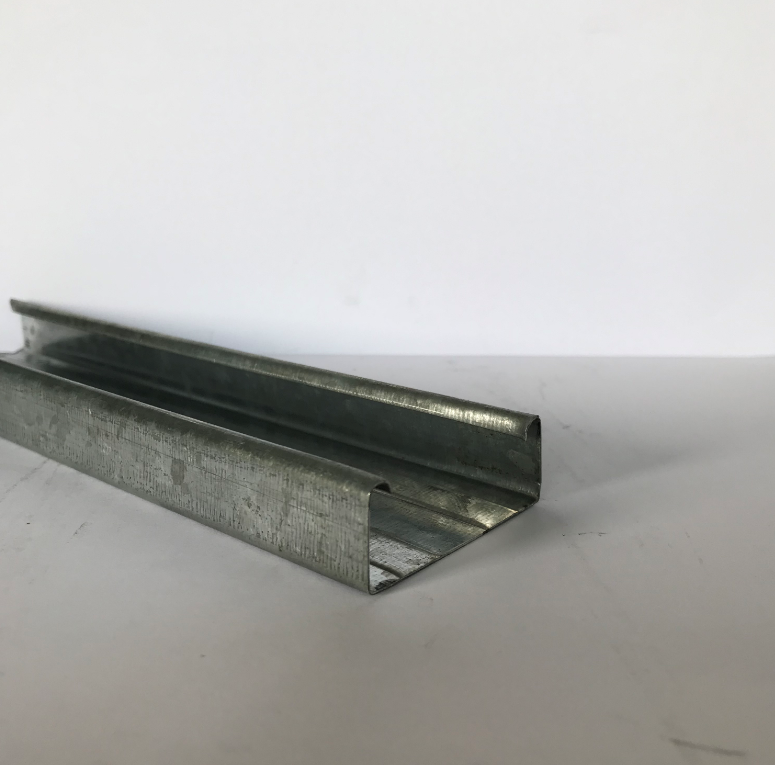

Final Products:

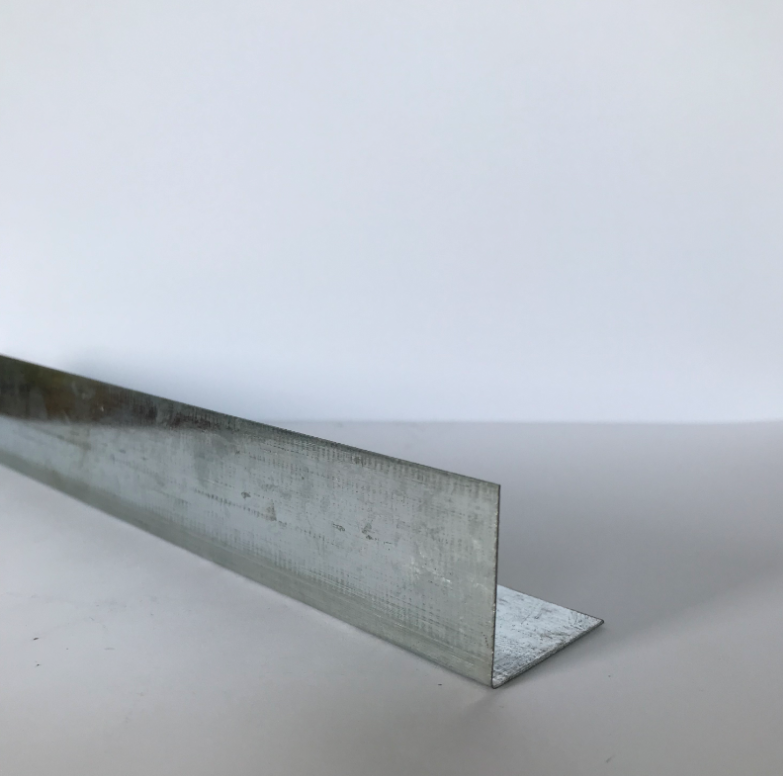

- Angle
- Omega
- CU型
- 38骨
- 50骨

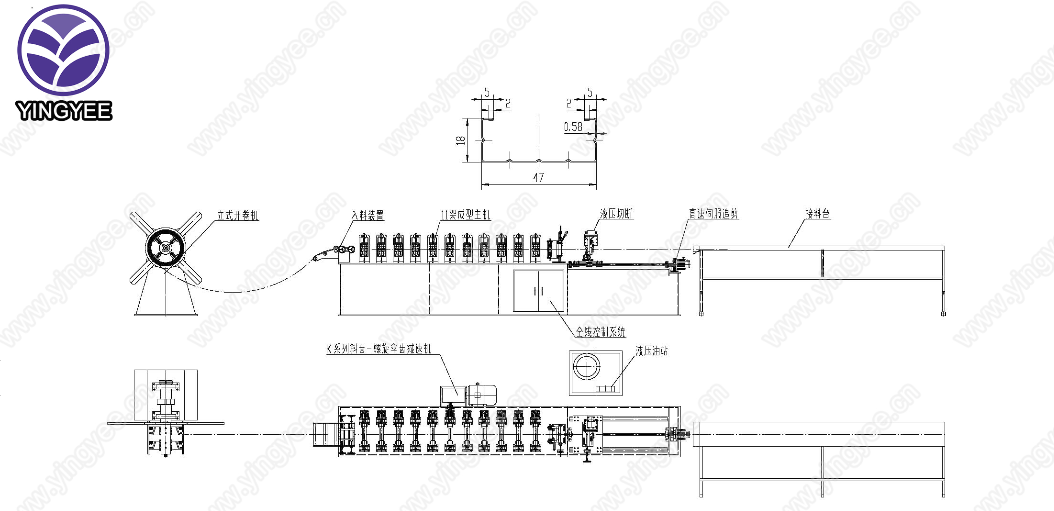

Technical Process:
