42 SERIES BLDC Motor
Inquire NowDescription
The 42 SERIES BLDC Motor is a high-performance brushless DC motor designed for applications requiring high torque and efficiency. With a maximum torque of up to 0.25 Nm and a wide speed range, this motor is perfect for various industrial and commercial uses. Its long lifespan and high efficiency make it a reliable choice for demanding environments, ensuring optimal performance over time.
Specifications
| Attribute | Details |
|---|---|
| Winding Type | Star |
| Hall Effect Angle | 120 degree electrical angle |
| Shaft Run Out | 0.025 mm |
| Insulation Class | Class B |
| Dielectric Strength | 500 VDC for one minute |
| Ambient Temperature | -20—+40℃ |
Electrical Specification
| Model | Voltage (V) | Rated Power (W) | No Load Speed (rpm) | Rated Torque (Nm) | Rated Current (A) |
|---|---|---|---|---|---|
| 42DMW41-2440 | 24 | 25 | 5000 | 0.063 | 1.7 |
| 42DMW51-2440 | 24 | 40 | 5000 | 0.096 | 2.4 |
| 42DMW61-2440 | 24 | 50 | 5000 | 0.125 | 3.5 |
| 42DMW81-2440 | 24 | 75 | 5000 | 0.18 | 4.6 |
| 42DMW101-2440 | 24 | 100 | 5000 | 0.25 | 6 |

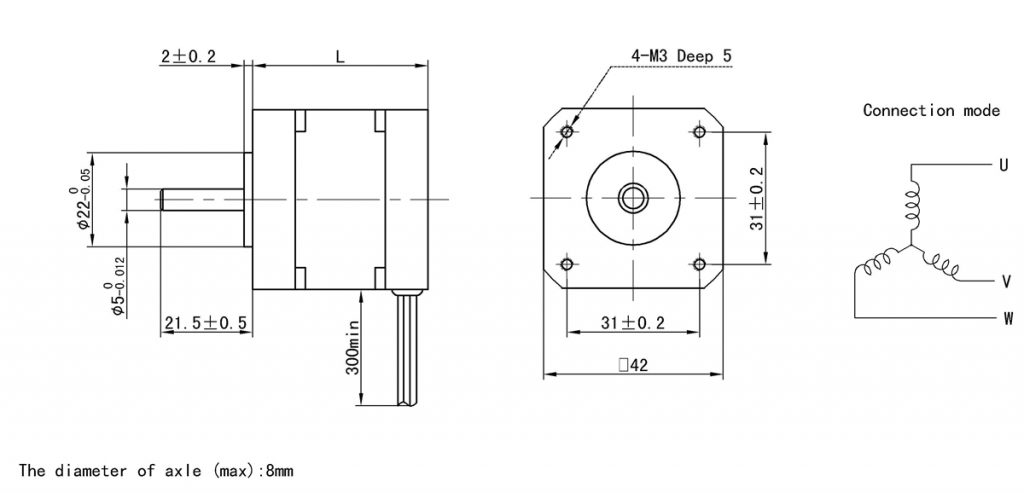

Wire Diagram
| Lead No. | Lead Color | Lead Gauge | Function |
|---|---|---|---|
| 1 | RED | 20AWG UL1569 | Phase U |
| 2 | YEL | 20AWG UL1569 | Phase V |
| 3 | BLA | 20AWG UL1569 | Phase W |
| 4 | RED | 26AWG UL1569 | +5V |
| 5 | BLU | 26AWG UL1569 | Hall A |
| 6 | GRE | 26AWG UL1569 | Hall B |
| 7 | WHI | 26AWG UL1569 | Hall C |
| 8 | BLA | 26AWG UL1569 | GND |
Additional Information
For optimal performance, ensure proper installation and maintenance of the motor. Regular checks on wiring and connections are recommended to avoid potential issues. The motor is designed to operate efficiently within the specified temperature range to enhance its longevity.
