4digits LED 7segment numeric display

Inquire Now

Description

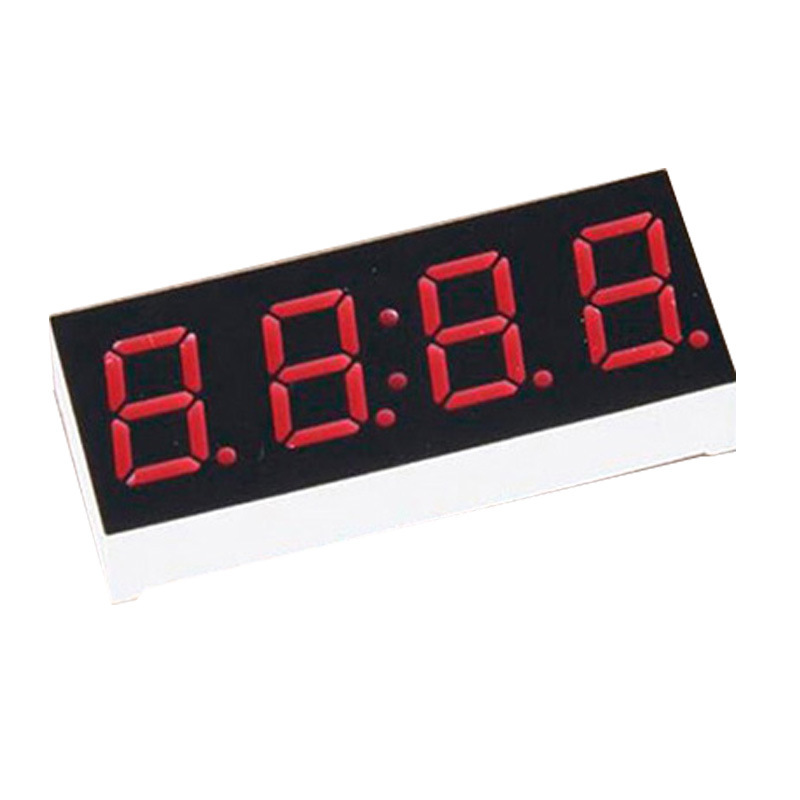

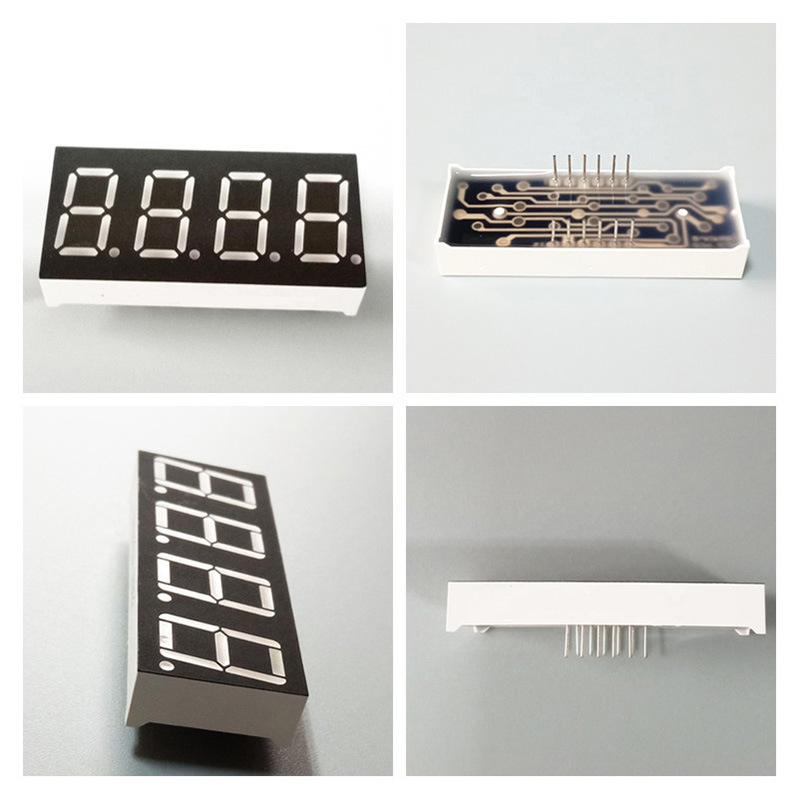

The 4-digit LED 7-segment numeric display is a versatile and reliable solution designed by Newlake Electronics. This display is engineered to bring numbers to life with vibrant colors and excellent visibility. Available in various digit heights ranging from 0.28 inches to 5 inches (or larger), it caters to diverse applications including audio equipment, electronic devices, household appliances, multimedia products, and bank exchange rate displays. The display is constructed using high-quality materials, ensuring durability and outstanding character appearance. With a wide selection of colors such as red, green, yellow, white, blue, and more, it offers flexibility for various design requirements.

Features:

  • RoHS compliance
  • Low power dissipation and low current operation
  • Luminous intensity compatible
  • Wide viewing angle
  • Long lifespan
  • Custom design available to meet individual requirements

Specifications

Description Parameter
Digit Height 0.28 Inch ~ 5 Inch (or bigger)
Digit Quantity 1 / 2 / 3 / 4 / 5 / 6 Digits
Emitting Color Red, Green, Yellow Green, Yellow, Amber, White, Blue…
Surface Color Black / Gray (White epoxy)
Epoxy Color Clear / Red / Milky / Blue / Green and more
Polarity Common Anode / Common Cathode
Operating Temperature -20ºC ~ 60ºC
Wave Length of LEDs Red: 620 ~ 625nm, Green: 517 ~ 520nm, Yellow: 587 ~ 589nm, Yellow Green: 570 ~ 573nm
Luminous Intensity Red: 90 ~ 120mcd, Green: 440 ~ 460mcd

Additional Information

More Options for 4 Digits Display:

Model Digit Height Screen Dimension Pin Qty Common Pins
WH02841 0.28″ 12
WH03641 0.36″ 12
WH04041 0.4″ 12
WH05641 0.56″ 12
WH08041 0.8″ 24
