4GL80 Reaper Head Machine
Inquire NowDescription

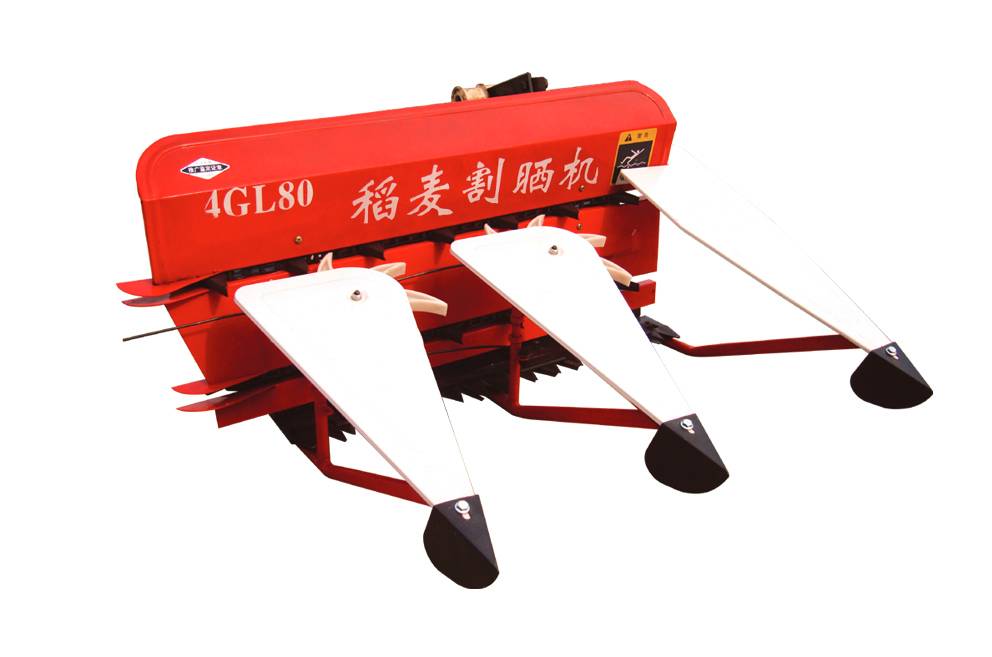

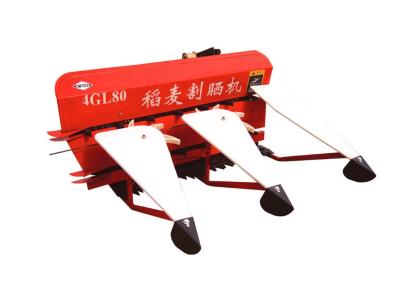

The 4GL80 Reaper Head Machine is a highly efficient tool designed for harvesting various crops including rice, wheat, sesame, soybean, and forage. Its compact size and lightweight design make it incredibly maneuverable, allowing for ease of operation in diverse terrains such as plains, hills, and narrow fields. This self-propelled reaper head is engineered to minimize fuel consumption while maximizing productivity, making it a labor-saving solution for farmers.
With a cutting width of 800 mm and a minimum cutting height of 30 mm, the 4GL80 ensures precise and effective harvesting. It is compatible with power tillers ranging from 3.5 to 4.5 kW, providing flexibility for different farming needs. The machine’s low stubble cutting capability enhances its efficiency, ensuring a cleaner field post-harvest.
Specifications
| Attribute | Details |
|---|---|
| Model | 4GL80 |
| Cutting Width (mm) | 800 |
| Minimum Cutting Height (mm) | ≥30 |
| Type of Placement | Sidewise & Banded Placed |
| Productivity (m²/h) | 1300-1700 |
| Matched Power (kW) | 3.5—4.5 kW power tiller |
| Net Weight (kg) | 60 |
| Gross Weight (kg) | 90 |
| Dimension (m) | 1.10 x 0.75 x 0.65 |
| 40HQ/40GP | 216/162 |
| 20GP | 75 |
Additional Information
For optimal performance, ensure that the 4GL80 Reaper Head is operated in suitable terrain and matched with the appropriate power tiller. Regular maintenance is recommended to keep the machine in peak condition.
