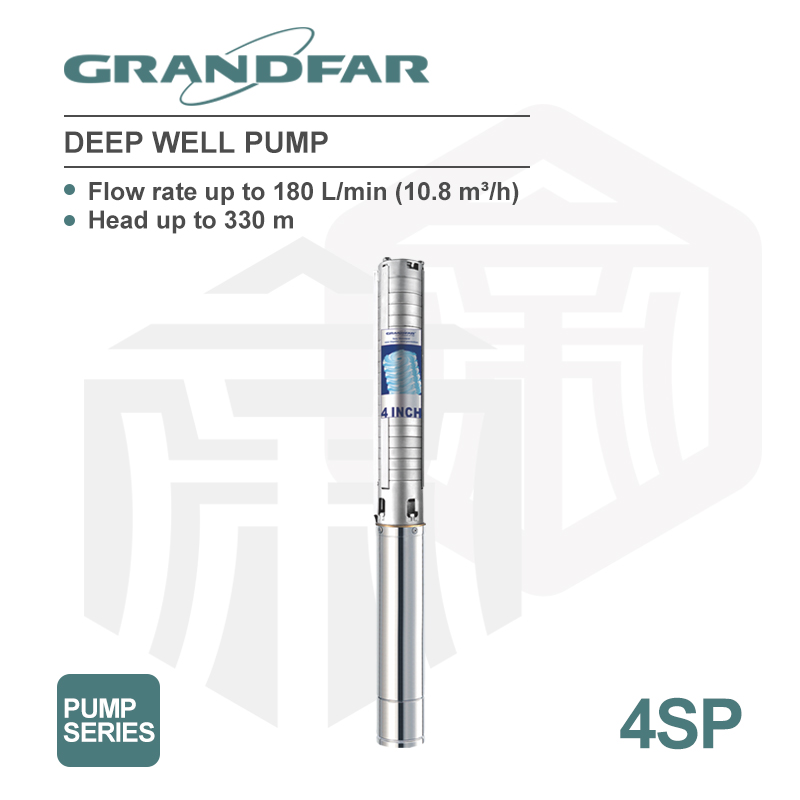

4SP DEEP WELL PUMP
Inquire NowDescription
The 4SP Deep Well Pump is engineered for high performance, capable of delivering a flow rate of up to 180 L/min (10.8 m³/h) and achieving impressive head heights of up to 330 meters. This robust pump is designed for a maximum immersion depth of 80 meters, making it ideal for various applications, including domestic, civil, and industrial uses. It efficiently handles clean water with a sand content of no more than 100g/m³, making it suitable for irrigation, water distribution in combination with pressure sets, washing plants, and pressure boosting for fire-fighting systems. Built with a durable stainless steel body, impeller, and diffuser, this pump promises reliability and longevity.
Specifications
| Attribute | Details |
|---|---|
| Flow Rate | Up to 180 L/min (10.8 m³/h) |
| Maximum Head | Up to 330 m |
| Maximum Immersion Depth | 80 m |
| Liquid Temperature | +35 °C |
| Ambient Temperature | Up to +40 °C |
| Minimum Well Diameter | 4″ |
| Construction | Stainless Steel |
| Motor Type | Single-phase 220V/240V-50Hz or Three-phase 380V/415V |
| Insulation Class | Class B |
| Protection Rating | IP X8 |
Additional Information
Equipped with a condenser thermal overload protector built into the copper winding and a start control box, the 4SP Deep Well Pump is designed for high efficiency and reliability. It is an essential tool for various applications, ensuring effective water management in multiple settings.
