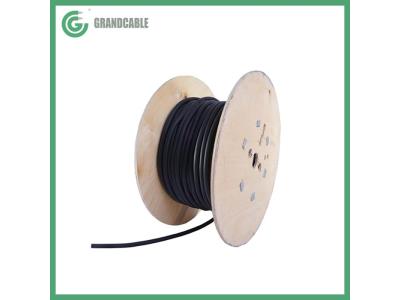

4X1.5mm2 Flame Retardant Copper Tape Screen Steel Tape Armored PVC Sheathed Control Cable
Inquire NowDescription
The 4X1.5mm² Flame Retardant Copper Tape Screen Steel Tape Armored PVC Sheathed Control Cable is engineered for supervisory electrical equipment and station control circuits. Its versatile design allows for both indoor and outdoor installations in wet or dry locations, accommodating various environments such as conduits, ducts, trenches, and cable trays. Featuring metallic armor, this cable provides exceptional mechanical protection, making it ideal for demanding applications.
Application: Perfect for supervisory electrical equipment and station control circuits.
Standards: Complies with IEC 60228 and IEC 60227.
Construction:
- Conductor: Concentric stranded annealed copper (flexible or solid optional)
- Conductor Size: 1.5~10 mm²
- Insulation: PVC (Polyvinyl Chloride)
- Screen: Copper tape
- Inner Sheath: PVC (Polyvinyl Chloride)
- Armor: Galvanized Steel Tape
- Sheath: Flame retardant PVC (Polyvinyl Chloride)
Specifications
| Section | Conductor Class | Insulation Thickness (mm) | Screen Tape Thickness (mm) | Armor Thickness (mm) | Sheath Thickness (mm) | Overall Diameter (mm) | Cable Weight (kg/km) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 14×0.75 | 1 | 0.6 | 0.8 | 1×0.05 | 2×0.2 | 1.5 | 1.8 | 16.20 | 18.60 | 430 | 523 |
| 14×1 | 1 | 0.6 | 0.8 | 1×0.05 | 2×0.2 | 1.5 | 1.8 | 16.90 | 19.30 | 485 | 581 |
| 14×1.5 | 1 | 0.7 | 0.8 | 1×0.05 | 2×0.2 | 1.5 | 1.8 | 18.90 | 20.40 | 617 | 681 |
Additional Information
Ensure proper installation practices to maintain the integrity and performance of the cable. It is crucial to adhere to the specified standards during installation to guarantee safety and reliability.
