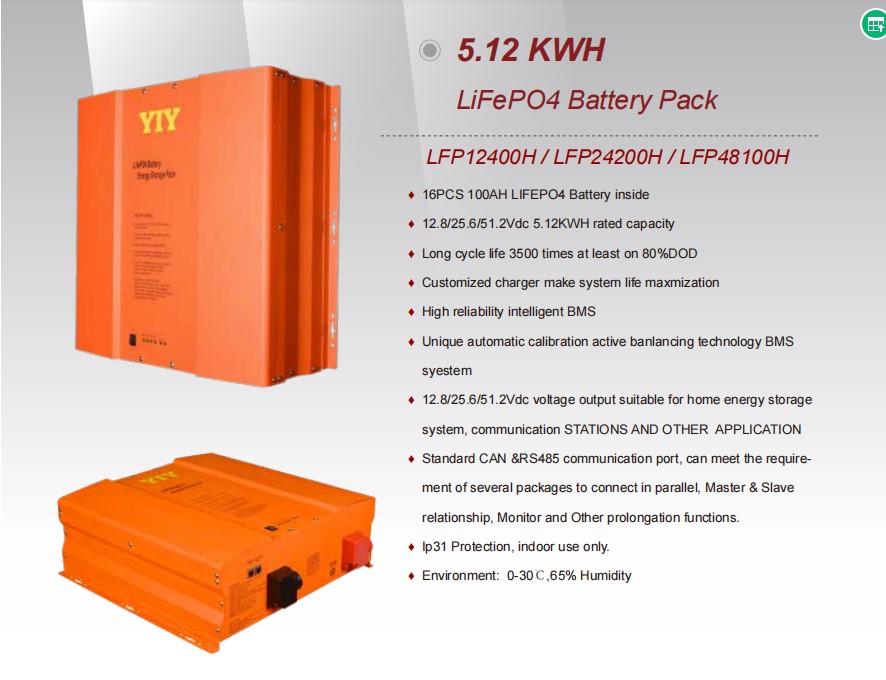

5.12kwh 12.8V 400AH /25.6V 200AH /51.2V 100AH LiFePO4 Battery Pack
Inquire NowDescription
The 5.12kWh 12.8V 400AH / 25.6V 200AH / 51.2V 100AH LiFePO4 Battery Pack is a cutting-edge energy storage solution designed for various applications, ranging from home energy systems to commercial and industrial backup. This robust battery pack features 16PCS of 100AH LiFePO4 batteries, providing a rated capacity of 5.12KWH at multiple voltage outputs: 12.8V, 25.6V, and 51.2V. Engineered for longevity, this battery offers an impressive cycle life of at least 3500 cycles at 80% Depth of Discharge (DOD), ensuring reliability and efficiency in energy storage.
Equipped with a high reliability intelligent Battery Management System (BMS), the battery features unique automatic calibration and active balancing technology, maximizing system life and performance. Its design includes standard CAN & RS485 communication ports, allowing for parallel connections and enhanced monitoring capabilities. This battery is ideal for indoor use, with an IP31 protection rating, and operates efficiently in environments ranging from 0-30℃ with up to 65% humidity.

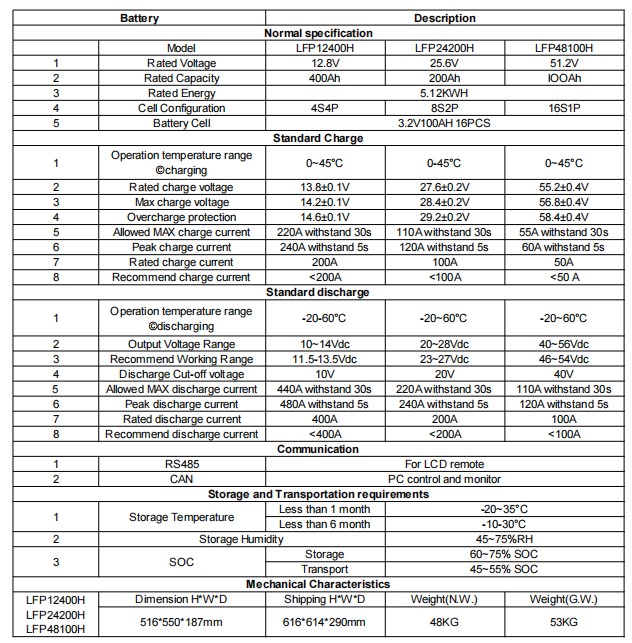

Specifications
| Specifications | Details |
|---|---|
| Rated Capacity | 5.12 KWH |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Voltage Outputs | 12.8V, 25.6V, 51.2V |
| Cycle Life | 3500 cycles at 80% DOD |
| Communication Ports | CAN & RS485 |
| Protection Rating | IP31 (Indoor use only) |
| Operating Environment | 0-30℃, 65% Humidity |
Additional Information

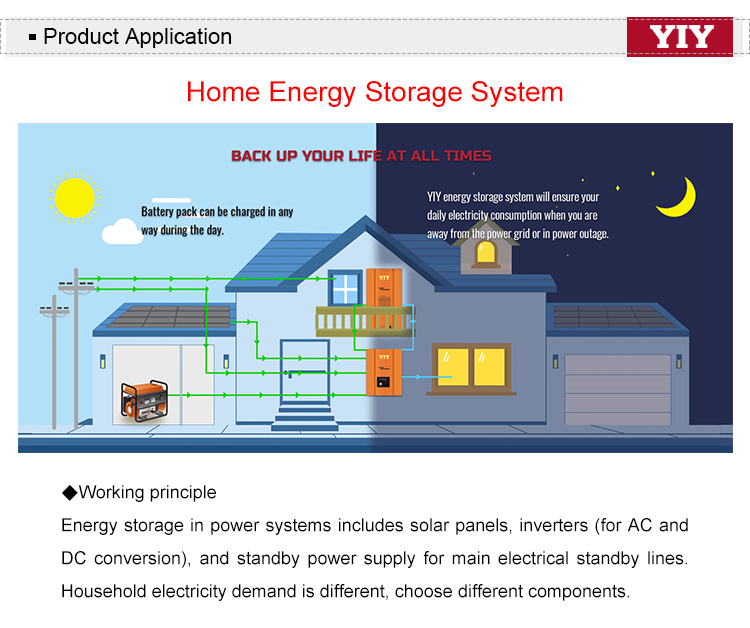

- Applications include:
- Backup energy for homes and businesses
- Solar power systems
- Communications industry
- Data centers
- Independent power supply for vehicles and yachts
- Mobile app available for real-time monitoring of energy storage system status.
- Passed CE, TUV, UN38.3, and MSDS certification tests.
