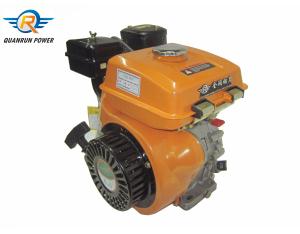

5.5HP/170FB big output diesel engine
Inquire NowDescription
The 5.5HP/170FB big output diesel engine from QUANRUN is designed for exceptional performance and reliability. This engine features a nearly-ideal combustion chamber design paired with a new type muffler, resulting in remarkably low operating noise. Its strict equilibrium configuration minimizes vibrations, ensuring a balanced power output. With multiple power transmission methods, it provides versatile configuration options to meet various operational needs.
Engineered for fuel efficiency, the ingenious injection system maximizes the effectiveness of every drop of fuel. The smart recoil type starting mechanism allows for quick and portable operation. Its high-strength aluminum body design contributes to a compact form, making it lighter than its competitors while maintaining robust reliability, thanks to its durable crankshaft materials.
Specifications
| Model | Engine Type | Bore × Stroke |
|---|---|---|
| QR170FB | Single cylinder, tilt, 4-stroke, swirl chamber, forcible air-cooled | 70 × 60 (mm) |
| Displacement | Engine Speed | Max. Output Power |
| 231cc | 3000/3600 r/min | 4.46 kW (6.07 HP) |
| Rated Output Power | Fuel Consumption | Transmission Type |
| 4.05 kW (5.5 HP) | ≤ 280 g/kW·h | Crankshaft transmission |
| Starting Method | Lubrication Model | Fuel Tank Capacity |
| Recoil/Electric start | Splashing lubrication | 3L |
| Lube Capacity | Dimension (L×W×H) | Net Weight (recoil start) |
| 0.8L | 426 × 335 × 388 (mm) | 23 kg |
