50G SFP56
Inquire NowDescription

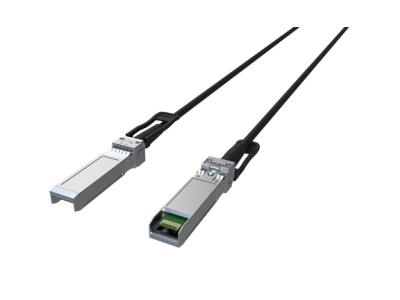

The Zhaolong SFP56 (Small Form-Factor 56) Copper-assembly product is expertly engineered to cater to the demanding requirements of data centers, networks, and high-performance computing applications. This innovative solution features a high-density cable interconnection system, delivering a remarkable transmission rate of 56G PAM-4. Whether you’re looking to enhance your network infrastructure or optimize data transfer speeds, the SFP56 is an ideal choice.
Specifications
| Attribute | Details |
|---|---|
| Product Type | SFP56 to SFP56 56G DAC |
| Alternative Type | SFP56 to SFP56 ACC Redriver Cable |
| Standard Compliance | SFF 8402, IEEE 802.3cd, IEEE 802.3by |
| Data Rate | 50 Gbit/s (PAM-4) |
| Power Consumption | < 0.5W (Passive) |
| Support Wire AWG | 32/30/28/26 |
| Passive DAC Length Support | 0.5 – 3.5 Meter |
| Redriver ACC Length Support | 1.0 – 6.0 Meter |
| Custom EEPROM Signature | Yes |
Additional Information
Target Market:
- 50G/25G Ethernet
- 1x InfiniBand QDR, FDR, EDR
- Fibre Channel
- Storage, Switch, & RAID Systems
- High-Performance Computing (HPC)
- Network Interface Cards (NICs)
- Telecommunication Equipment
- Data Center and Enterprise Storage Systems
