55 gallon/ 200L Streel oil drum/barrel making machine
Inquire NowDescription

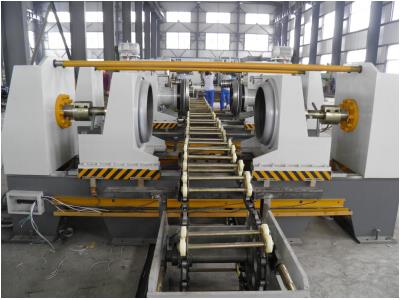

Introducing our advanced steel drum production line, designed for efficient and versatile manufacturing of steel drums. This high-quality machinery is capable of producing drums with capacities ranging from 100 to 220 liters. With multiple speed options available, including low-speed (1-2 pcs/min), medium-speed (5-6 pcs/min), and high-speed (7-8 pcs/min) production lines, this system can cater to various production needs.

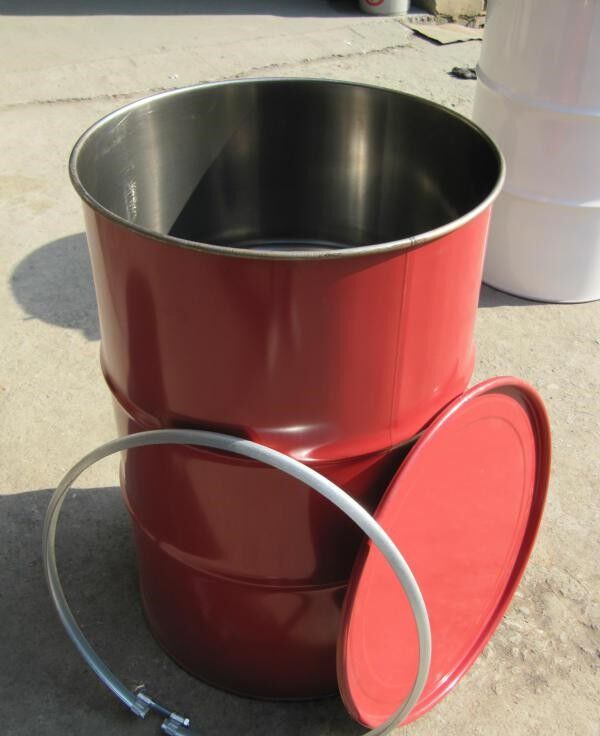

Our production line can manufacture a variety of drum types, including closed drums, open drums, conical drums, and bituminous drums, making it ideal for industries such as oil, chemicals, food, and beverages.
The equipment is characterized by its simple structure, ease of operation, low maintenance costs, and strong applicability, ensuring a cost-effective solution for drum production.
Specifications
| Feature | Details |
|---|---|
| Applied Sheet | SPCC steel plate or cold-rolled sheet |

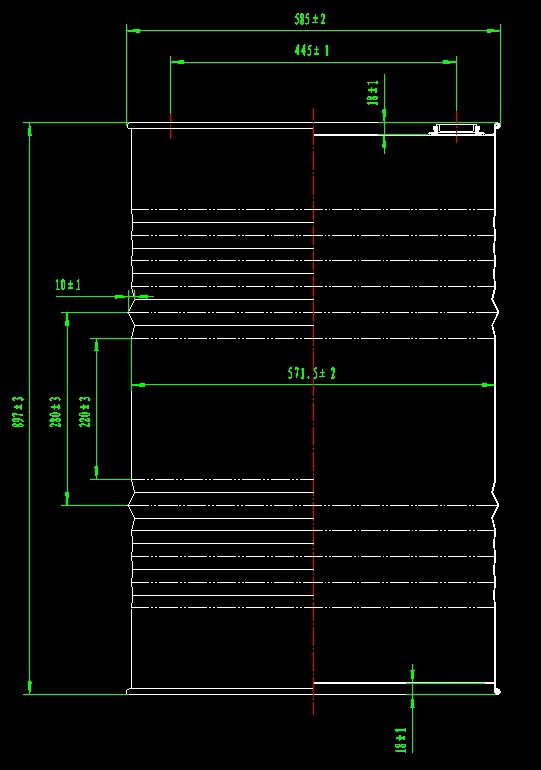

| Drum Inner Diameter | 571.5 mm |
| Drum Outside Diameter | 585 mm |
| Drum Height | 897 mm |
| Outside Painting | Nitro bake paint |
| Paint Thickness | Minimum 18 micron |
| Body Color | One color or multicolor |
| Drum Capacity | 216.5 L (55 Gallon, US) |
| Weight | 16-18 kg |
| Closures | 2 closures |
| Top Holes | One 3/4 Inch + one 2 Inch |
| Numbers of Corrugations | 6-10 |
| Material Thickness | 0.8-1.2 mm |
Additional Information
- Note: Drum specifications can be customized according to customer requirements.
- Production Capacity: The machine offers multiple configurations to meet different output needs and investment scales.
- Service: Our focus is on delivering high-quality drum production equipment at competitive prices.
