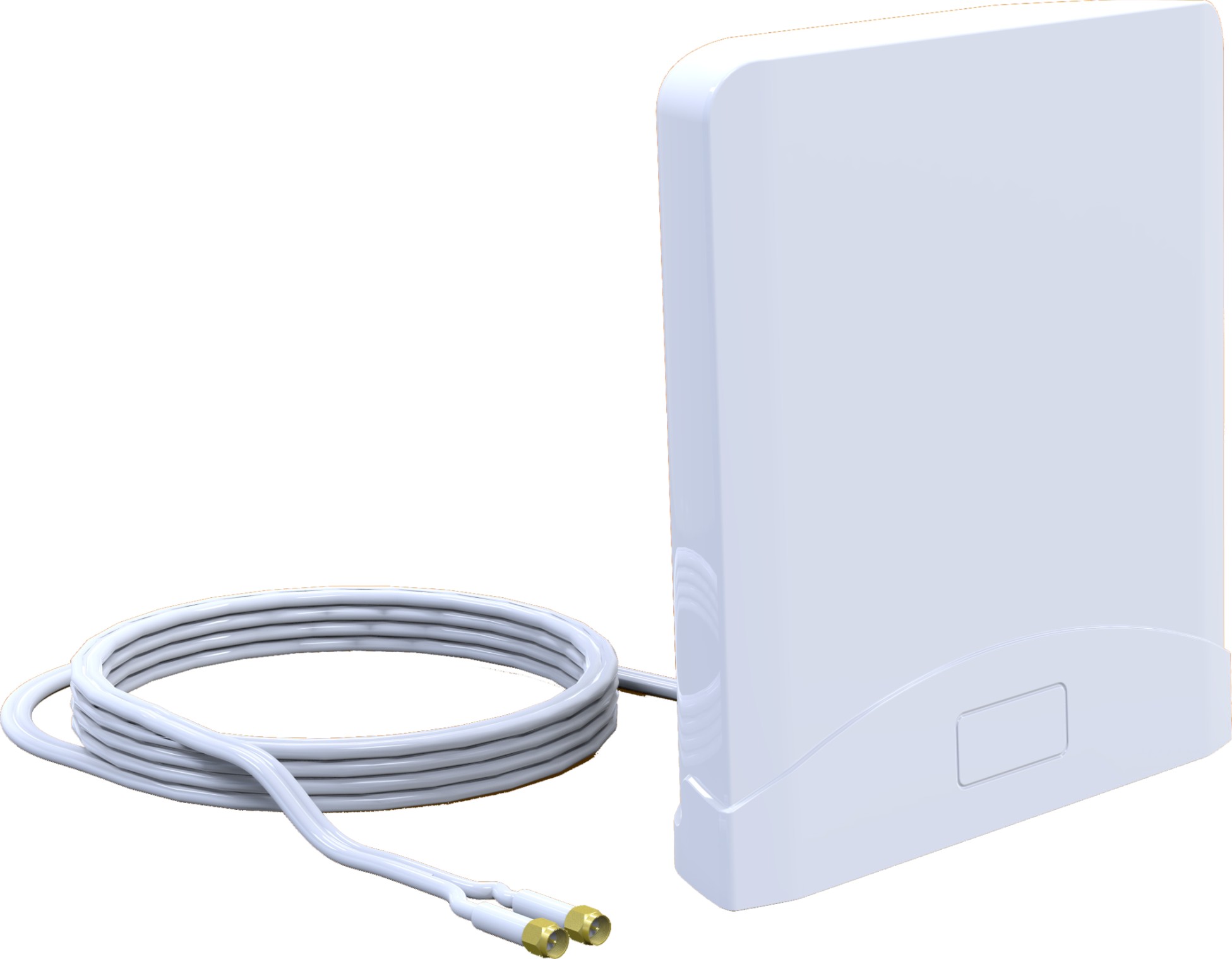

5G MIMO Communication Antenna GDW-AX0606
Inquire NowDescription
Introducing the 5G MIMO Communication Antenna GDW-AX0606, a high-performance antenna designed to enhance your 5G connectivity. This antenna is engineered with advanced technology to support multiple frequency ranges including 698-960 MHz, 1710-2700 MHz, 3300-3600 MHz, and 4800-5000 MHz, ensuring optimal signal strength and coverage. With a maximum power capacity of 100W, it is built to meet the demanding requirements of modern communication systems.
The GDW-AX0606 offers impressive antenna gain of 4/5/6/6 dBi, combined with a vertical and horizontal beam width of 120° and 360° respectively, allowing for extensive coverage in various environments. Its dual polarization capabilities enable flexible installation options, whether vertical or horizontal.
Constructed from durable ABS material, available in black or white finishes, this antenna is designed to withstand various weather conditions with a working temperature range of -40 to 60°C. Its lightweight design (1 kg) and compact dimensions (215 x 200 x 70 mm) make it easy to install and integrate into existing systems.
Specifications
| Attribute | Details |
|---|---|
| Model No | GDW-AX0606 |
| Frequency Range | 698-960/1710-2700/3300-3600/4800-5000 MHz |
| VSWR | 3 |
| Impedance | 50 Ω |
| Antenna Gain | 4/5/6/6 dBi |
| Polarization | Vertical or Horizontal |
| Horizontal Beam Width (half-power) | 360° |
| Vertical Beam Width (half-power) | 120° |
| Isolation Between Ports | ≥ 20 dB |
| Max.Power | 100 W |
| Connector | 2xSMA-male |
| Dimension | 215 x 200 x 70 mm |
| Weight | 1 Kg |
| Radome Material | ABS (black or white) |
| Cable | 2 m |
| Working Temperature | -40 ~ 60 ℃ |
Additional Information
- Ideal for enhancing 5G connectivity in urban and rural settings.
- Easy to install with standard SMA connectors.
