60 SERIES BLDC Motor
Inquire NowDescription
The 60 SERIES BLDC Motor is engineered for high performance, delivering impressive torque of up to 0.75Nm. This brushless DC motor features a wide speed range and exceptional efficiency, making it ideal for various applications that demand reliability and longevity. With a robust design and high-quality components, this motor is built to last, ensuring optimal performance in diverse environments.
Specifications
| Attribute | Details |
|---|---|
| Winding Type | Star |
| Hall Effect Angle | 120 degree electrical angle |
| Shaft Run Out | 0.025mm |
| Insulation Class | Class B |
| Dielectric Strength | 500VDC for one minute |
| Ambient Temperature | -20—+40℃ |

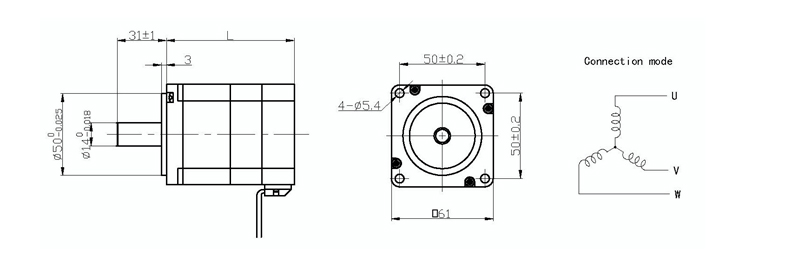

Wire Diagram
| Lead No. | Lead Color | Lead Gauge | Function |
|---|---|---|---|
| 1 | RED | 18AWG UL1569 | Phase U |
| 2 | YEL | Phase V | |
| 3 | BLA | Phase W | |
| 4 | RED | 26AWG UL1569 | +5V |
| 5 | BLU | Hall A | |
| 6 | GRE | Hall B | |
| 7 | WHI | Hall C | |
| 8 | BLA | GND |
Electrical Specification
| Model | Voltage (V) | Number of Poles | Rated Power (W) | No Load Speed (rpm) | Rated Torque (Nm) | Rated Speed (rpm) | Rated Current (A) | Torque(max) (Nm) | Back-EMF Constant (V/Krpm) | Torque Constant (Nm/A) | Resistance (ohm) | Weight (Kg) | Length (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 60DMW75-3630 | 36 | 8 | 80 | 4100 | 0.25 | 3000 | 3 | 0.75 | 6.2 | 0.043 | 0.59 | 0.9 | 75 |
| 60DMW95-3630 | 36 | 8 | 160 | 4100 | 0.5 | 3000 | 6 | 1.5 | 6.5 | 0.045 | 0.26 | 1.2 | 95 |
| 60DMW115-3630 | 36 | 8 | 230 | 4100 | 0.75 | 3000 | 9 | 2 | 6.5 | 0.041 | 0.2 | 1.6 | 115 |
Additional Information
For optimal performance, ensure the motor operates within the specified ambient temperature range and is properly insulated. Regular maintenance can further enhance the lifespan and efficiency of the motor.
