60m/min light keel roll forming machine
Inquire NowDescription
The 70m/min light keel roll forming machine is engineered for high-speed, silent operation, making it an ideal choice for producing various profiles including angle, omega, stud, track, and furring channels. This advanced machinery allows for precision manufacturing with the ability to handle galvanized strips, ensuring durability and quality in every output.

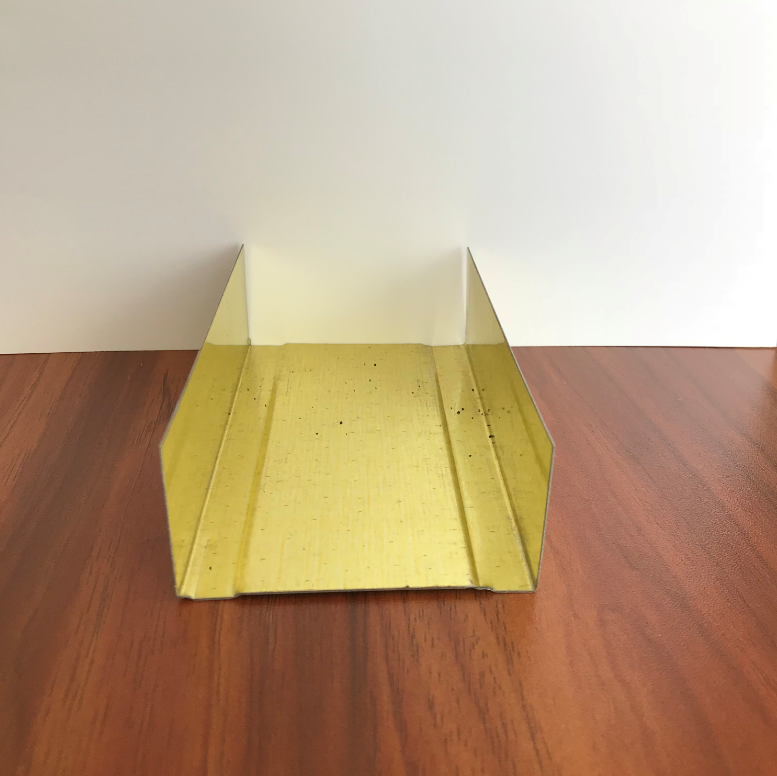

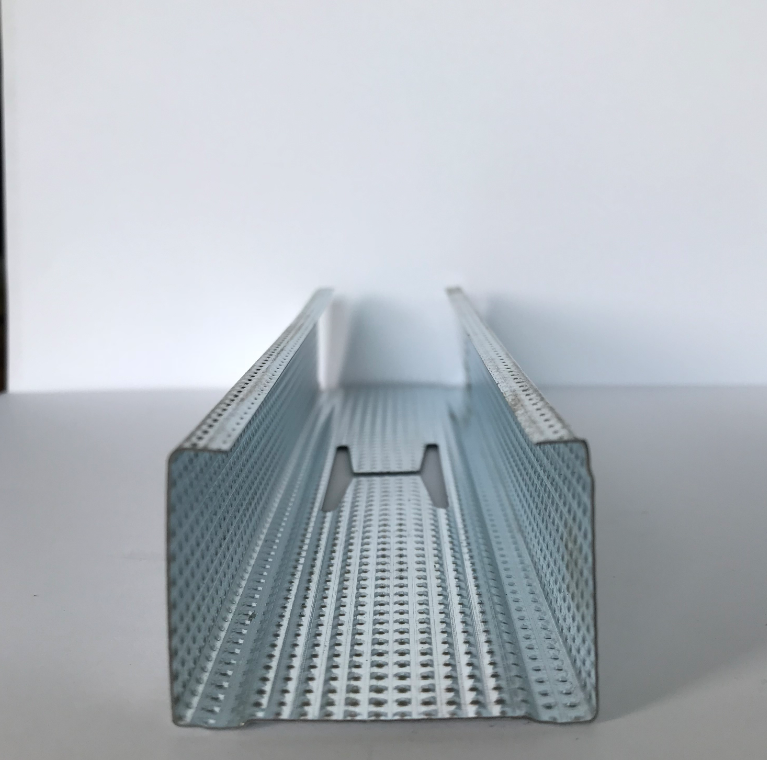

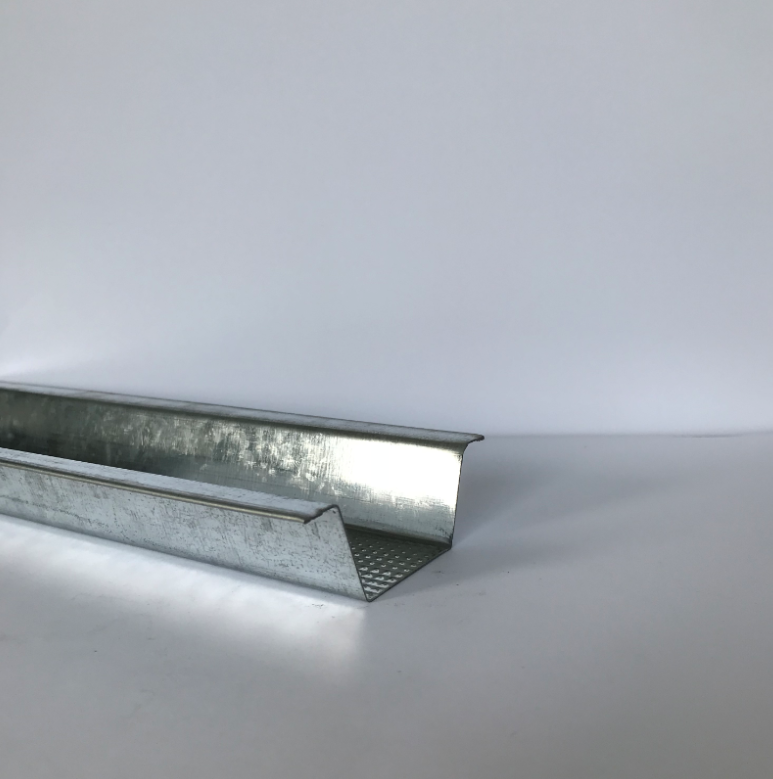

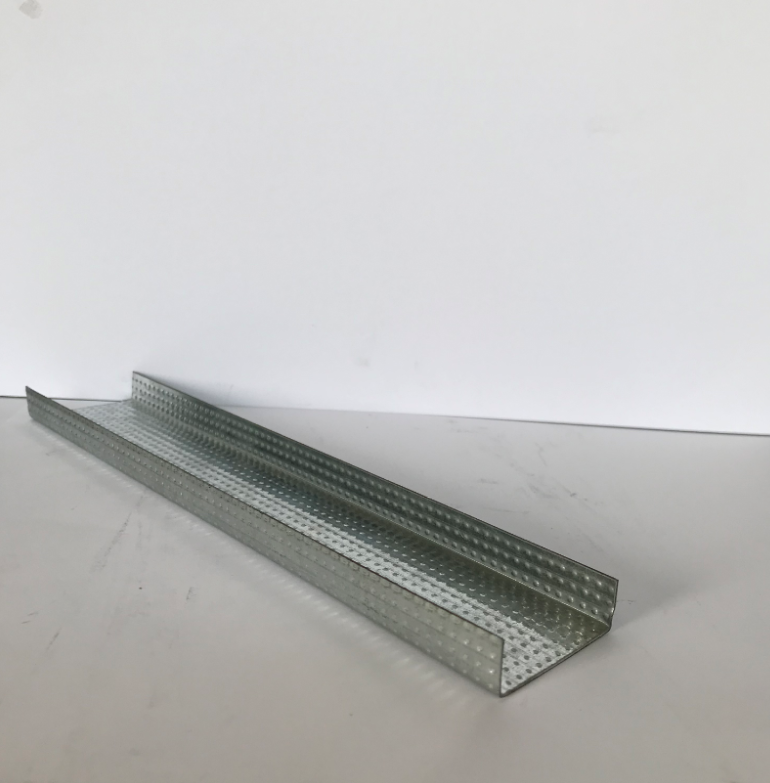

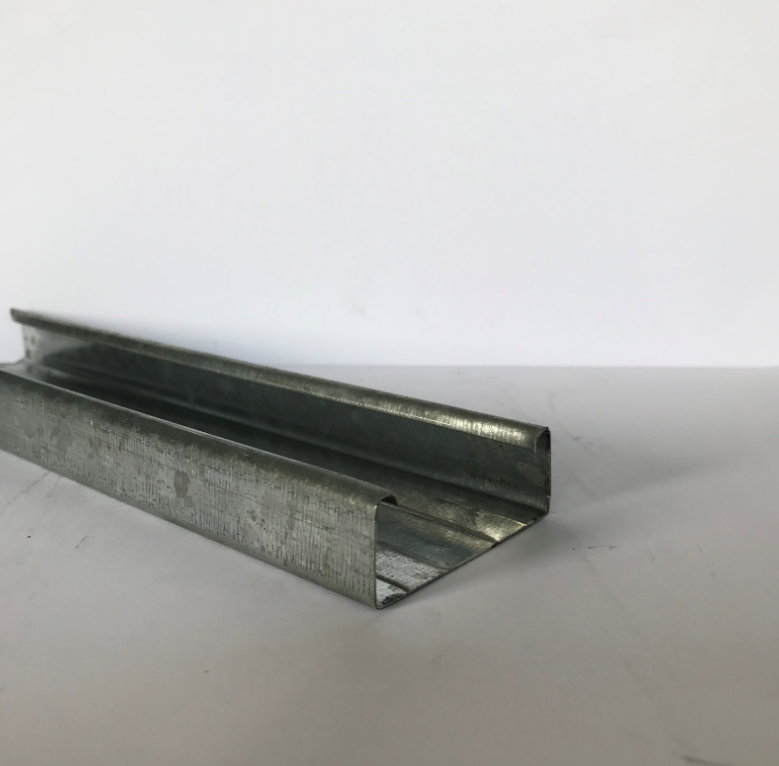

Designed with versatility in mind, the machine can create profiles such as:

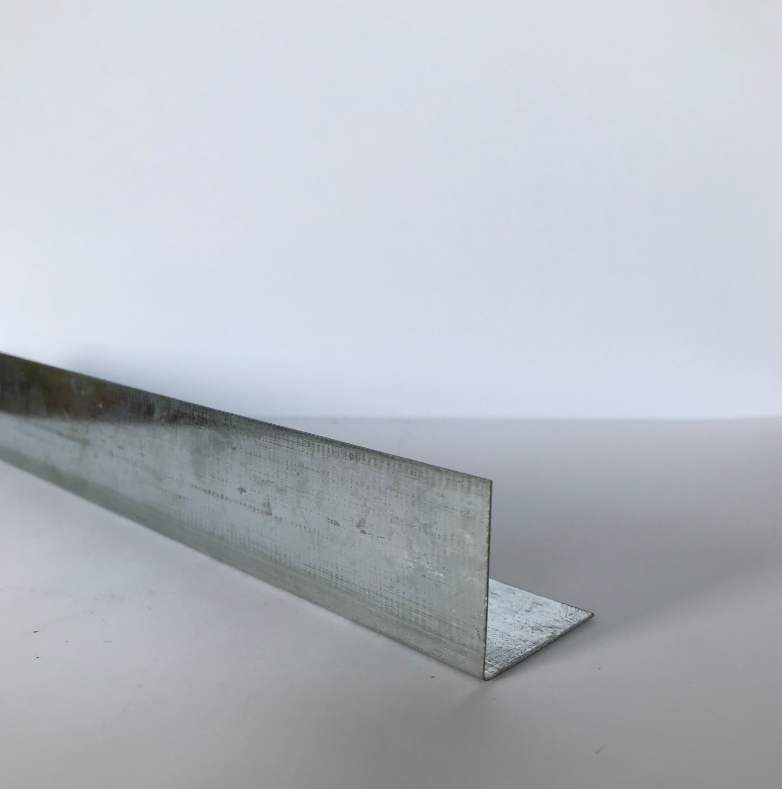

- Angle
- Omega
- Stud
- Track
- 38 main furring
- 50 furring
Specifications
| Attribute | Details |
|---|---|
| Material | Galvanized strip |
| Thickness | 0.2-1mm |
| Roller Stations | 10-14 rollers |
| Speed | 70m/min |
| Shaft Material and Diameter | 45# steel with chromed, 50mm |
| Roller Material | CR12 |
| Cutter Material | CR12 |
| Main Power | 7.5KW |
| Driven | Gear box |
| Collection Table | Automatic |
| Add Oil | Automatic |
| Noise | No |
Additional Information
The machine operates with minimal noise, enhancing the working environment. It features an automatic oil-addition system, ensuring consistent performance and longevity. This roll forming machine is perfect for those looking for efficiency and precision in their production processes.
