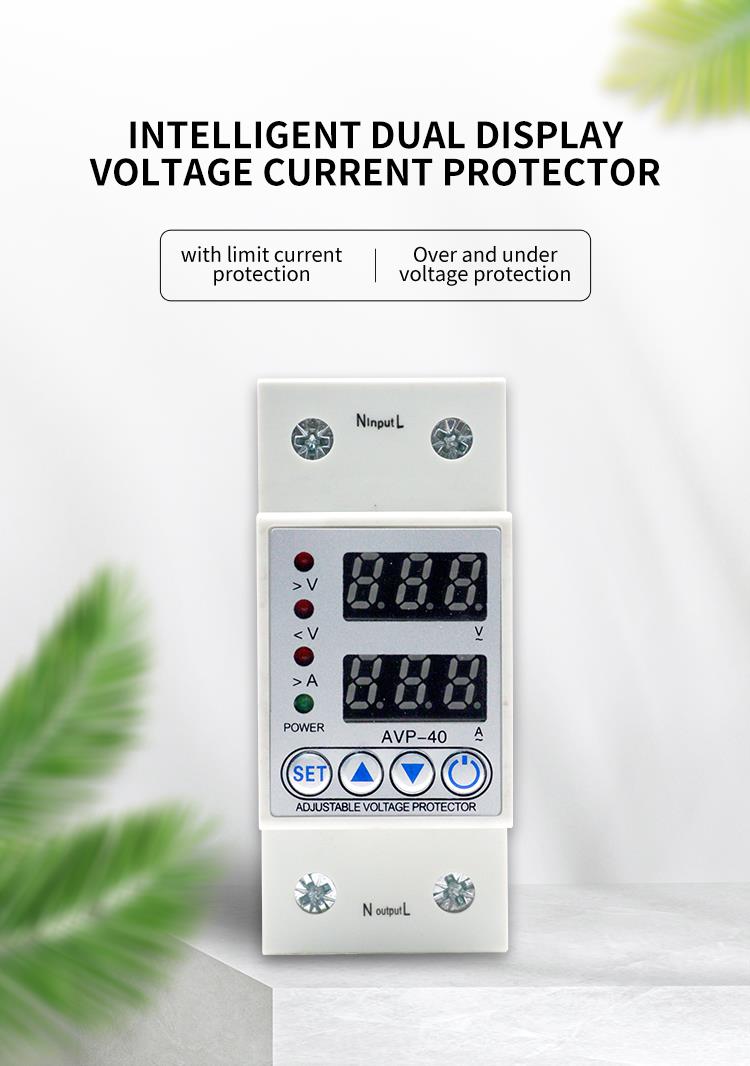

63A 230V 3in1 Display DIN Rail Adjustable Over Under Voltage Surge Protector
Inquire NowDescription
The 63A 230V 3in1 Display DIN Rail Adjustable Over Under Voltage Surge Protector is a versatile and essential device for safeguarding electrical systems. This advanced surge protector offers adjustable under-voltage protection (210V-140V, default 160V), over-voltage protection (230V-300V, default 280V), and over-current protection (1A-40A/63A, default 20A). With a reconnect time adjustable from 1s to 300s (default 5s), it ensures optimal performance and safety for your electrical appliances. The device also features a built-in voltage meter and ammeter, allowing for real-time monitoring of voltage and current levels. Designed for 220V rated voltage and compatible with both 50Hz and 60Hz frequencies, this surge protector is a reliable choice for protecting your equipment from voltage fluctuations.
Specifications
| Feature | Details |
|---|---|
| Pole number | 2P |
| Rated voltage | AC 220V/230V |
| Rated current | 1-40A (Default 40A), 1-63A (Default 63A) |
| Over-voltage range | 230V-300V (Default 270V) |
| Under-voltage range | 110V-210V (Default 170V) |
| Tripping time | 1-30S (Default 0.5S) |
| Reconnect / Power on time | 1-500S (Default 5S) |
| Power consumption | < 2W |
| Ambient temperature | -20 ~ 50 °C |
| Installation | 35mm Din rail |
| Electro-mechanical life | 100,000 cycles |
Additional Information
This surge protector is perfect for both residential and commercial applications, offering peace of mind with its robust protective features. Ensure proper installation to maximize its effectiveness.

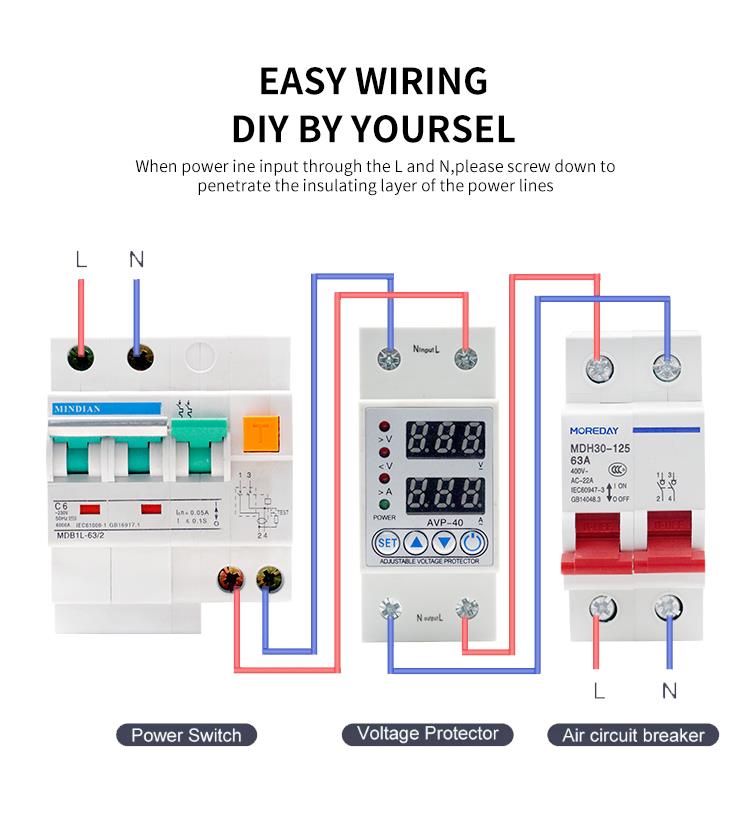

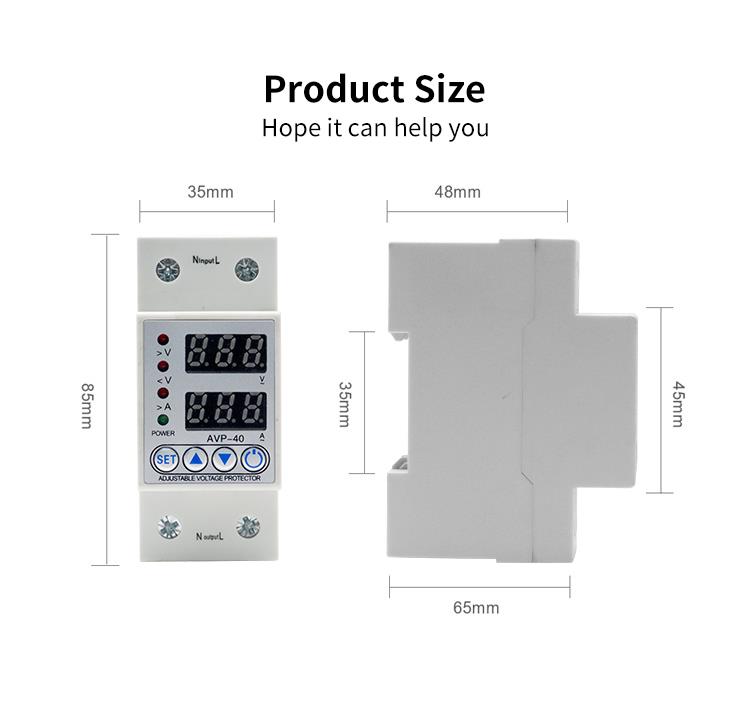

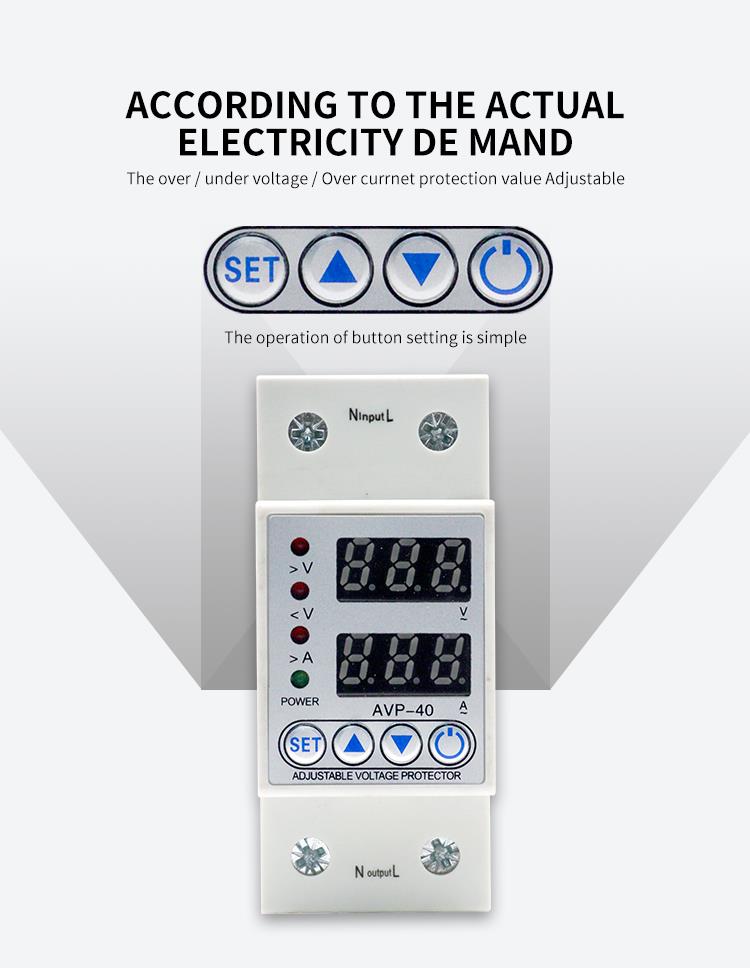

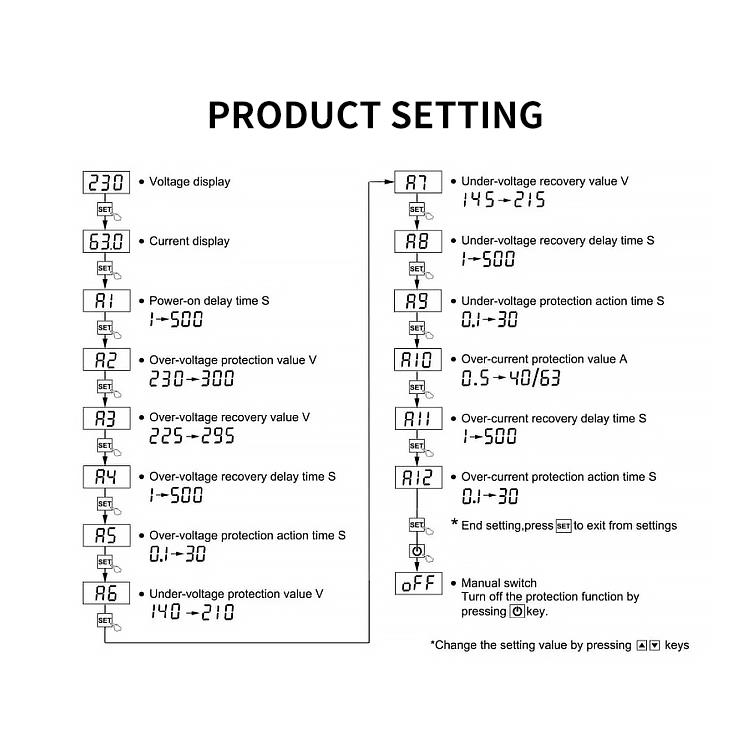

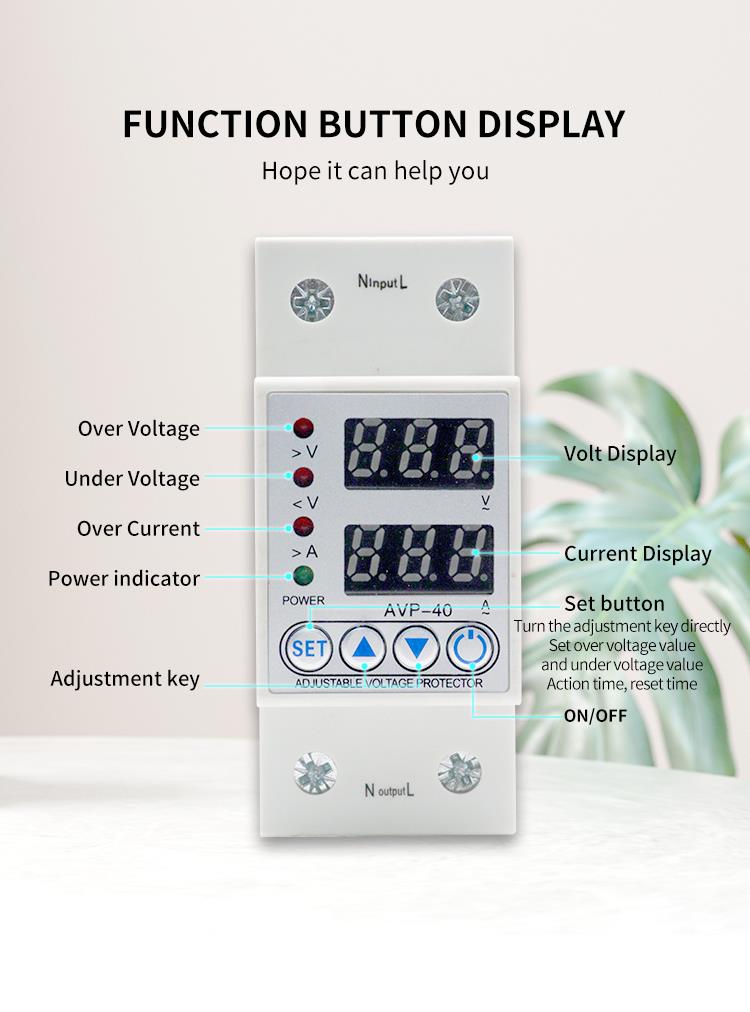

Detailed Photos
