6m hydraulic bending machine
Inquire NowDescription

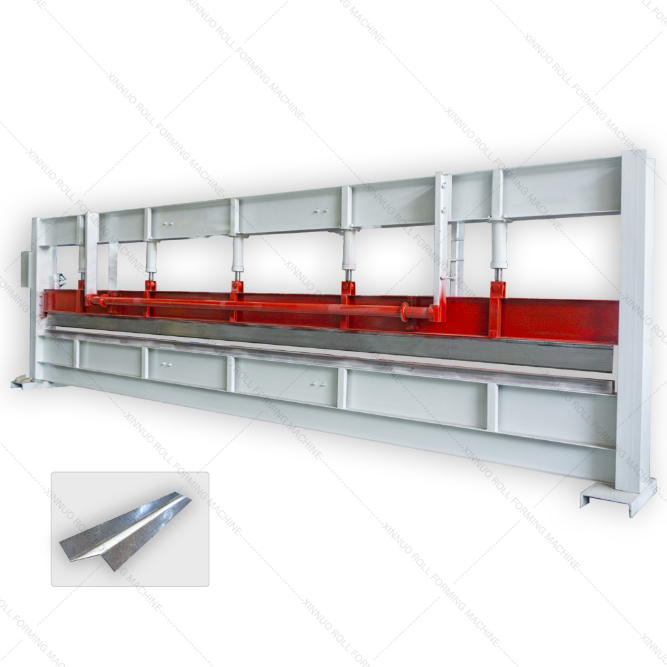

The 6m Hydraulic Bending Machine is designed for precision metal panel bending, featuring a robust steel welded structure that ensures reliability and ease of operation. This machine excels in bending color steel plates, galvanized sheets, and more, making it an essential tool for various metal fabrication tasks. With a hydraulic transmission system, it promises smooth and efficient performance while maintaining a visually appealing design.
Key features include the ability to process raw materials with thicknesses ranging from 0.2mm to 1.0mm and widths up to 6000mm. The machine’s 3KW motor power guarantees effective operation, catering to diverse bending requirements.
Specifications
| Attribute | Details |
|---|---|
| Processing Material | Color steel plate, steel plate, galvanized sheet |
| Raw Material Thickness | 0.2 – 1.0 mm |
| Raw Material Width | 6000 mm |
| Motor Power | 3 KW |
Additional Information
Our Advantage: The machine features a high-strength body made from H300 or H350 steel, ensuring durability and stability. The components are meticulously crafted, including GCr15 material rollers for superior forming effects and Cr12 steel cutting tools for precision cutting. The advanced PLC control system enhances accuracy and stability during operation.
Terms of Payment: 40% of the total contract value is required as a down payment via T/T, with the remaining 60% due after inspection before delivery.
Delivery: The machine will be delivered within 30 workdays upon receipt of the advance payment.
Warranty: The machine comes with a 12-month limited warranty, where parts are provided free of charge, although the buyer is responsible for shipping costs during this period.
