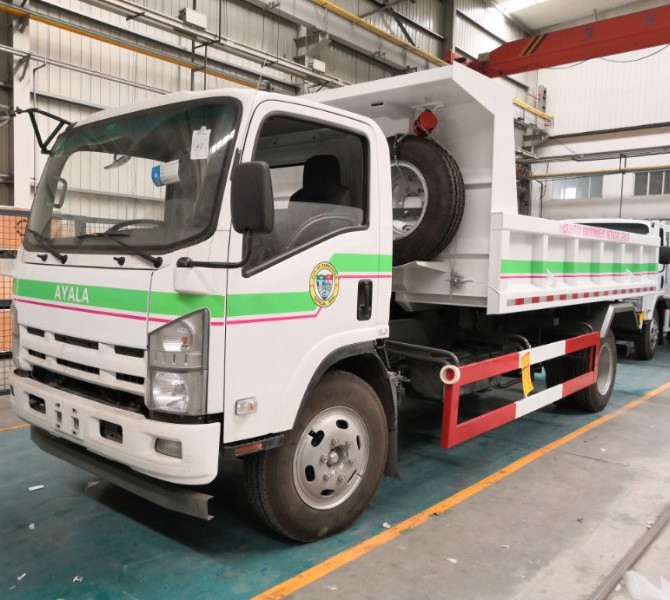

OEM ODM 6m3 Dump Truck
Description
The 6m3 Dump Truck is a robust and efficient vehicle designed for heavy-duty transportation and dumping tasks. With a spacious capacity of 6 cubic meters, it is ideal for construction sites, roadworks, and various industrial applications. This model, QL11009KARY, features a powerful 4HK1-TC51 engine that delivers a remarkable 139 kW (189 PS) of power, ensuring reliable performance even under demanding conditions. Its sturdy construction and advanced hydraulic system allow for smooth and efficient operation, making it a valuable asset for any fleet.
Specifications
| Attribute | Details |
|---|---|
| Overall Dimension (L x W x H) | 6500 x 2200 x 2600 mm |
| Curb Weight | 5300 Kg |
| GVW | 10000 Kg |
| Wheelbase | 3815 mm |
| Drive Type | 4×2 |
| Engine Model | 4HK1-TC51 |
| Engine Power | 139 kW (189 PS) |
| Displacement | 5193 ml |
| Transmission | MLD-6Q |
| Forward Gear | 6 Speed Gear |
| Backward Gear | 1 Speed Gear |
| Front Seat | 3 |
| Front Wheel Distance | 1680 mm |
| Rear Wheel Distance | 1650 mm |
| Axle Loads | Double Axles |
| Tires | 7 (including spare tire) |
| Tire Model | 8.25R20 14PR |
| Power Steering | Yes |
| AC | Yes |
| Retro-reflective Marking | Yes |
| ABS | Yes |
| Free Maintenance Battery | Yes |
| Dumper Capacity | 6 m3 |
| Box Inside Dimension (L x W x H) | 4000 x 2000 x 800 mm |
| Cylinder | Middle Lift, Single hydraulic Jack |
| Thickness of Dump Body | Bottom 4 mm, sides 3 mm |
Additional Information
The 6m3 Dump Truck is equipped with a single hydraulic jack for efficient lifting and unloading operations. Its design ensures durability and reliability, making it an essential tool for any heavy-duty tasks. Regular maintenance will help extend the vehicle’s lifespan and enhance performance.
