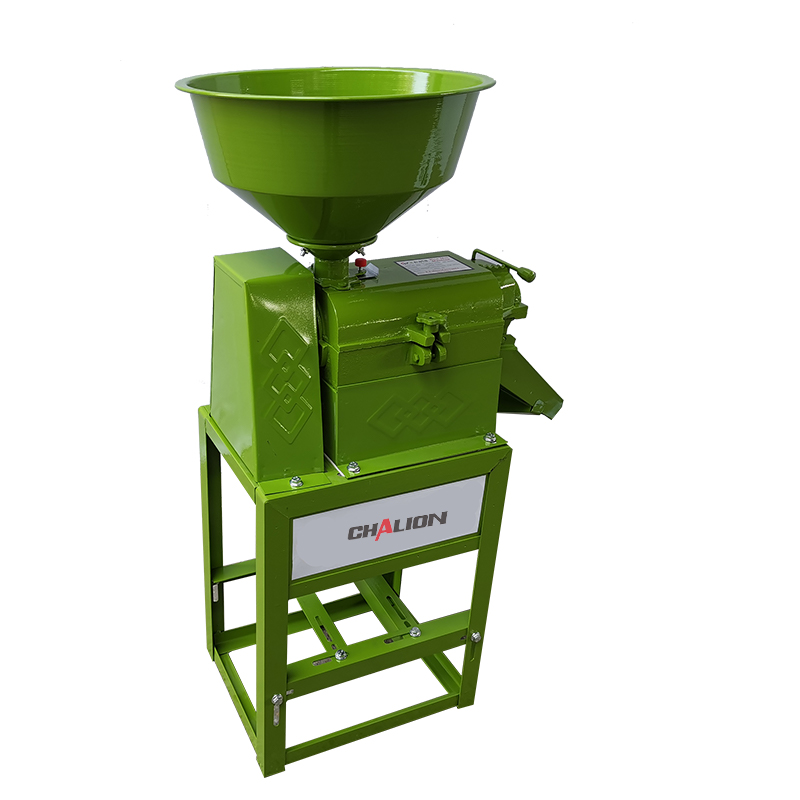

6N80/6N80A Rice Mill Machine

Inquire Now

The Rice Mill Machine can shell rice and grind bean and corn. whiteness the rice and separate the whole rice from the broken one. Shelling rate is over 90%.

Rice Milling Machine distribution:

Adjust the blade type (Model: 6N80):Using gray cast iron as the body, the material standard is: HT100-HT200, sheet metal material is Q235, wearing parts name: rice sieve, roller, rice knife, including rice sieve For high frequency quenching or stainless steel, roller and knife are wear-resistant chilled cast iron or gray cast iron, this model can be applied to the above materials, can also be applied to large materials beyond this range; surface coating adopts Spraying process to achieve long-term non-discoloration and smooth light.


Product parameters:


Model No

6N80/6N80A

Dimension(LxWxH)mm

550*350*1030mm

Packing size(LxWxH)mm

550*420*310

Rated power

2.2-2.6kw

Rated voltage

220v

Rated motor speed

2800r/min

net weight

35kg (without electric motor)

Productivity rice mill

>220kg/h

Spindle speed

1400-1600rpm

Structure

Iron roller type

Roller material

Grey cast iron

Rice screen material

Q235

Rice knife(bead) siza(L*W*H)

210*28*4mm

Optional sieve siza

0.7mm/1.0mm/1.2mm/1.3mm

Feed hopper capacity

20-25kg

Bearing Type

6204

Roller diameter

80mm

Motor wheel aperture

24mm

Motor wheel keyway width

8mm

Colour

Green,Beige,Red,Blue,Sky Blue,Light yellow
