Description

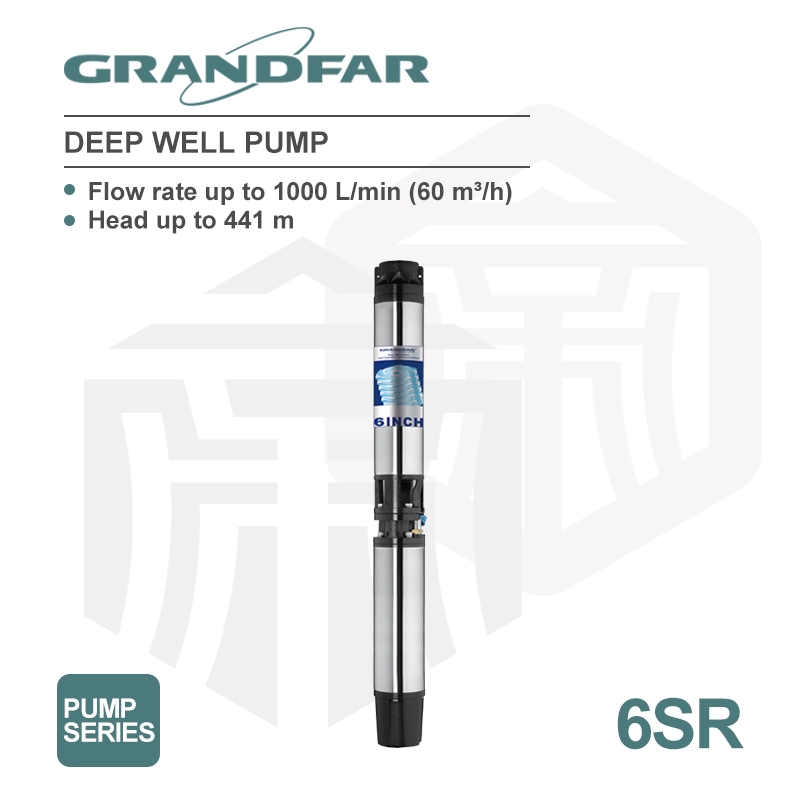

The 6SR Deep Well Pump is engineered for high performance and reliability, making it ideal for various applications, including domestic, civil, and industrial use. With a robust flow rate of up to 1000 L/min (60 m³/h) and a head capacity of up to 441 m, this pump efficiently handles clean water distribution, irrigation, washing plants, and pressure boosting for fire-fighting systems. It operates effectively at a maximum immersion depth of 100 m and can handle a sand content of up to 150 g/m³, ensuring durability and longevity in challenging environments.
Specifications
| Feature | Details |
|---|---|
| Flow Rate | Up to 1000 L/min (60 m³/h) |
| Head | Up to 441 m |
| Maximum Immersion Depth | 100 m |
| Maximum Sand Content | 150 g/m³ |
| Liquid Temperature | Up to +35 °C |
| Ambient Temperature | Up to +40 °C |
| Minimum Well Diameter | 6″ |
| Pump Body | Stainless Steel |
| Impeller | Plastic POM |
| Diffuser | Plastic PC and Stainless Steel |
| Motor Bracket | Stainless Steel |
| Motor Shaft | Stainless Steel or 45# Steel |
| Mechanical Seal | Ceramic-Graphite or Sic to Graphite |
| Electric Motor | Single-phase 220V/240V-50Hz with thermal overload protection; Three-phase 380V/415V |
| Insulation | Class B |
| Protection | IP X8 |
Additional Information
This deep well pump is designed for clean water applications and is suitable for a wide range of installations, ensuring efficiency and reliability in water distribution systems.
