7.3m High Volume Low Speed Ceiling Fan for Large Plant Air Ventilation
Inquire NowDescription

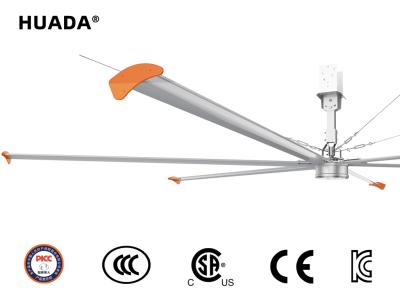

The Huada HDS series smart permanent magnet ceiling fan is specifically designed to enhance comfort in large spaces. This innovative fan operates using a self-designed variable frequency speed control system, ensuring high efficiency and energy savings. Its permanent magnet external rotor motor provides low noise operation, compact structure, and an aesthetically pleasing appearance. Ideal for industrial plants, logistics warehouses, exhibition halls, and other expansive areas, this fan effectively pushes a significant volume of airflow downwards, creating a natural breeze effect that promotes overall air circulation.
Specifications
| Model | Diameter (m) | Diameter (ft) | Power (KW) | Horsepower (HP) | Voltage (V) | Frequency (HZ) | Air Volume (m³/min) | Rotating Speed (rpm) | Number of Leaves (Pcs) | Noise (dB) | Motor Weight (kg) | Ceiling Fan Weight (kg) | Effective Area (m²) | Coverage Area (m²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HDS-3 | 3 | 10 | 0.37 | 0.5 | 220-240/380-460 | 50/60 | 4000 | 120 | 5/6 | 38 | 18 | 35 | 150 | 250 |
| HDS-3.7 | 3.7 | 12 | 0.37 | 0.5 | 220-240/380-460 | 50/60 | 5000 | 100 | 5/6 | 38 | 18 | 38 | 230 | 380 |
| HDS-4.3 | 4.3 | 14 | 0.75 | 1 | 220-240/380-460 | 50/60 | 7000 | 90 | 5/6 | 38 | 25 | 46 | 256 | 450 |
| HDS-5 | 5 | 16 | 1.1 | 1.5 | 220-240/380-460 | 50/60 | 10000 | 80 | 5/6 | 38 | 25 | 49 | 300 | 500 |
| HDS-5.5 | 5.5 | 18 | 1.1 | 1.5 | 220-240/380-460 | 50/60 | 11000 | 70 | 5/6 | 38 | 48 | 99 | 500 | 900 |
| HDS-6.1 | 6.1 | 20 | 1.1 | 1.5 | 220-240/380-460 | 50/60 | 11500 | 60 | 5/6 | 38 | 48 | 103 | 600 | 1000 |
| HDS-6.7 | 6.7 | 22 | 1.5 | 2 | 220-240/380-460 | 50/60 | 12000 | 55 | 5/6 | 38 | 48 | 107 | 650 | 1300 |
| HDS-7.3 | 7.3 | 24 | 1.5 | 2 | 220-240/380-460 | 50/60 | 13000 | 50 | 5/6 | 38 | 58 | 111 | 700 | 1500 |
Additional Information
Other specifications and models can be customized according to customer needs.
