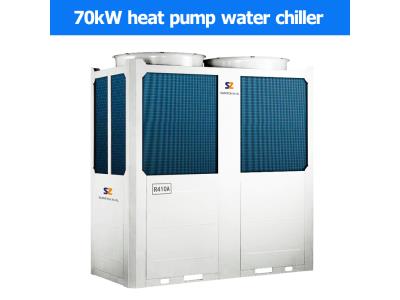

70kW inverter commercial heat pump
Inquire NowDescription
The 70kW Inverter Commercial Heat Pump is a high-efficiency heating and cooling solution, designed to deliver optimal performance in varying ambient conditions. Featuring a MITSUBISHI compressor with advanced DC inverter technology, it operates efficiently at temperatures as low as -25℃, ensuring reliable warmth in winter and refreshing coolness in summer. With energy savings of up to 75%, this heat pump maintains a comfortable indoor temperature of 25℃ during winter and 22℃ in summer, making it an ideal choice for commercial applications.
Easy to control via a single screen for up to 16 heat pump modules, it offers user-friendly operation with one-touch auto running capabilities. The compact design ensures minimal space usage, and its quiet operation, measuring only 67 dB(A) at 1.5 meters, makes it suitable for various environments.
Advantages of Big Project DC Inverter Heat Pump
- High efficiency and energy saving, low noise, and long life
This inverter air source heat pump intelligently adjusts the compressor and fan frequency based on heating or cooling demands, optimizing energy use while reducing noise and extending the unit’s lifespan.
Specifications
| Model | MRSV-65A/S(C) | MRSV-70A/S(C) | MRSV-130A/S(C) |
|---|---|---|---|
| HP | 24P | 26P | 50P |
| Power Supply | 380V/50Hz | ||
| Rated Cooling Capacity | 65 kW | 70 kW | 130 kW |
| Rated Cooling Input Power | 19.5 kW | 22 kW | 39 kW |
| EER | 3.3 w/w | 3.2 w/w | 3.3 w/w |
| Cooling Min / Max | 19/70 kW | 20/75 kW | 38/140 kW |
| Input Power Min / Max | 6.3/29.5 kW | 7.5/31.2 kW | 12.6/59 kW |
| COP | 3.4 w/w | 3.3 w/w | 3.4 w/w |
| Refrigerant | R410A | ||
| Heating Hot Water Temp. Range | 30℃~50℃ | ||
| Cooling Cold Water Temp. Range | 5℃~20℃ | ||
| Working Ambient Temp. | -20℃ (or -25℃ optional) ~ 45℃ | ||
Additional Information
This heat pump provides versatile heating and cooling solutions suitable for large projects, ensuring comfort and efficiency year-round.
