70m/min high speed light keel roll forming machine
Inquire NowDescription
The 70m/min high-speed light keel roll forming machine is designed for efficiency and versatility in producing various profiles including angle, omega, stud, and track, specifically tailored for 38 main and 50 furring applications. With its cutting-edge technology, this machine achieves a remarkable speed of 70 meters per minute, ensuring high productivity and precision in manufacturing processes.
It features a robust construction, capable of handling a range of materials while maintaining operational excellence. The final products showcase the machine’s ability to create intricate profiles, making it an essential tool for industry professionals.

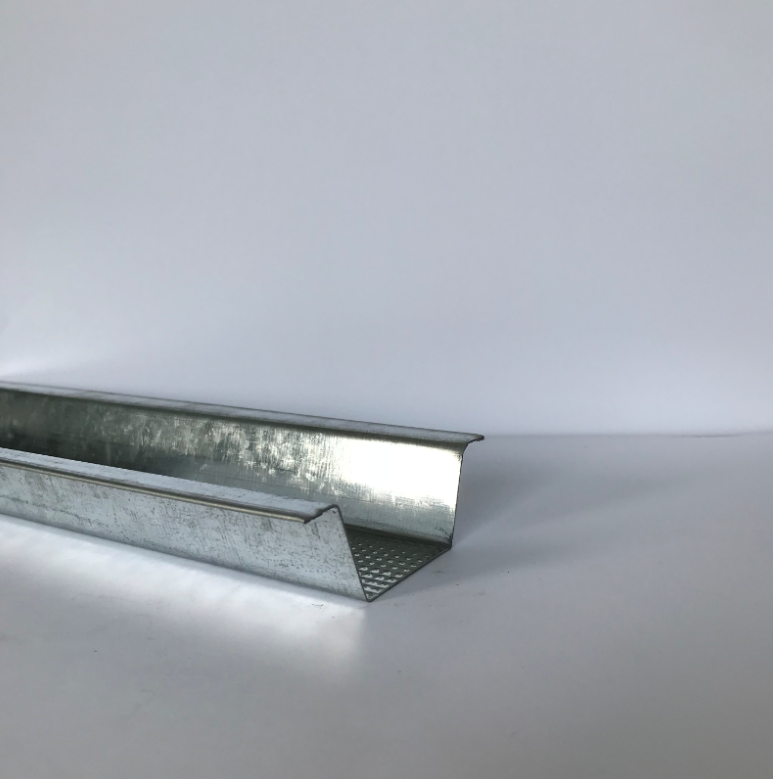

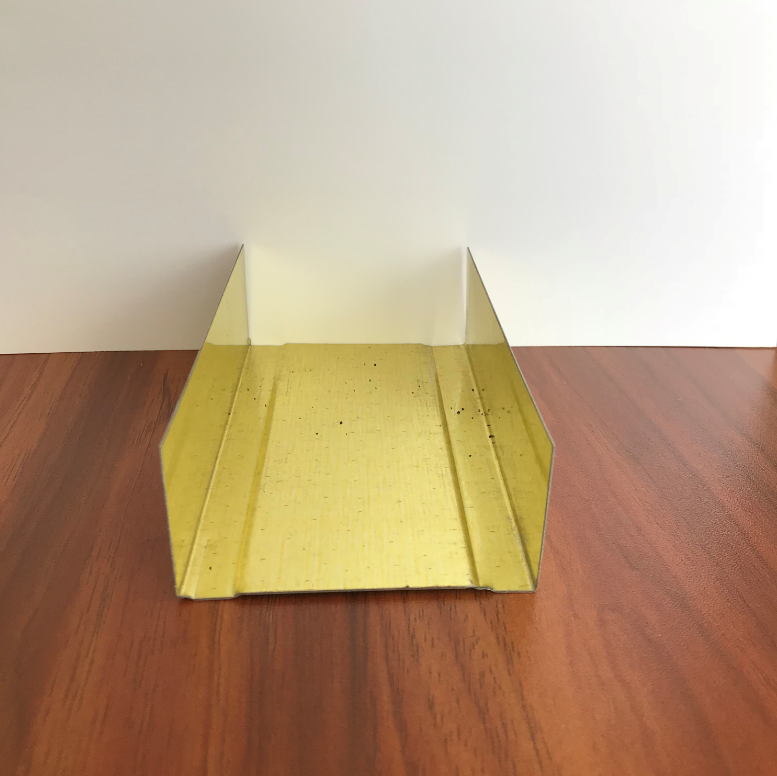

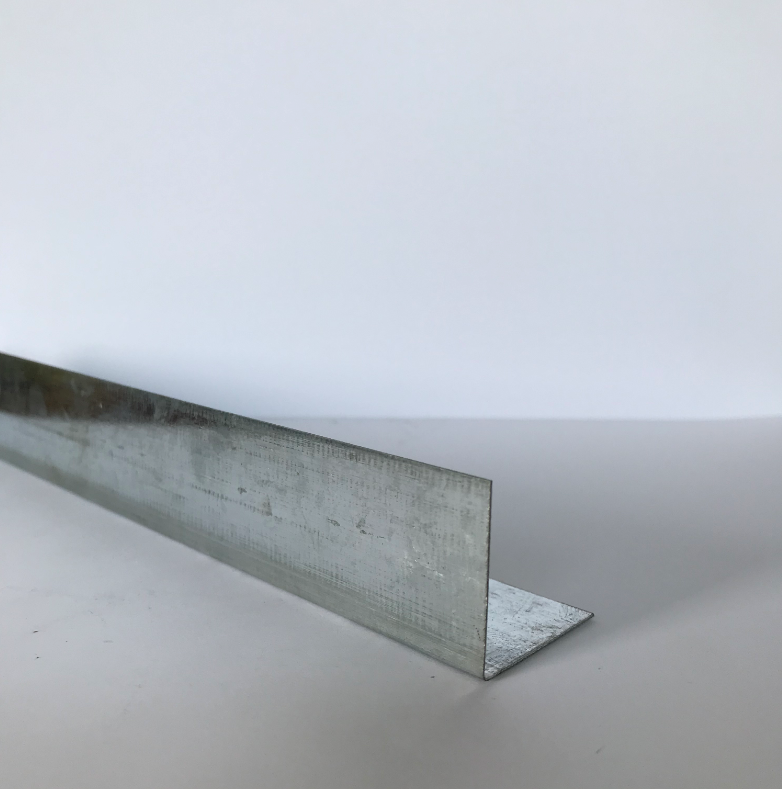

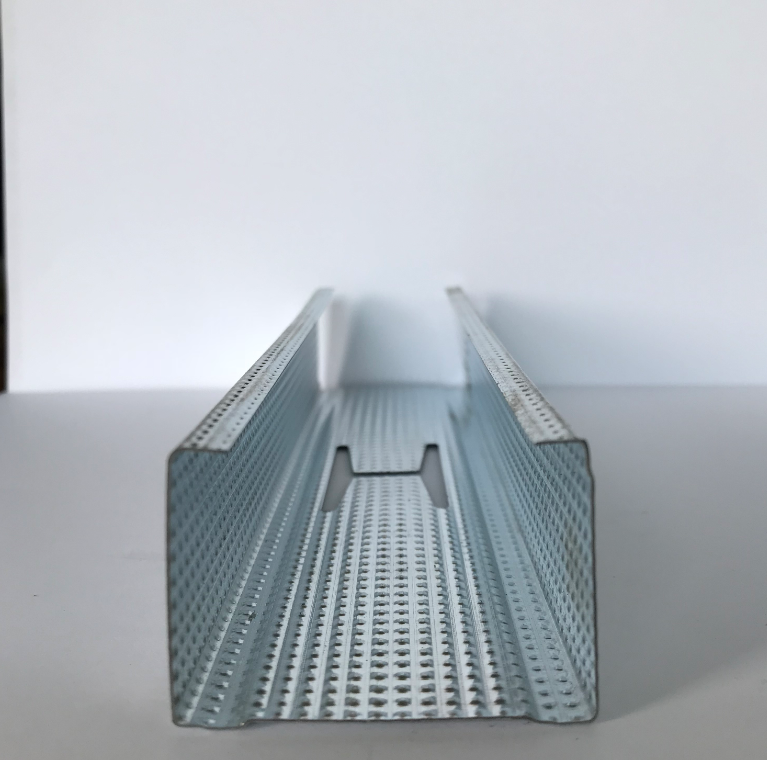

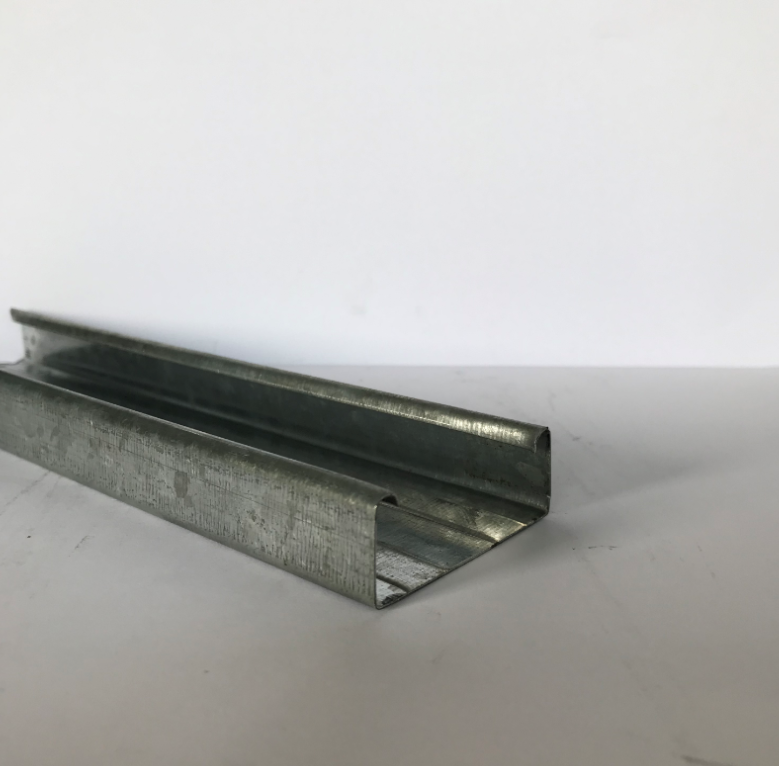

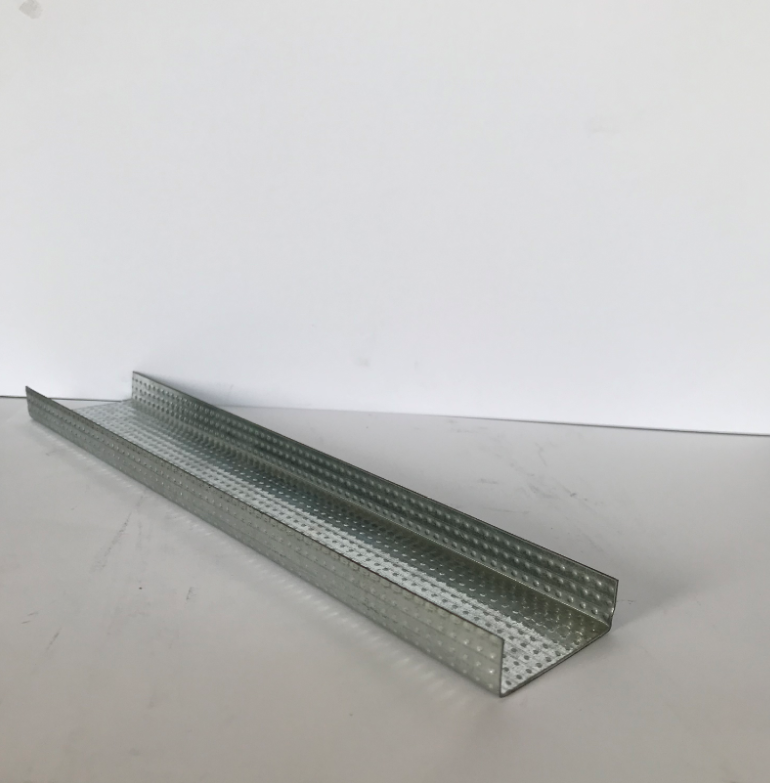

The final products for making reference:
| Profile Type |
|---|
| Angle |
| Omega |
| Stud |
| Track |
| 38 Main Furring |
| 50 Furring |
Specifications
| Parameter | Details |
|---|---|
| Material | Galvanized strip |
| Thickness | 0.2-1mm |
| Roller Stations | 10-14 rollers |
| Speed | 70m/min |
| Shaft Material and Diameter | 45# steel with chromed, 50mm |
| Roller Material | CR12 |
| Cutter Material | CR12 |
| Main Power | 7.5KW |
| Driven | Gear box |
| Collection Table | Automatic |
| Add Oil | Automatic |
| Noise | No |
Additional Information

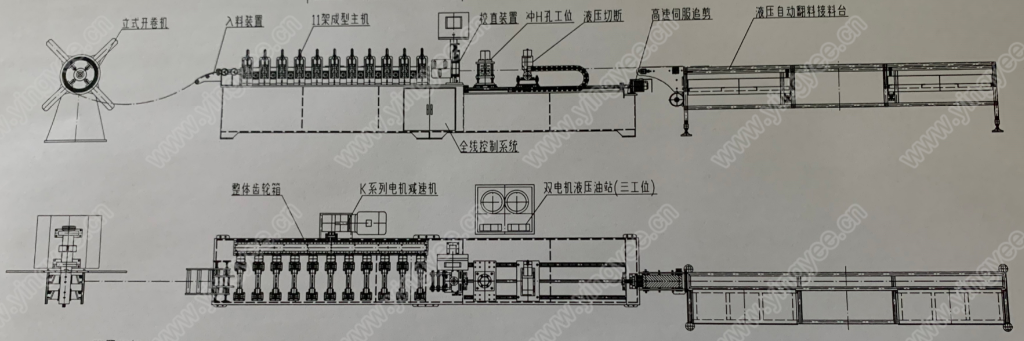

Machine Technical Process:
