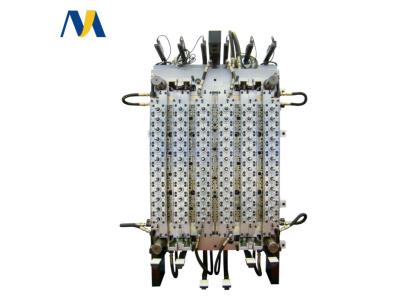

72 Cavity Preform Mould for PCO 1810 neck finish
Inquire NowDescription
The 72 Cavity Preform Mould for PCO 1810 neck finish is expertly designed for producing preforms specifically for carbonated soft drinks (CSD). This advanced mould features a balanced hot runner system equipped with a shut-off valve gate, ensuring that there is no stringing at the injection gate of the preforms. The innovative cam roller design minimizes maintenance time, making it highly efficient for operators. Crafted for use with Husky’s injection molding system, this mould produces preforms weighing 25 grams with a cycle time of 32 seconds on a standard PET screw injection molding machine. Remarkably, the cycle time can be reduced to just 17 seconds with a three-stage post-cooling system, enhancing productivity and performance.
Specifications
| Mould Name | 72 cavity preform mould for PCO 1810 Neck 25g Preform |
|---|---|
| Mould Cavity | 72 cavity |
| Neck Finish | PCO 1810 CSD Neck finish |
| Preform Weight | 25g |
| Insert Materials | 2316 stainless steel from Germany |
| Mould Body | P20 steel material |
| Cycle Time | 32 sec with general PET screw type of injection molding machine |
| Cycle Time with Two Stage Injection System | 17 sec with 3 stage post cooling system |
| Hot Runner Design | Balanced Hot runner with valve gate system |
| Suitable Injection Molding Machines | Husky, Netstal PET line, PET Master, General PET injection molding machine |
Additional Information
This mould is designed to maximize efficiency and reduce operational downtime, making it an excellent choice for manufacturers focusing on high-volume production of PET preforms.
