75KW DIESEL GENERATOR with Deutz diesel engine
Inquire NowDescription

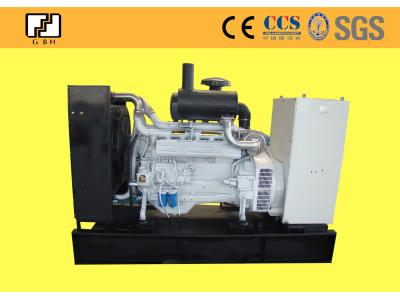

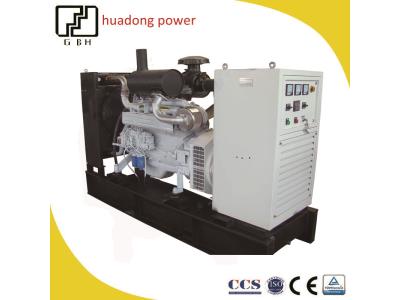

The 75KW Diesel Generator powered by a robust Deutz diesel engine is designed for reliable performance in various applications. This generator features a brand-new brushless alternator, ensuring efficient energy production. The heavy-duty steel base frame provides durability and stability, while the advanced radiator system supports optimal cooling for both open and soundproof configurations. With a vibration damper incorporated between the engine and alternator, the generator operates smoothly and quietly, thanks to its industrial silencer.
Equipped with essential filters (air, oil, and fuel) and an electric start system, this generator is ready for quick deployment. The average fuel tank supports up to 8 hours of continuous operation, making it perfect for industrial use. Standard tool kits and comprehensive operation/maintenance manuals are included, ensuring ease of use and maintenance.
For added convenience, additional options are available such as automatic transfer switches, water heaters, and extra fuel filters, allowing customization to meet specific needs.
Specifications
| NO. | Genset Model | Standby Power (KVA) | Rated Voltage | Rated Currency | Engine Model | Max Output (KW) | Speed (r/min) | Starting Method | L*W*H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 1 | HRC-20CF | 27.5 | 400 | 36 | ZH4100D | 33 | 1500 | 12V | 1800*840*1250 |
| 2 | HRC-24CF | 33 | 400 | 43.2 | ZH4100D | 33 | 1500 | 12V | 1800*840*1250 |
| 3 | HRC-30CF | 41.25 | 400 | 54 | ZH4100ZD | 45 | 1500 | 12V | 1800*840*1280 |
| 4 | HRC-40CF | 55 | 400 | 72 | R4105ID | 50.6 | 1500 | 12V | 1850*750*1350 |
| 5 | HRC-50CF | 68.75 | 400 | 90 | R4105ZD | 61.6 | 1500 | 24V | 1850*750*1350 |
| 6 | HRC-64CF | 88 | 400 | 115.2 | R6105ZD | 92.4 | 1500 | 24V | 2480*750*1360 |
| 7 | HRC-75CF | 103.125 | 400 | 135 | R6105ZD | 92.4 | 1500 | 24V | 2480*750*1360 |
| 8 | HRC-90CF | 123.75 | 400 | 162 | 6105AZLD | 121 | 1500 | 24V | 2480*750*1430 |
| 9 | HRC-100CF | 137.5 | 400 | 180 | 6105AZLD | 121 | 1500 | 24V | 2480*750*1430 |
| 10 | HRC-120CF | 165 | 400 | 216 | 6105IZLD | 145 | 1500 | 24V | 2480*750*1430 |
| 11 | HRC-150CF | 206.25 | 400 | 270 | HD6126ZLD11 | 187 | 1500 | 24V | 3150*1050*1650 |
| 12 | HRC-180CF | 247.5 | 400 | 324 | HD6126ZLD12 | 225 | 1500 | 24V | 3150*1050*1650 |
| 13 | HRC-200CF | 275 | 400 | 360 | HD6126ZLD | 247 | 1500 | 24V | 3150*1050*1650 |
Additional Information
- Standard tool kits and complete operation/maintenance manuals included.
- Optional features like automatic transfer switch and water heater available.
- Suitable for various industrial applications.
