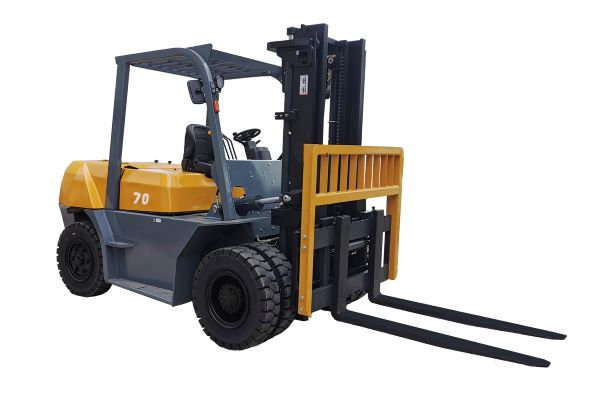

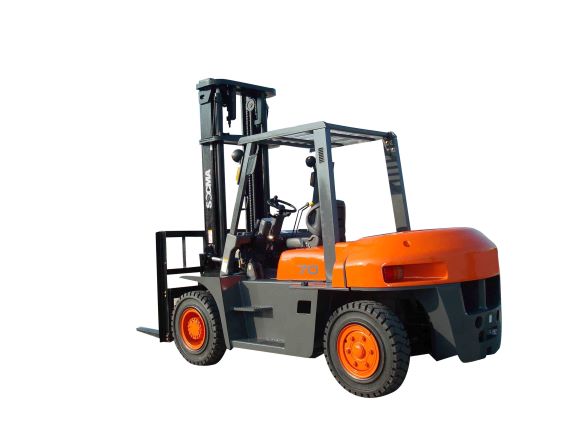

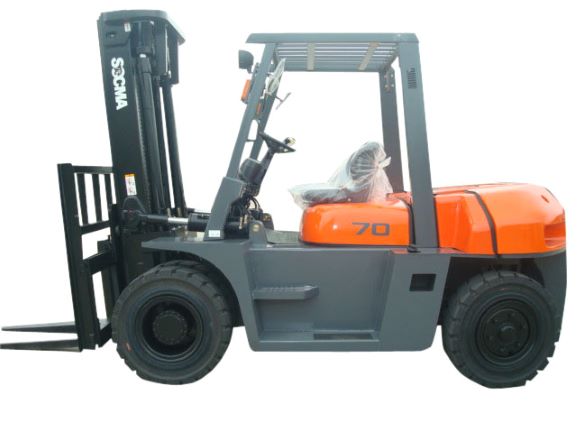

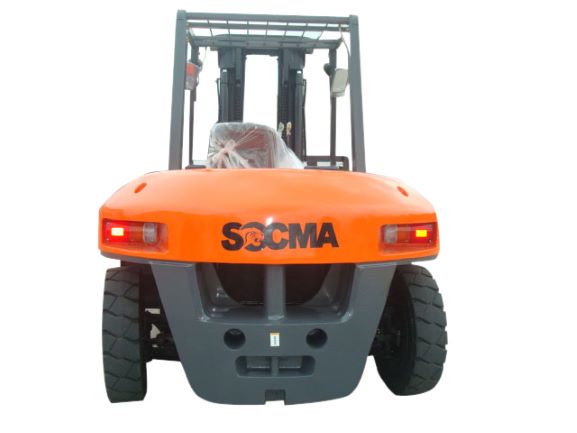

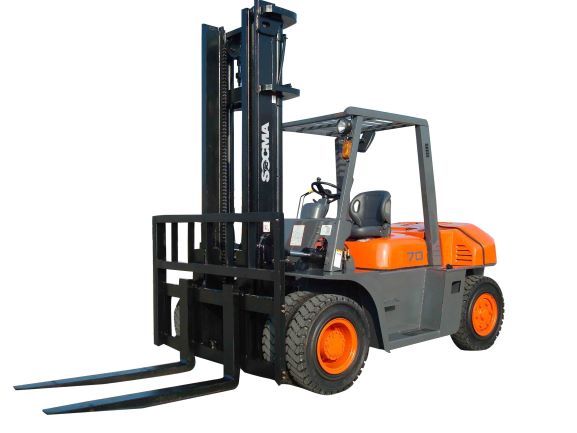

7Ton Diesel Forklift Engine Isuzu work in warehouse Rental logistics center factory
Inquire NowDescription
The 7Ton Diesel Forklift Engine Isuzu is designed for optimal performance in warehouses, rental logistics centers, and factories. This innovative forklift combines high efficiency and energy-saving features, making it an essential tool for modern material handling. With a focus on meeting the diverse needs of managers, drivers, and the goods being transported, Socma has redefined the forklift with advanced hydraulic technology and a range of enhancements.
This forklift is built for durability and reliability, equipped with cutting-edge operational features that boost security and efficiency. Highlights include a uniquely improved uploading system, ergonomic cab design, and a user-friendly operating lever. Every aspect of this forklift is engineered to enhance comfort and usability for operators, making long shifts more manageable.
- Removable side cover for easy inspection and repairs.
- Integrated control box for convenient maintenance.
- Enhanced cooling effect with aluminum heat sink and large double muffler for noise reduction.
- Adjustable suspension system and lower step height for increased driver comfort.
- Innovative safety features, including a double protection brake lever.
Specifications
| Model | Unit | FD70T |
|---|---|---|
| Power Unit | Diesel | |
| Operator Type | Driver/seat | |
| Transmission Box Type | Electronic hydraulic transmission | |
| Rated Capacity | kg | 7000 |
| Load Center | mm | 600 |
| Max. Lifting Height | mm | 3000 |
| Tire Type | Pneumatic Tyre | |
| Tire Number | Front | 4 |
| Tire Number | Rear | 2 |
| Tire Size | Front | 8.25×15-14PR |
| Tire Size | Rear | 8.25×15-14PR |
| Lifting Speed (Loaded) | mm/s | 450 |
| Lifting Speed (Unloaded) | mm/s | 500 |
| Lowering Speed (Loaded) | mm/s | 500 |
| Lowering Speed (Unloaded) | mm/s | 450 |
| Travelling Speed (Loaded) | km/h | 25 |
| Travelling Speed (Unloaded) | km/h | 30 |
| Max. Gradeability (Loaded) | % | 27 |
| Max. Drawbar Pull (Loaded) | kg | 5400 |
| Mast Tilting Angle (Fwd/Bwd) | deg | 6/12 |
| Free Lifting Height | mm | 155 |
| Turning Radius | mm | 3370 |
| Overall Length (with fork) | mm | 4870 |
| Overall Width | mm | 2000 |
| Overhead Guard Height | mm | 2480 |
| Fork Size (L×W×T) | mm | 1220×150×65 |
| Mast Height (Fork lowered) | mm | 2500 |
| Truck Weight | kg | 9200 |
| Fuel Tank Capacity | L | 135 |
| Engine Brand | ISUZU | |
| Engine Model | 6BG1 | |
| Rated Power | kw/rpm | 82.3/2000 |
| Rated Torque | n-m/rpm | 418/1500 |
| Number Of Cylinder | 6 | |
| Displacement | 6.49 |
Additional Information
This forklift not only meets the demands of heavy-duty operations but also ensures user satisfaction through its advanced design and features. With Socma’s commitment to innovation, the FD70T model is a testament to quality engineering that keeps operators safe and productive.
