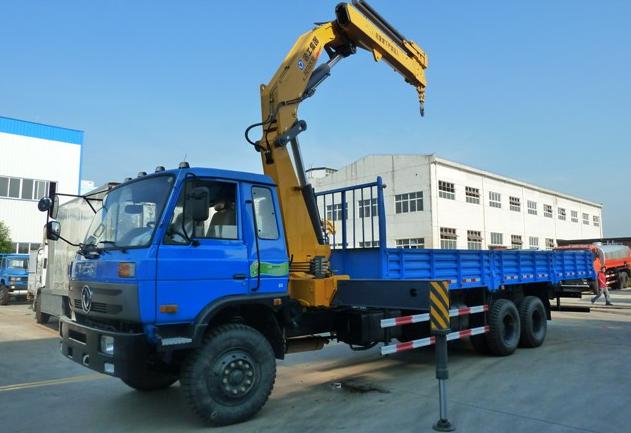

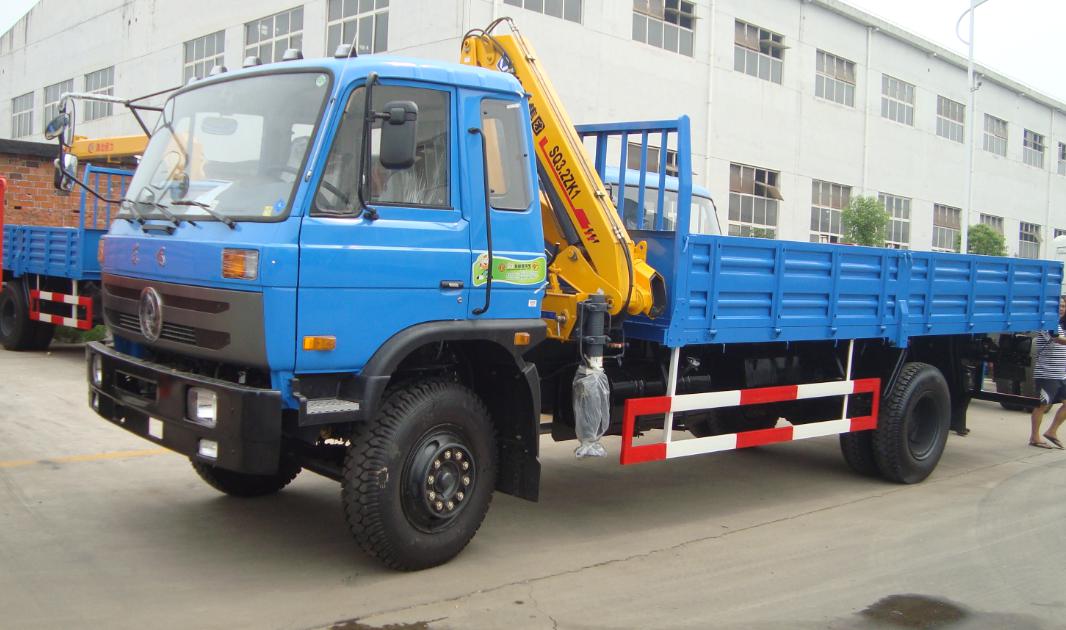

8 tons truck with crane
Inquire NowDescription
The 8 tons truck with crane is an essential vehicle designed for heavy lifting and transportation tasks. It combines robust construction with advanced crane technology, making it ideal for construction sites, logistics, and other demanding environments. This truck features a powerful crane capable of lifting up to 8,000 kg, ensuring efficient handling of loads. The overall dimensions of the truck are 9000 mm in length, 2490 mm in width, and 3600 mm in height, providing ample space for various operations. With a curb weight of 8755 kg and a maximum loading capacity of 15,000 kg, this truck is built to handle substantial weight while maintaining stability and performance.
Specifications
| ITEM | PARAMETER | UNIT | REMARK |
|---|---|---|---|
| OVERALL DIMENSION | 9000 × 2490 × 3600 | MM | |
| CURB WEIGHT | 8755 | KG | |
| MAX LOADING CAPACITY | 15000 | KG | |
| MAX GRADABILITY WHEN FULL LOADING | 32 | DEG | |
| MAX SPEED | 90 | KM/H | |
| FRONT/REAR HANGING | 1250/2050 | MM | |
| CLOSE/DEPARTURE ANGLE | 31/22 | DEG | |
| LEAF SPRING | 8/11+8 | PCS | |
| DRIVE WHEEL | 4*2 | ||
| CHASSIS MODEL | EQ5160GKJ1 | (DongFeng) | |
| ENGINE MODEL | B190-33 | ||
| ENGINE HORSEPOWER | 190 | PS | |
| DISPLACEMENT | 5900 | ML | |
| MAXIMUM TORQUE | 559/1600(N.m/r/min) | ||
| MAXIMUM POWER | 140kW/ 2500 r/min | ||
| NO OF GEARS | 8 forward gears and 1 reverse | ||
| REAR RATIO | 6.33 | ||
| BRAND | XCMG-SQZ160 | Crane | |
| MAX LIFTING CAPACITY | 8000 | KG |
Additional Information
For optimal performance, regular maintenance is recommended, including checks on the crane’s hydraulic system and the truck’s mechanical components. Ensure that the truck adheres to local regulations regarding weight limits and safety standards during operation.
