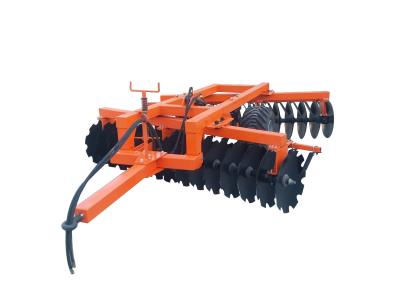

80-100hp tractor trailed hydraulic disc harrow
Inquire NowDescription
The 1BZ Series Hydraulic Heavy Disc Harrow is designed for powerful performance and versatility, making it an essential tool for farmers dealing with heavy clay soils, waste lands, and weedy fields. This robust harrow is specifically engineered for stubble cleaning before farming, effectively breaking up hardened soil and incorporating chopped straw back into the earth. With its ability to level land post-tillage, this heavy-duty disc harrow serves as an excellent alternative to traditional plowing methods. Tailored for tractors with an 80-100hp capacity, it combines efficiency and durability to enhance your farming operations.
Specifications
| Model | Unit | Working Width (mm) | Working Depth (mm) | Q’ty of Disc | Total Weight (kg) | Matched Power (hp) | Linkage |
|---|---|---|---|---|---|---|---|
| 1BZ-1.8 | mm | 1800 | 200 | 16 | 1160 | 70 | Trailed (hole diameter 38mm) |
| 1BZ-2.2 | mm | 2200 | 200 | 20 | 1250 | 80 | Trailed (hole diameter 38mm) |
| 1BZ-2.5 | mm | 2500 | 200 | 24 | 1350 | 90 | Trailed (hole diameter 38mm) |
| 1BZ-3.0 | mm | 3000 | 200 | 28 | 1430 | 100 | Trailed (hole diameter 38mm) |
| 1BZ-3.4 | mm | 3400 | 200 | 32 | 1550 | 120 | Trailed (hole diameter 38mm) |
| 1BZ-4.0 | mm | 4000 | 200 | 36 | 1900 | 150 | Trailed (hole diameter 38mm) |
| 1BZ-5.3 | mm | 5300 | 200 | 48 | 2500 | 180 | Trailed (hole diameter 38mm) |
Additional Information
- Equipped with a dedicated hydraulic system for effortless lifting and lowering of transport wheels.
- Constructed with high-quality multifunctional oil cylinders for reliable operation.
- The compact and durable design ensures a long service life.
- Features a working width ranging from 1.8m to 5.3m, suitable for various farming needs.
