80m/min High speed light keel roll forming machine
Inquire NowDescription
The 80m/min High Speed Light Keel Roll Forming Machine is designed for efficiency and precision in metal processing. This advanced machine operates quietly and allows for easy adjustment of profiles, making it suitable for various applications in construction and manufacturing. Capable of producing angles, studs, tracks, and furring components, this machine offers versatility in its output.
With a maximum feeding width of 135mm, it is engineered to handle 38 main furring profiles and 50 furring profiles seamlessly. Its design ensures minimal noise and material waste, making it an eco-friendly choice for your production needs.

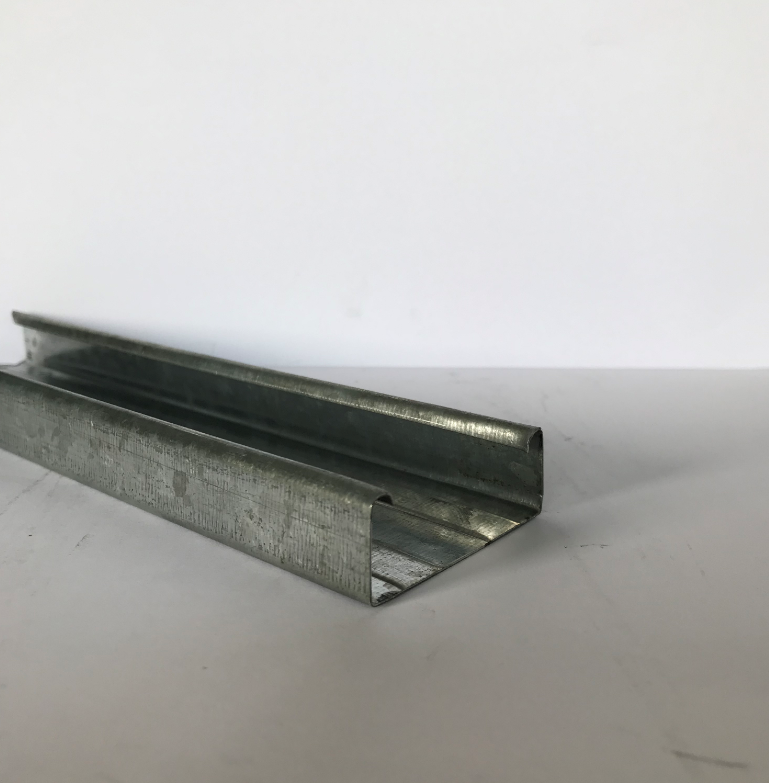

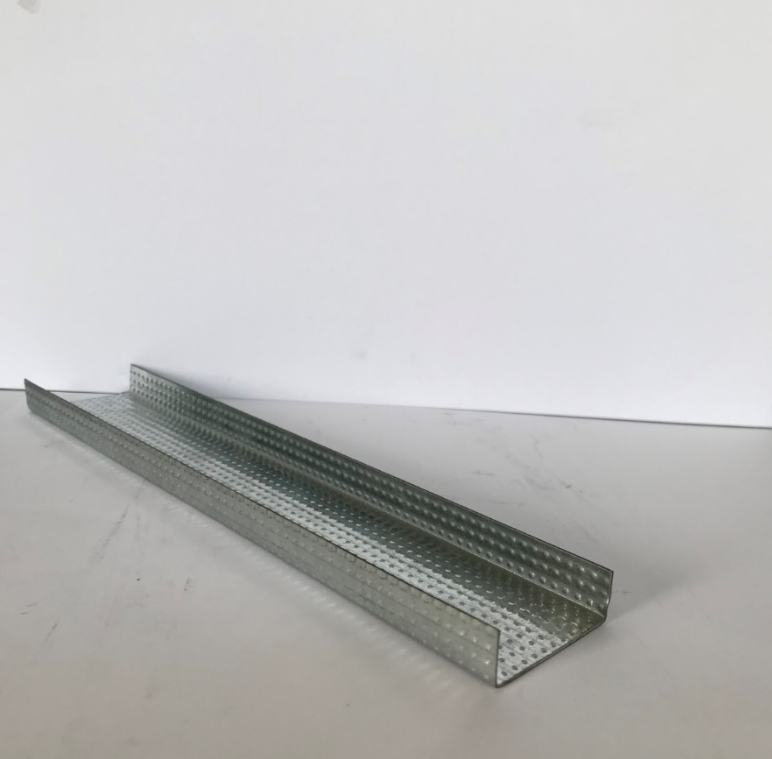

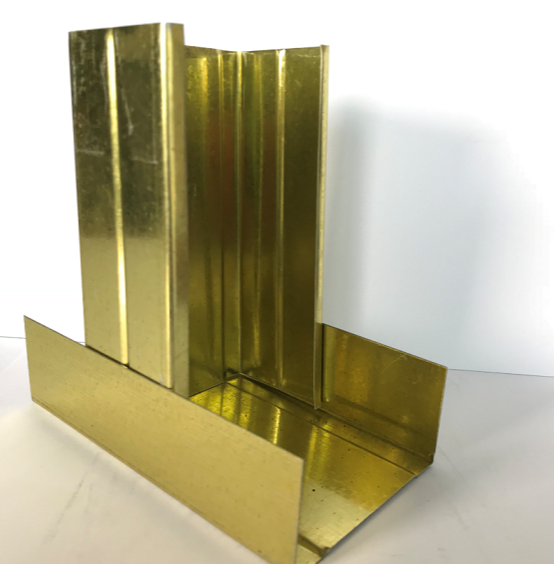

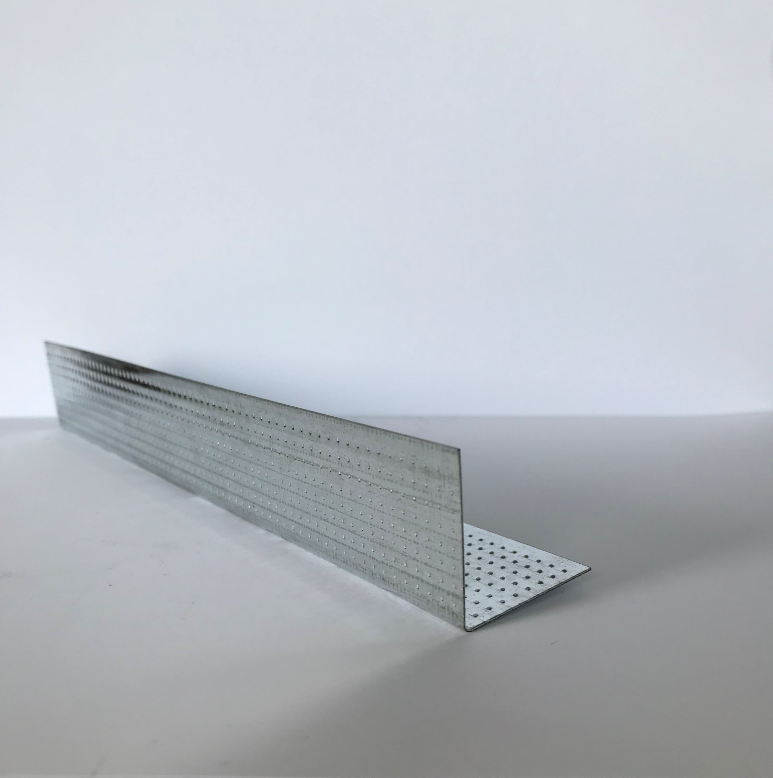

The final products produced include:
| Product Type |
|---|
| Angle |
| Stud and Track |
| 38 Main Furring |
| Furring |

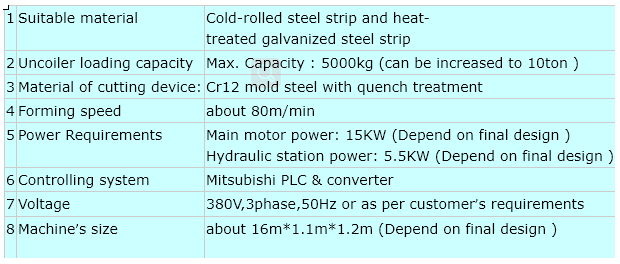

Specifications
| Attribute | Details |
|---|---|
| Max Feeding Width | 135 mm |
| Production Speed | 80 m/min |
| Output Types | Angle, Stud, Track, 38 Main Furring, 50 Furring |
Additional Information

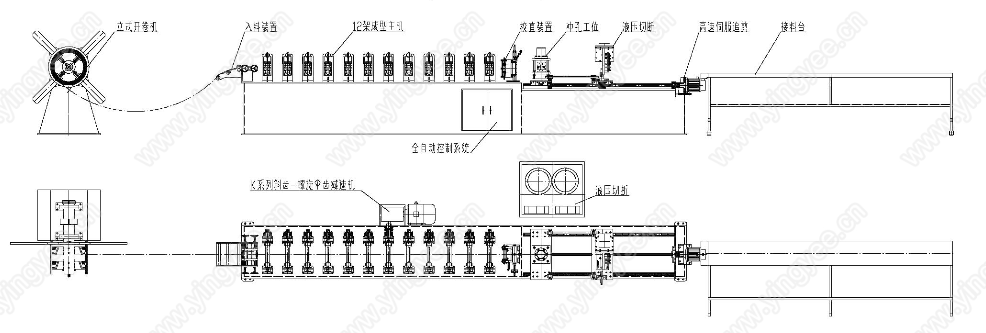

Technical Process and Features:
- Sealed gear box for enhanced durability.
- Suspended structure for stability.
- Turbine vortex rod drive for efficient operation.
- Easy mold changes, ensuring quick setup.
- Noise-free operation, reducing workplace disturbances.
- Double head decoiler for simple handling.
