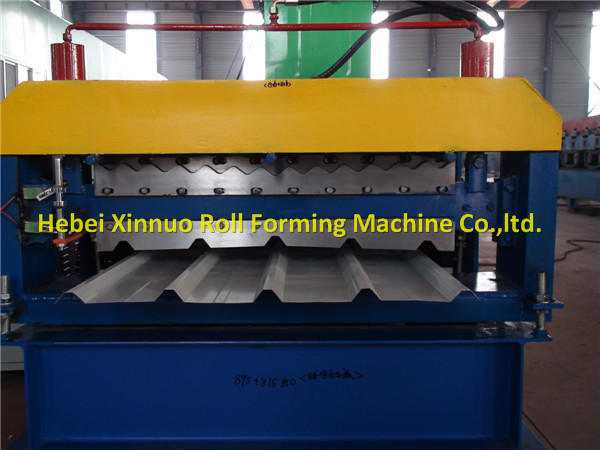

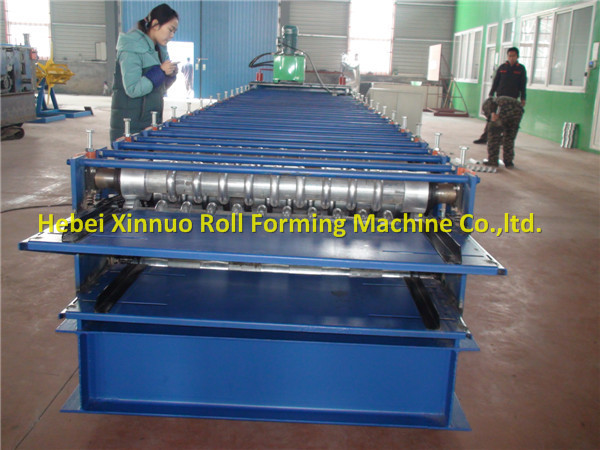

836+836 double layer machine for manufacturing
Inquire NowDescription

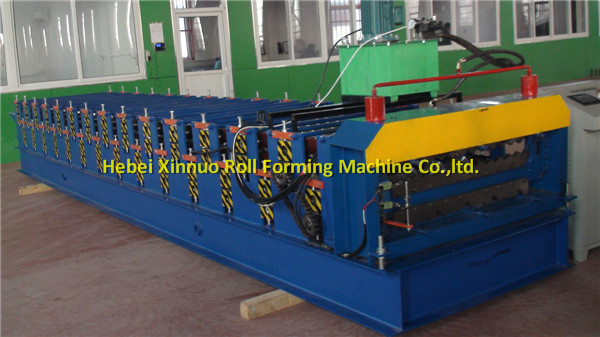

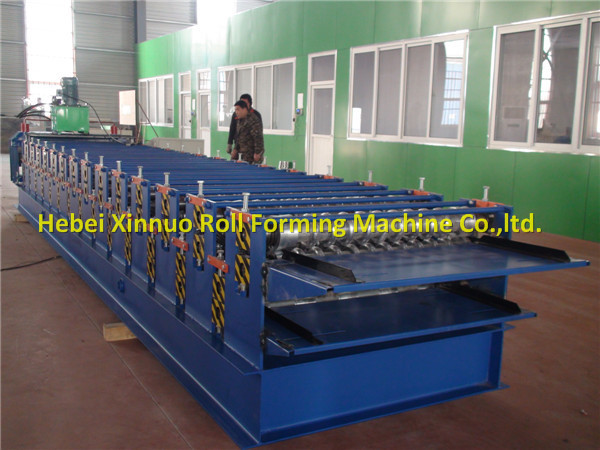

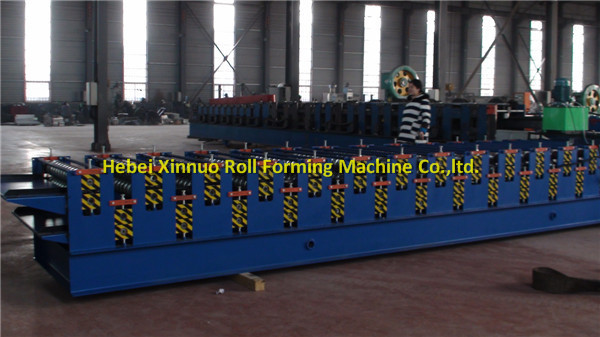

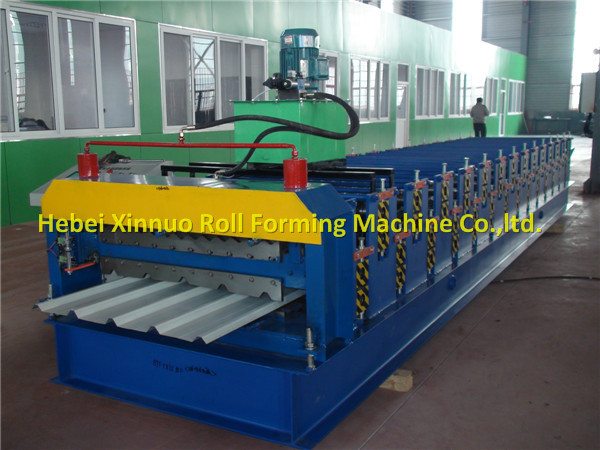

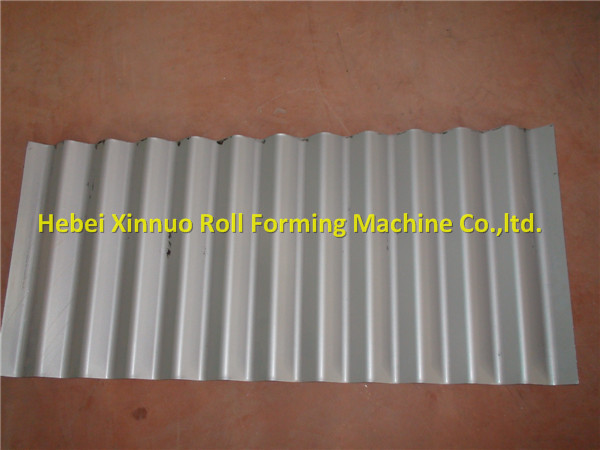

The 836+836 double layer roofing machine is a state-of-the-art equipment designed for manufacturing corrugated sheets efficiently. This advanced machine combines two types of tiles seamlessly, featuring a reasonable structure and an aesthetically appealing design. It is particularly advantageous for customers with limited operational space, as it saves space and is easy to operate. With its automatic PLC frequency control system and a user-friendly text screen, this machine is ideal for high-volume production of roofing materials.
Specifications
| Parameter | Details |
|---|---|
| Control System | Automatic PLC frequency control, text screen |
| Roller Steps | 12/18 rows |
| Main Power | 5 kW |
| Pump Power | 4 kW |
| Diameter of Roller | Φ80 mm |
| Max Speed | 12 m/min |
| Feeding Width | 1250 mm |
| Effective Width | 925/1080 mm, tolerance ±1/100 |
| Thickness of Plate | 0.35-0.8 mm |
| Dimension of Main Roll Former | 8600 mm × 1300 mm × 1450 mm |
| Roller Material | 45# steel, CNC-machined, heat treatment, buffing, surface for electroplating chromium 0.05 mm |
Additional Information

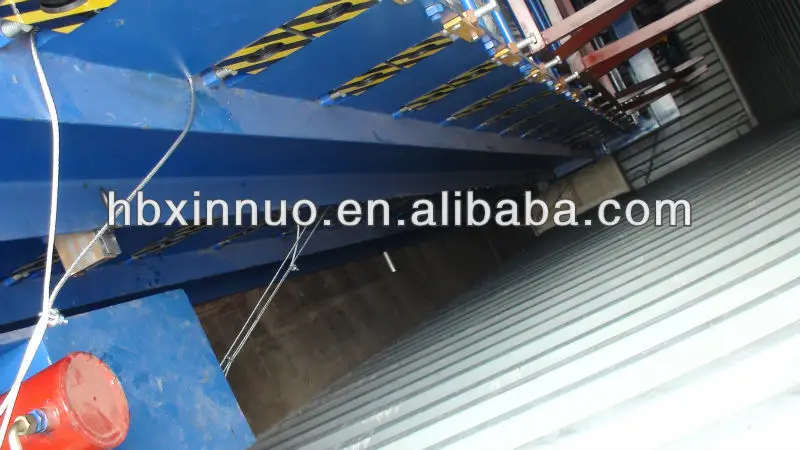

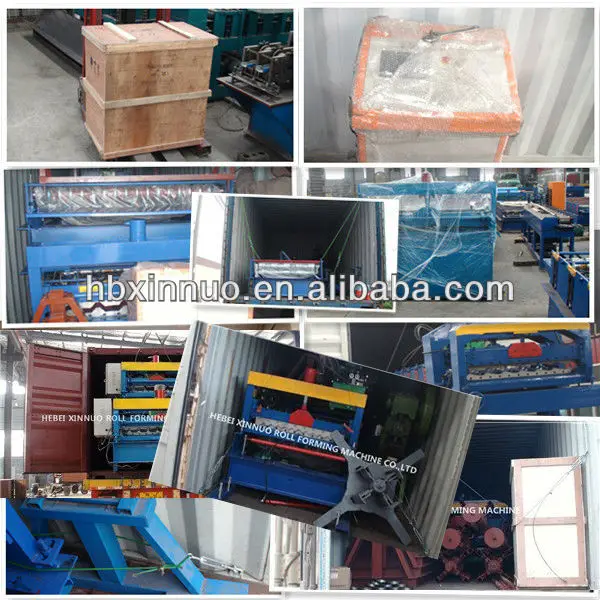

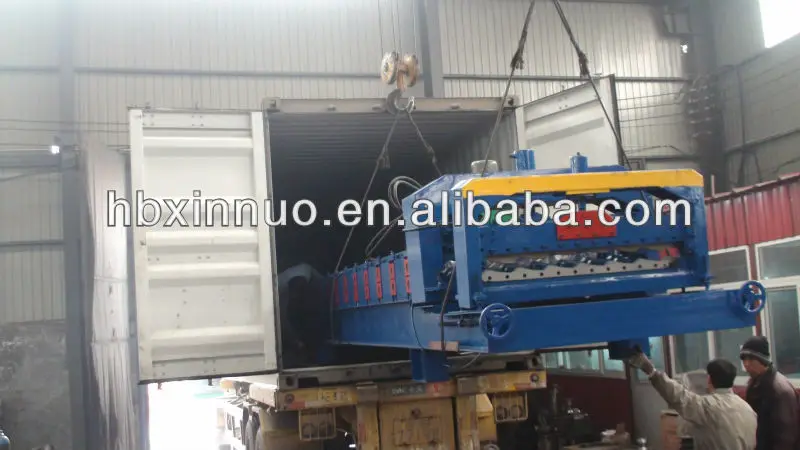

Packaging Details: The main machine is nude, while the computer control box is packed with a wooden frame.
Delivery Detail: 20 days.
After-sales Service Provided: Engineers available to service machinery overseas.
