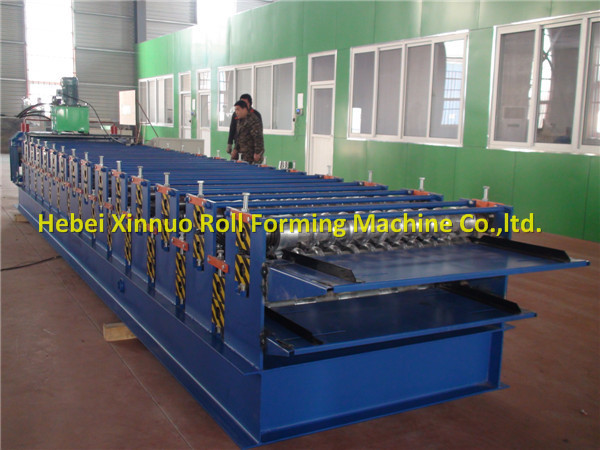

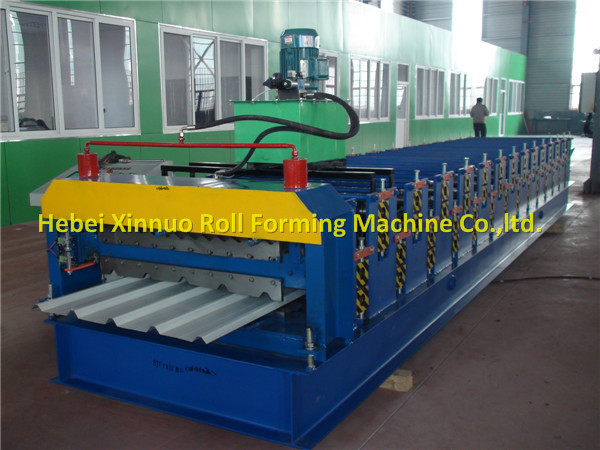

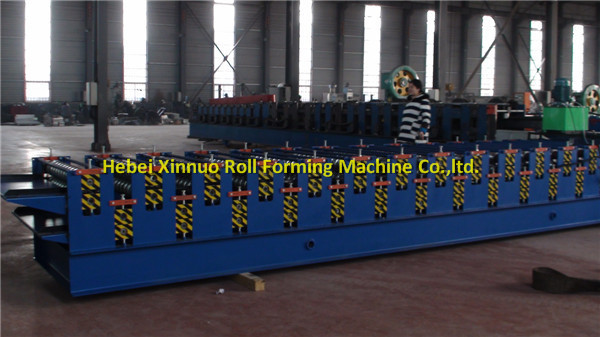

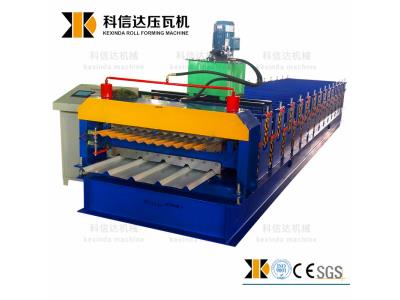

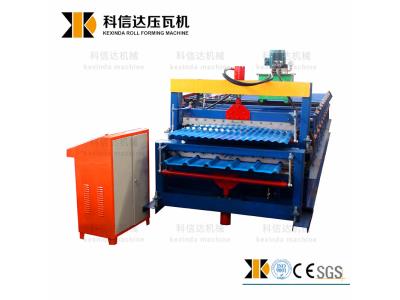

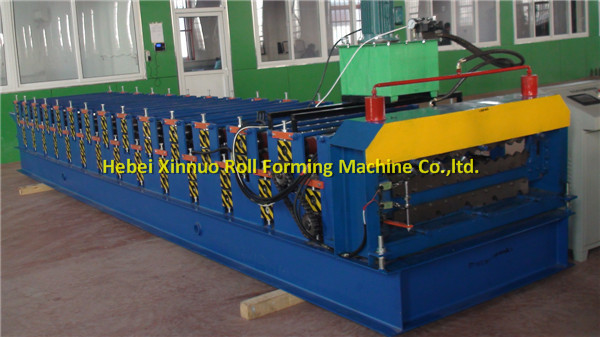

836+836 double layer machine for manufacturing
Inquire NowDescription

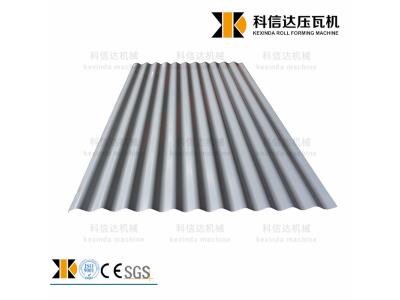

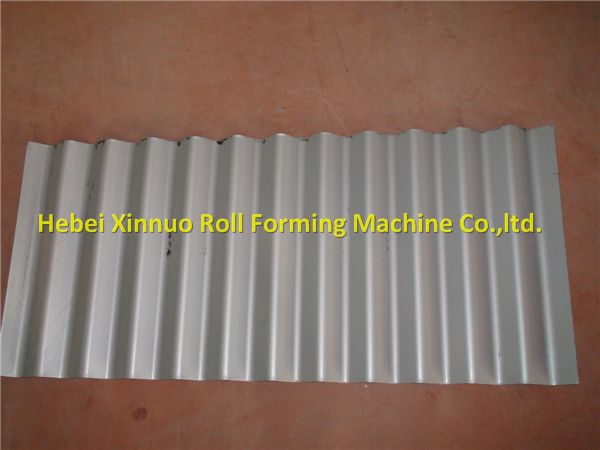

The China 836+836 double layer machine is a state-of-the-art roofing machine designed for the efficient manufacturing of corrugated sheets. This robust machine combines two types of tiles seamlessly, boasting a rational structure and an aesthetically pleasing design. Its compact size makes it particularly suitable for operations with limited space, while its user-friendly interface ensures ease of operation. The 836+836 model is especially popular among customers seeking high-quality production solutions without compromising on space or efficiency.
Specifications
| Parameter | Details |
|---|---|
| Control System | Automatic PLC frequency control, touch screen |
| Roller Steps | 12/18 rows |
| Main Power | 5 kW |
| Pump Power | 4 kW |
| Diameter of Roller | Φ80 mm |
| Max Speed | 12 m/min |
| Feeding Width | 1250 mm |
| Effective Width | 925/1080 mm (tolerance ±1/100) |
| Thickness of the Plate | 0.35-0.8 mm |
| Dimension of Main Roll Former | 8600 mm × 1300 mm × 1450 mm |
| Roller Material | 45# steel, CNC-machined, heat-treated, buffed, and electroplated with chromium (0.05 mm) |
Additional Information
Packaging Details: The main machine is shipped nude, while the computer control box is securely packed within a wooden frame.
Delivery Detail: The estimated delivery time is 20 days.
After-sales Service Provided: Engineers are available to service machinery overseas.

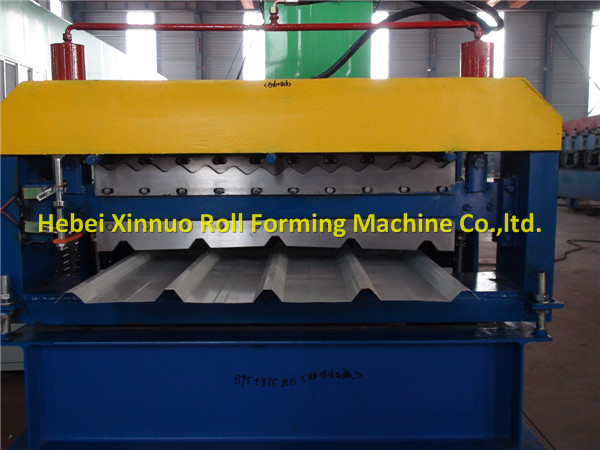

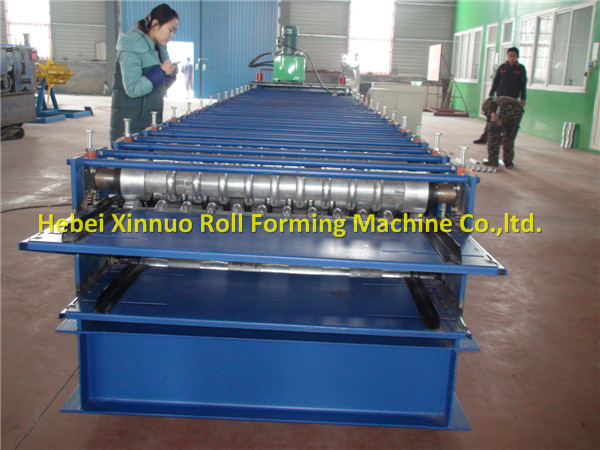

Images
