Description
The 86 Series BLDC Motor is a high-performance brushless DC motor designed for applications requiring high torque and efficiency. With a powerful output range of 200 to 780W, this motor delivers a maximum torque of up to 2.5Nm, making it ideal for various industrial uses. Its wide speed range ensures adaptability to different operational needs, while the robust construction promises longevity and reliability in performance.
Specifications
| Winding Type | Star |
|---|---|
| Hall Effect Angle | 120 degree electrical angle |
| Shaft Run Out | 0.025mm |
| Insulation Class | Class B |
| Dielectric Strength | 500VDC for one minute |
| Ambient Temperature | -20—+40℃ |
Electrical Specifications
| Model | 86DMW70-4830 | 86DMW80-4830 | 86DMW90-4830 | 86DMW105-4830 | 86DMW130-4830 |
|---|---|---|---|---|---|
| Voltage (V) | 48 | ||||
| Number of Poles | 8 | ||||
| Rated Power (W) | 200 | 300 | 400 | 550 | 780 |
| No Load Speed (rpm) | 3500 | ||||
| Rated Torque (Nm) | 0.67 | 1.0 | 1.3 | 1.8 | 2.5 |
| Rated Speed (rpm) | 3000 | ||||
| Rated Current (A) | 5.5 | 8.6 | 11 | 14.8 | 20 |
| Torque (max) (Nm) | 2 | 3.0 | 4 | 5.4 | 7.5 |
| Back-EMF Constant (V/Krpm) | 9.8 | 9.8 | 9.8 | 9.8 | 10 |
| Torque Constant (Nm/A) | 0.13 | 0.13 | 0.13 | 0.13 | 0.14 |
| Resistance (ohm) | 0.43 | 0.32 | 0.21 | 0.15 | 0.1 |
| Weight (Kg) | 1.8 | 2.2 | 2.8 | 3.2 | 4.2 |
| Length (mm) | 70 | 80 | 90 | 105 | 130 |

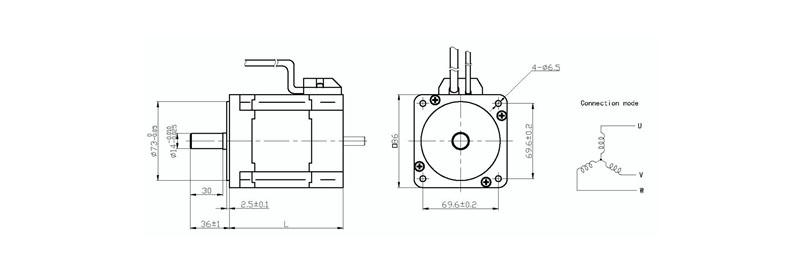

Wire Diagram
| Lead No. | Lead Color | Lead Gauge | Function |
|---|---|---|---|
| 1 | RED | 14AWG UL1569 | Phase U |
| 2 | YEL | Phase V | |
| 3 | BLA | Phase W | |
| 4 | RED | 26AWG UL1569 | +5V |
| 5 | BLU | Hall A | |
| 6 | GRE | Hall B | |
| 7 | WHI | Hall C | |
| 8 | BLA | GND |
