Description
Aerial Bundled Cable is specifically engineered for residential and rural applications, providing a robust solution to mitigate bushfire hazards. Its advanced XLPE covering is fortified with a high concentration of carbon black, ensuring exceptional UV resistance. This cable is ideal for environments where reliability, safety, and cost-effective installation are paramount. However, it is best suited for short spans due to its increased weight.
Application: Designed to enhance safety in residential and rural areas, this Aerial Bundled Cable plays a crucial role in reducing bushfire risks.
Applicable Standards: Manufactured in compliance with IEC, BS, ASTM, and other standards, or tailored to meet specific client requirements.
Specifications
| Specification | Value |
|---|---|
| Cable Type | 3×50+54.6+1×16 mm² |
| Permanent Current Carrying Capacity | 168A |
| Resistance at 20°C | 0.641 Ohm/km |
| Short-Circuit Current (1 sec) | 2.7 kA |
| Maximum Conductor Temperature (Continuous) | 90°C |
| Maximum Temperature in Short-Circuit (5 sec) | 130°C |
| Outer Diameter of Cable | 27 mm |
| Minimum Insulation Thickness | 1.5 mm |
| Conductor Diameter | 8.2 mm |
| Net Weight (Approx.) | 750 kg/km |

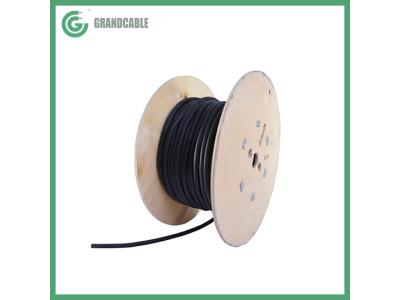

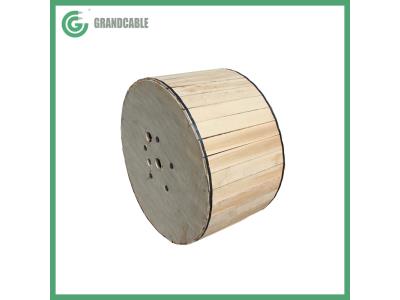

| Standard Length of Cable Reel | 1000 meters |
Additional Information
Ensure proper handling and installation to maintain the integrity of the cable’s performance. Regular inspections are recommended to check for any signs of wear or damage.
