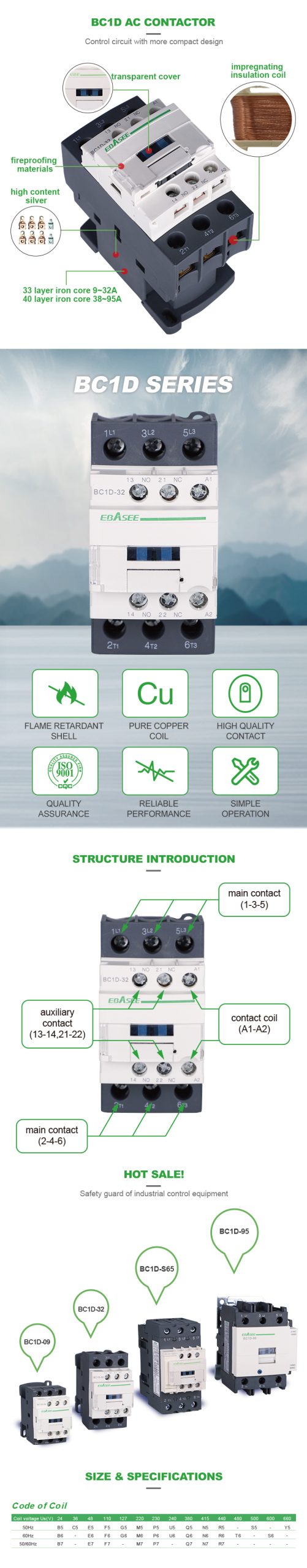

AC Contactor BC1D
Inquire NowAC contactor mainly applies to the circuit of AC 50/60Hz,and rated insulation voltage 660V,rated operating voltage up to 690V. When used in AC-3,and rated operational voltage 380V and rated current up to 9A,for long distance breaking circuit and frequency starting or control the motor.
Product Briefing
Function
AC contactor mainly applies to the circuit of AC 50/60Hz,and rated insulation voltage 660V,rated operating voltage up to 690V. When used in AC-3,and rated operational voltage 380V and rated current up to 9A,for long distance breaking circuit and frequency starting or control the motor.
Technical Parameter
|
Model Name |
BC1D AC magnetic contactors |
|
|
Standard |
IEC60947-4 |
|
|
Poles |
3P 4P |
|
|
Rated current In(A) |
9 12 18 25 32 40 50 65 80 95Amp |
|
|
Rated voltage Un(V) |
230V 240V 380V |
|
|
Frequency of coil |
50Hz, 60Hz, 50/60Hz |
|
|
Number of auxiliary contact |
40 /04 / 31/ 13/ 22 |
|
|
Mechanical life (times) |
10000000 |
|
|
Protection grade |
IP20 |
Features
-
This BC1D AC contactor with a clear dust cover for protection and more pretty.
-
Combined with the auxiliary contact block, time delay and mechanical interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, stardelta starter
-
With the thermal relay ,it combined into the electromagnetic starter.
-
Full set accessories
Auxiliary contact group Top hung/side hung
Time-delay auxiliary contact
Applicable Working
|
Ambient temperature |
-5~+40℃, the average value cannot exceed to +35℃ within 24h |
|
|
Altitude |
≤2,000m |
|
|
Relative humidity |
≤95% |
|
|
Pollution level |
II. |
|
|
Installation location |
Mount on the place where has no obvious vibration or impact |
