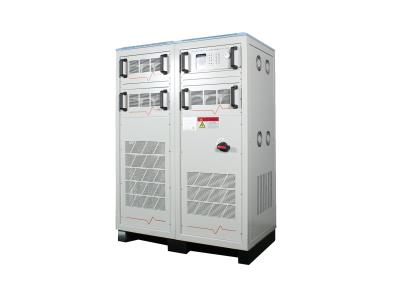

AC Power Source 500VA-2000KVA
Inquire NowDescription
The AFC Series AC Power Source is a state-of-the-art device designed to deliver reliable and clean electrical output for various industrial applications. With a power range of 500VA to 2000kVA, it supports both single phase (500VA-100kVA) and three phase (10kVA-2000kVA) outputs. This power source features a user-friendly interface with a lock key, shortcut key, and knob for easy operation. It is equipped with a 4 LED display that shows real-time measurements of voltage, current, frequency, and power factor, ensuring users can monitor performance at a glance.
Utilizing advanced IGBT/SPWM technology, the AFC Series provides a pure sine wave output with a Total Harmonic Distortion (THD) of less than 1% at resistive loads. The device offers automatic voltage range switching between 0-150V and 150.1-300V, or a high range locked at 1-300V. Additionally, it includes comprehensive protection features against overvoltage, overcurrent, overload, input undervoltage, and overheating, complete with corresponding error codes for easy troubleshooting.
This versatile AC power source allows for independent loading of each phase and can accommodate loads starting at one-third of its rated power. It also includes adjustable output voltage and frequency, with the capability to select between 50Hz and 60Hz, and an optional range of 45-400Hz. For remote control, a standard RS232 interface is available, with optional RS485 and GPIB interfaces. The power-off memory function ensures that the last output parameters are remembered automatically, enhancing user convenience.
Specifications
| Attribute | Details |
|---|---|
| Power Range | 500VA – 2000kVA |
| Single Phase Output | 500VA – 100kVA |
| Three Phase Output | 10kVA – 2000kVA |
| Voltage Display | 4 LED display (voltage, current, frequency, power/PF) |
| Voltage Range | 0-150V / 150.1-300V (Auto switch) or 1-300V (High range locked) |
| Protection Features | Over voltage, over current, overload, input under voltage, over temperature |
| Output Voltage and Frequency | Adjustable (50Hz, 60Hz, 45-65Hz, optional 45-400Hz) |
| Control Interface | Standard RS232, optional RS485 and GPIB |
| Power-Off Memory | Remembers last output parameters |
