Description

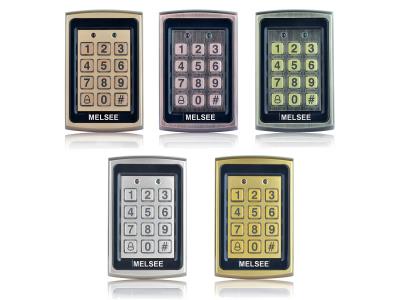

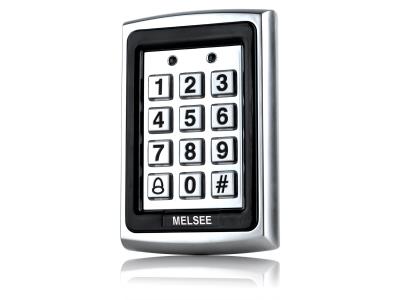

The MS 810 is a robust metal access control system designed for high-security environments. Its waterproof and dust-proof features ensure reliable operation in various conditions, while the button keypad offers a user-friendly interface. The device supports multiple access modes including PIN, PROX, and a combination of both, accommodating up to 1000 users. The adjustable strike time ranges from 0 to 255 seconds, allowing for customizable access control. Available in a range of colors including golden, silver, white, red, and green, this access control system is not only functional but also visually appealing.

Specifications

Attribute Details
Material High quality Die-cast Zinc Alloy
Working Temperature -20℃ to 70℃
RH ≤ 95%
Working Current ≤ 120mA
Standby Current ≤ 50mA
Working Voltage 12VAC
Dimension 118 × 75 × 26 (mm)
Application Card Mode EM 125K Hz ID Card
Effective Distance 5~10cm
Installation Surface mounted
IP Grade IP67
