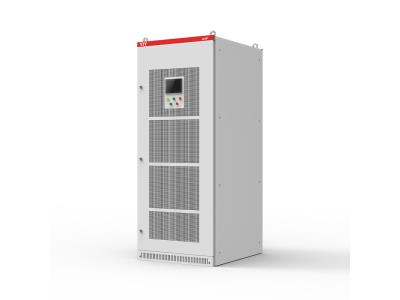

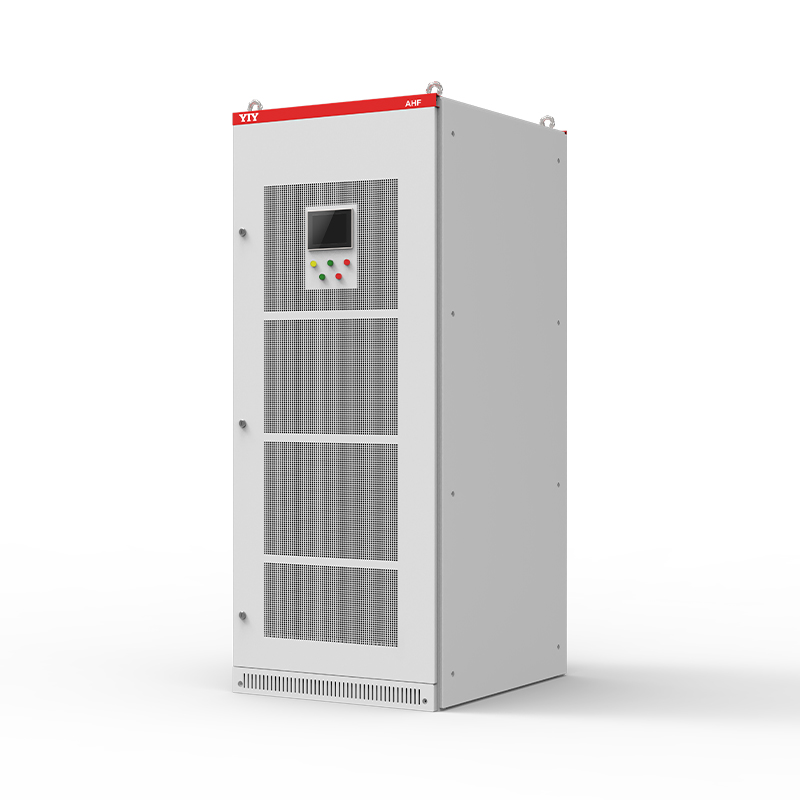

Active Harmonic Filter AHF Modular/FCL Three Phase 50A 75A 400V
Inquire NowDescription

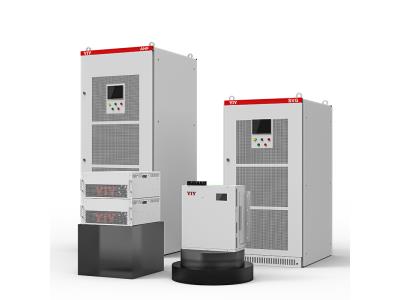

The Active Harmonic Filter (AHF) Modular/FCL is a state-of-the-art solution designed to tackle power quality issues caused by waveform distortions. It offers reactive power compensation, harmonic control, and three-phase unbalance control, making it essential for various applications across multiple industries. With a range from 50A to 600A and a voltage rating of 400V, this compact and flexible modular system provides an instantaneous response to power quality problems, enhancing equipment lifetime and boosting process reliability.
Active harmonic filters deliver high performance at low or high voltage levels, ensuring compliance with stringent power quality standards and grid codes. This includes features such as effective harmonic compensation, improved system stability, and reduced energy losses, which are critical in today’s demanding power environments. The modular design allows for tailored solutions to specific power quality requirements, making it an ideal choice for optimizing electrical systems.
Specifications
| Feature | Specifications |
|---|---|
| Max Neutral Wire Current | 50A / 75A / 100A / 150A |
| Nominal Voltage | AC380V ±20% |
| Rated Frequency | 50Hz ±5% |
| Network | Three phase three or four wire |
| Response Time | < 40ms |
| Harmonic Compensation Rate | > 92% |
| Harmonics Filtering | 2nd to 50th Harmonics |
| Machine Efficiency | > 97% |
| Switching Frequency | 16kHz |

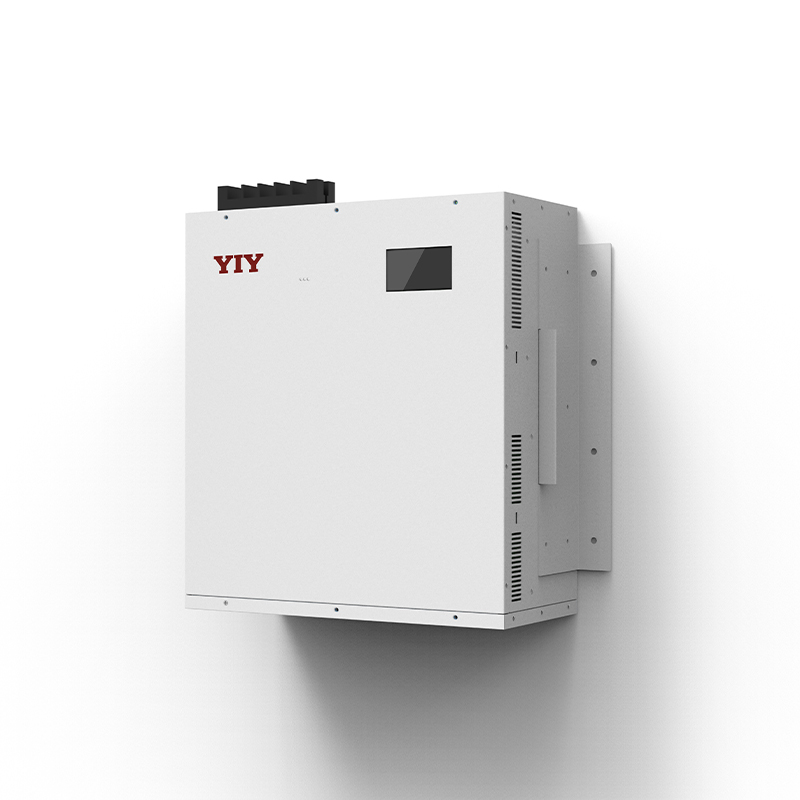

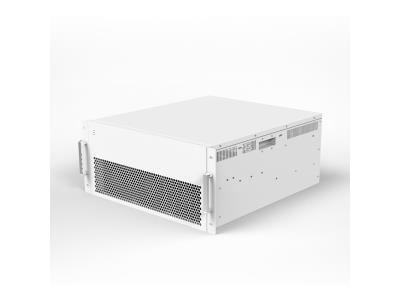

| Installation | Rack/wall hanging |
| Protection Grade | IP20 |
| Protection Functions | Overload, over-voltage, frequency anomaly, and more |
Additional Information
- Altitude without derating: <2000m
- Operating Temperature: -20 ~ +50℃
- Humidity: <90% RH
- Noise Level: <60dB
