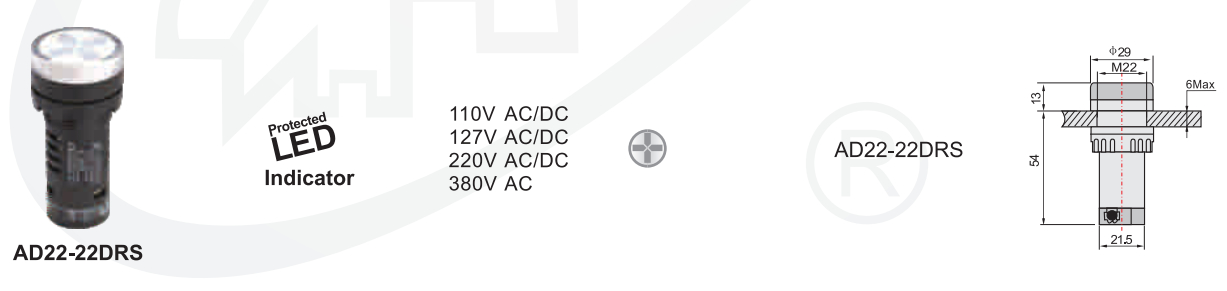

AD22-22DRS 22mm LED 12V Plastic Indicator Light LED Signal Light
Inquire NowDescription
The AD22-22DRS is a 22mm LED 12V Plastic Indicator Light designed to replace traditional incandescent and neon lamps. With its advanced LED shining chip technology, this indicator light boasts a long lifespan, low power consumption, and a compact form factor. Engineered for reliability and aesthetic appeal, the AD22 series offers high brightness and durability while being manufactured to the highest standards. Its polycarbonate lampshade is designed for superior impact resistance and surge protection, with a bolt-type connector for enhanced safety and convenience. This product is well-received by clients and meets various international standards.
Specifications
| Attribute | Value |
|---|---|
| Main technical target | 2.5kV (AC valid value), 1min |
| Insulated resistance | ≥2MΩ |
| Voltage wave allowed by AC indicator | ±20% |
| Continual working life | ≥30000h |
| Brightness | ≥60cd/m² |
| Index of leakage CT1 | ≥100 |
| Protection grade | IP40 (can be made up to IP67) |
| Using frequency |
Additional Information
- High brightness for visibility in various conditions.
- Low energy consumption enhances sustainability.
- Compact design suitable for various applications.
