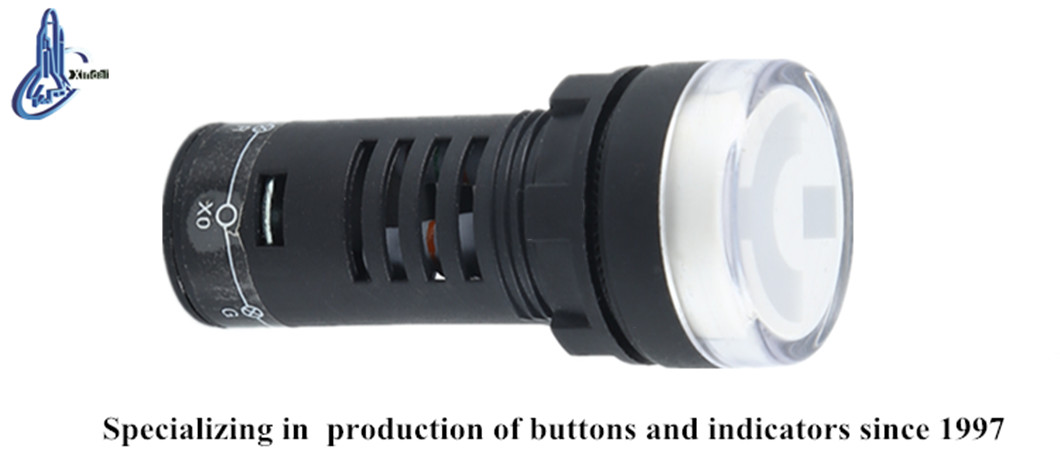

AD22-22DRY LED Mark Symbol Photos Indicator Light Pilot Lamp
Inquire NowDescription
The AD22-22DRY LED Mark Symbol Photos Indicator Light Pilot Lamp is a state-of-the-art indicator solution designed to replace traditional incandescent and neon lamps. Utilizing advanced LED technology, this product boasts a long lifespan, low energy consumption, and a compact design. With high brightness and exceptional reliability, the AD22 series enhances any application requiring visual signaling. Its polycarbonate lampshade offers superior anti-surge performance, while the bolt-type connector ensures safety and convenience. The AD22-22DRY is meticulously engineered to meet both aesthetic demands and international standards, making it a preferred choice for clients seeking quality and durability.
Specifications
| Feature | Details |
|---|---|
| Main technical target | Voltage of working frequency: 2.5kV (AC valid value), 1min |
| Insulated resistance | ≥2MΩ |
| Voltage wave allowed by AC indicator | ±20% |
| Continual working life | ≥30000h |
| Brightness | ≥60cd/m² |
| Index of leakage CT1 | ≥100 |
| Protection grade | IP40 (can be made up to IP67) |
| Using frequency | N/A |
Additional Information
With innovative design and construction, the AD22-22DRY LED Mark Symbol Photos Indicator Light is perfect for various applications in industrial and commercial environments.
Product Show
