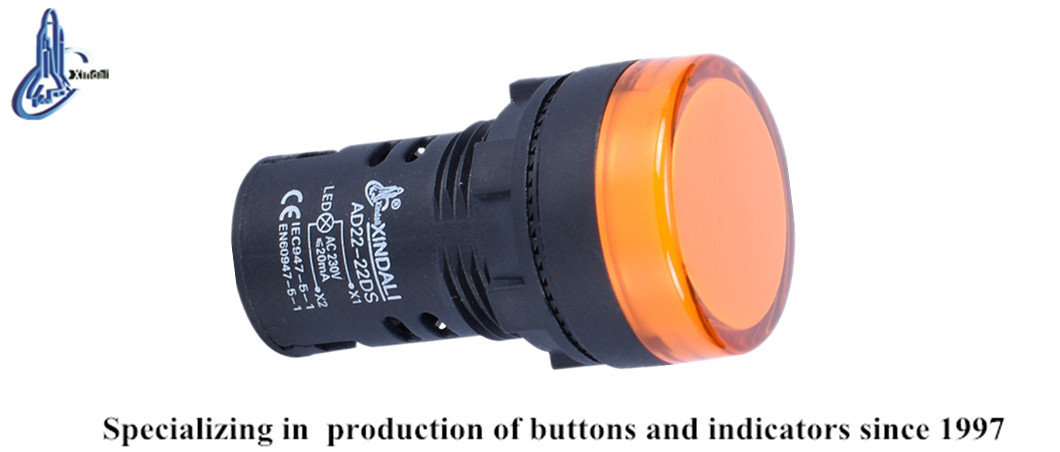

AD22-22DS Yellow Good Quality Indicator Lamp Industry LED Pilot Lamp

Inquire Now

Description

The AD22-22DS Yellow Good Quality Indicator Lamp is a cutting-edge LED pilot lamp designed for industrial applications. This innovative product utilizes high-quality LED shining chips, delivering exceptional brightness while significantly reducing power consumption compared to traditional incandescent and neon lamps. The AD22 series boasts a compact design, lightweight structure, and a long operational life, making it a reliable choice for various indicator needs.

Engineered for high performance, the AD22-22DS offers impressive reliability and aesthetic appeal. Its polycarbonate lampshade is not only durable but also provides excellent anti-surge protection. The lamp is designed with user convenience in mind, featuring a bolt-type connector for enhanced safety. Customers appreciate the well-crafted design and versatility of the AD22 series, making it suitable for diverse industrial environments.

Specifications

Feature Details
Main Technical Target
Voltage of Working Frequency 2.5kV (AC valid value), 1 min
Insulated Resistance ≥2MΩ
Voltage Wave Allowed by AC Indicator ±20%
Continual Working Life ≥30000h
Brightness ≥60cd/m²
Index of Leakage CT1 ≥100
Protection Grade IP40 (can be made up to IP67)
Using Frequency

Product Show
