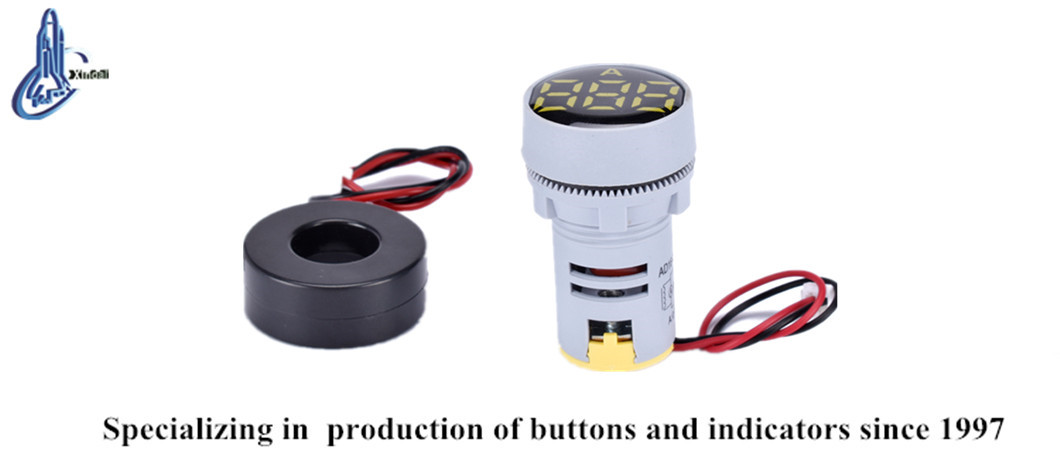

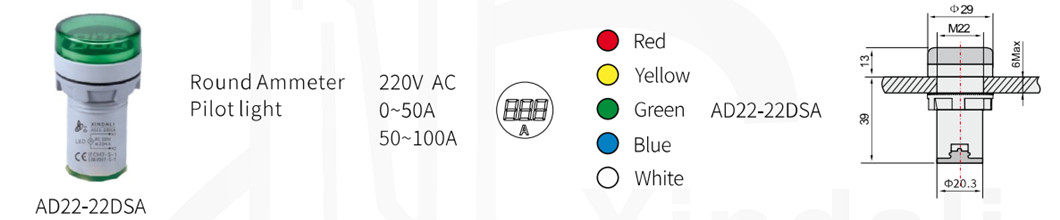

AD22-22DSA Display LED Voltage LED Indicator Light with Voltage Meter
Inquire NowDescription
The AD22-22DSA Display LED Voltage Indicator Light with Voltage Meter is a state-of-the-art solution for accurately measuring and displaying voltage levels. Designed for reliability and durability, this LED indicator features a long lifespan, low energy consumption, and compact design, making it an ideal replacement for older incandescent and neon lamps. The AD22 series is crafted with high brightness, aesthetic appeal, and meticulous manufacturing, ensuring it meets the high standards of modern users.
This product is well-regarded by customers for its exceptional performance and design. The polycarbonate lampshade provides enhanced anti-surge capabilities, making it safe and convenient for various applications. The AD22-22DSA is also available in multiple variants, including double-color lamps and mini indicators, ensuring it meets diverse operational needs.
Specifications
| Specification | Value |
|---|---|
| Voltage of working frequency | 2.5kV (AC valid value), 1 min |
| Insulated resistance | ≥2MΩ |
| Voltage wave allowed by AC indicator | ±20% |
| Continual working life | ≥30000h |
| Brightness | ≥60cd/m² |
| Index of leakage CT1 | ≥100 |
| Protection grade | IP40 (can be made up to IP67) |
| Using frequency | – |
Additional Information
This LED indicator light is enhanced by a bolt-type connector for improved safety and convenience in installation. Its design aligns with international standards, and it is suitable for various industrial applications.
