Description

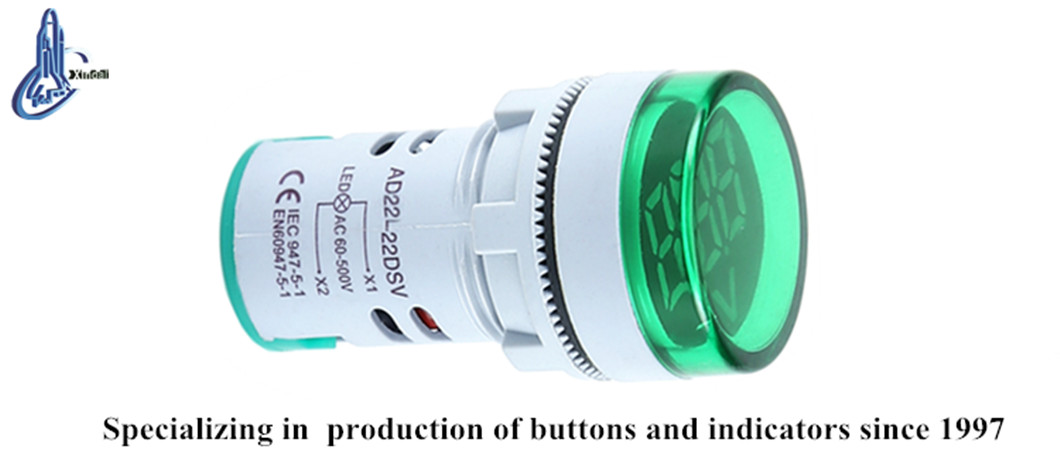

The AD22-22DSV Waterproof Mini LED Digital Display is a state-of-the-art voltage meter designed for precision and durability. This digital indicator operates at a voltage of up to 100V, making it suitable for various applications across different industries. Utilizing an advanced LED shining chip as its light source, the AD22 series boasts a long lifespan, low power consumption, and a compact, lightweight design. This innovative product effectively replaces older incandescent and neon lamps, providing enhanced brightness and reliability.
Crafted with high-quality materials, the AD22-22DSV features a polycarbonate lampshade known for its high intensity and superior anti-surge performance. Its ergonomic bolt-type connector ensures safe and convenient use. With an IP40 protection grade, this voltage meter can be customized to reach IP67, ensuring it meets rigorous environmental standards. The AD22 series has been well-received by customers for its aesthetic appeal and functionality, making it the perfect choice for users seeking both style and performance in their digital indicators.
Specifications
| Specification | Details |
|---|---|
| Voltage of Working Frequency | 2.5kV (AC valid value), 1min |
| Insulated Resistance | ≥2MΩ |
| Voltage Wave Allowed by AC Indicator | ±20% |
| Continual Working Life | ≥30000h |
| Brightness | ≥60cd/m² |
| Index of Leakage CT1 | ≥100 |
| Protection Grade | IP40 (up to IP67 available) |
| Using Frequency | Not specified |
Additional Information
- High brightness and good reliability.
- Customized options available to meet various international standards.
