Description

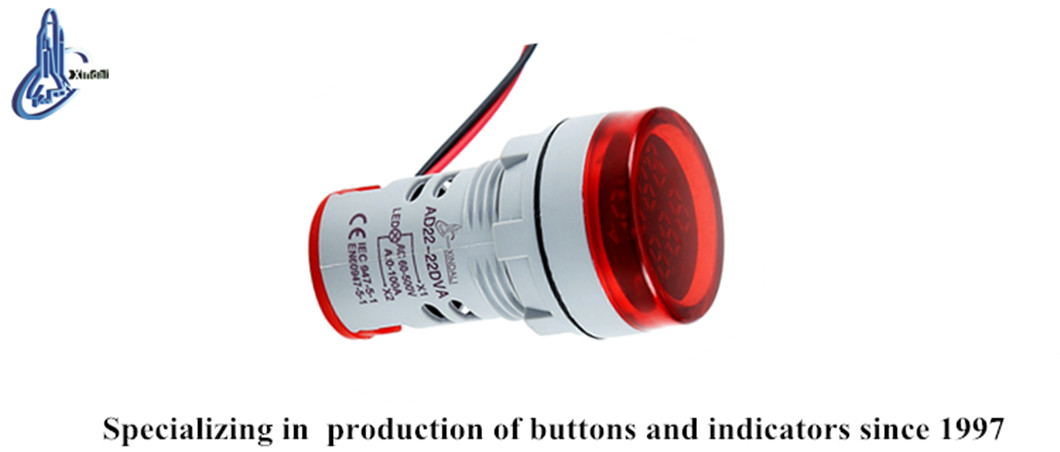

The AD22-22DVA Mini LED Display AC Digital Indicator Lamp Voltmeter is a cutting-edge solution designed for precision voltage monitoring in various applications. Utilizing advanced LED technology, this indicator lamp boasts high brightness, long lifespan, and low power consumption, making it an ideal replacement for traditional incandescent and neon lamps. Its compact size and lightweight design enhance its versatility, while its robust polycarbonate lampshade ensures excellent anti-surge performance. The AD22 series is celebrated for its reliability and aesthetic appeal, making it a preferred choice among users. With a protection grade of IP40, it can also be upgraded to IP67 for enhanced durability in challenging environments.
Specifications
| Feature | Details |
|---|---|
| Voltage of Working Frequency | 2.5kV (AC valid value), 1 min |
| Insulated Resistance | ≥2MΩ |
| Voltage Wave Allowed by AC Indicator | ±20% |
| Continual Working Life | ≥30000h |
| Brightness | ≥60cd/m² |
| Index of Leakage CT1 | ≥100 |
| Protection Grade | IP40 (upgradable to IP67) |
| Using Frequency |

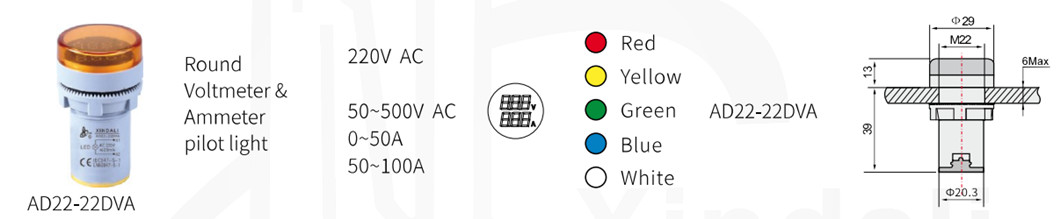

Product Show
