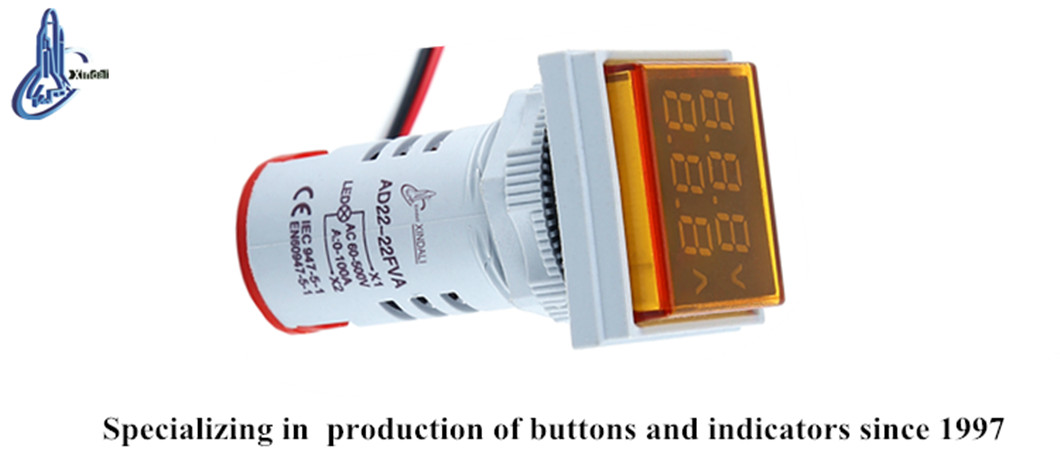

AD22-22FVA Xindali 22mm 100A 50~500V AC Square LED Indicator Digital Voltmeter Ammeter
Inquire NowDescription
The AD22-22FVA by Xindali is a versatile 22mm digital voltmeter and ammeter, designed to provide precise voltage and current measurements in AC systems ranging from 50 to 500V. This sophisticated indicator is equipped with a high-brightness LED light source, ensuring excellent visibility and long operational life. The unit’s compact size and lightweight design make it a perfect replacement for traditional incandescent and neon indicators. With an array of features including high reliability, attractive aesthetics, and meticulous craftsmanship, the AD22 series is highly praised by users across various industries. It is built to meet international standards with a polycarbonate lampshade that offers superior anti-surge performance, making it both safe and user-friendly.
Specifications
| Feature | Details |
|---|---|
| Working Voltage Range | 50~500V AC |
| Current Rating | 100A |
| Voltage of Working Frequency | 2.5kV (AC valid value), 1 min |
| Insulated Resistance | ≥2MΩ |
| Allowed Voltage Wave | ±20% |
| Continual Working Life | ≥30,000 hours |
| Brightness | ≥60 cd/m² |
| Index of Leakage CT1 | ≥100 |
| Protection Grade | IP40 (up to IP67 available) |
| Using Frequency | Not specified |
Additional Information
- High reliability and beautiful design.
- Safe and convenient bolt-type connector.
- Suitable for various industrial applications.
